TRACOPOWER 2.2 μH 4.8 A Common Mode Choke 25 mΩ

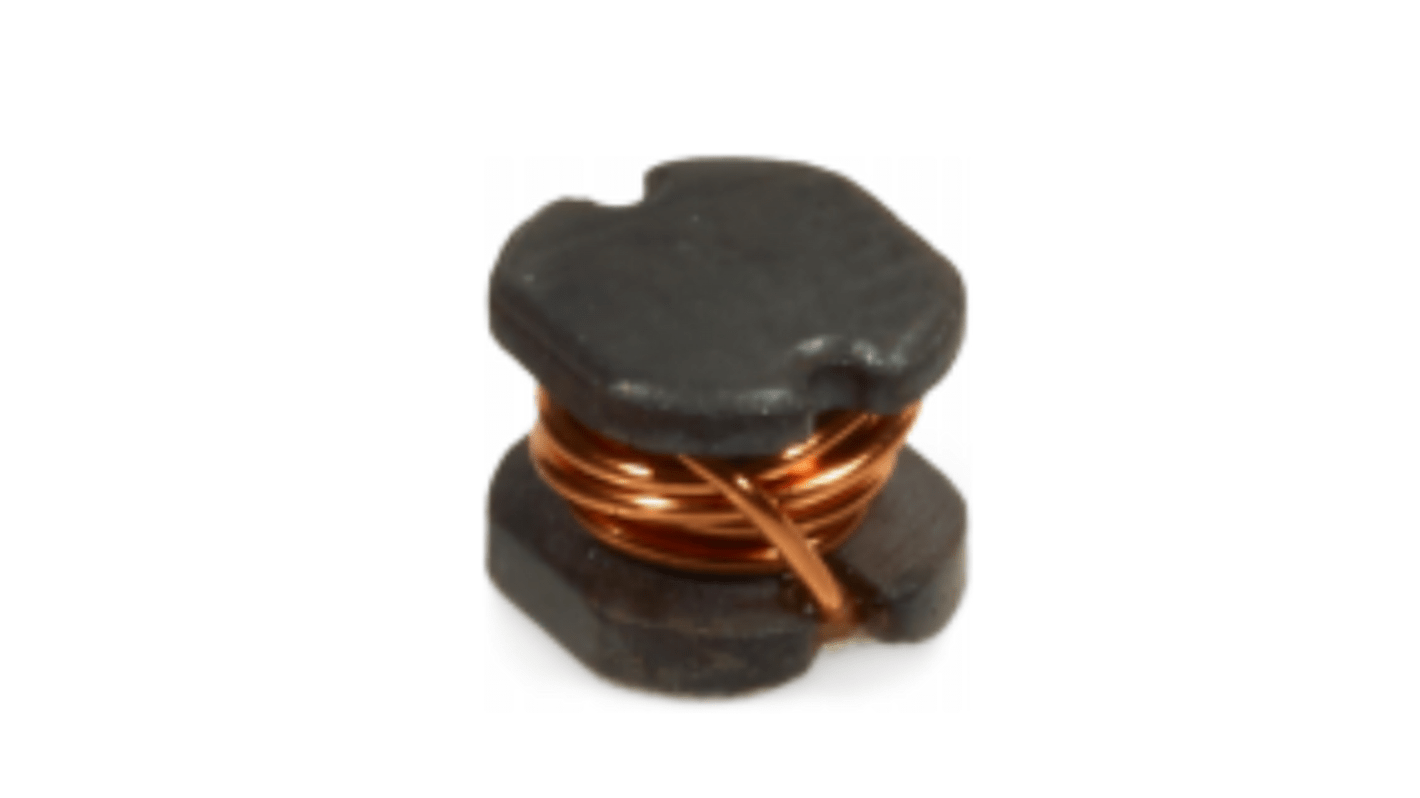

This image is representative of the product range

View all Common Mode Chokes

Subtotal (1 unit)*

MYR16.27

Add to Basket
Select or type quantity
In Stock
  • 3 unit(s) ready to ship from another location
  • Plus 45 unit(s) shipping from 11 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
1 +MYR16.27

*price indicative

RS Stock No.:
249-6697
Mfr. Part No.:
TCK-059
Manufacturer:
TRACOPOWER
Find similar products by selecting one or more attributes.
Select all

Brand

TRACOPOWER

Product Type

Common Mode Choke

Inductance

2.2μH

Maximum DC Current

4.8A

Series

TCK

Impedance

25mΩ

Test Frequency

1kHz

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

125°C

Automotive Standard

No

Inductance Tolerance

±20 %

Standards/Approvals

No

Height

4.5mm

Length

5.2mm

Maximum DC Resistance

25mΩ

RoHS Status: Exempt

The TRACOPOWER TCK-059 is a common mode choke for use with Traco isolated DC-DC converters.

Inductance 2.2 μH ±20% (at 1 kHz / 250 mV)

Impedance (DCR) 25 mOhm max

Rated current 4.8 A max

Operating temperature -40°C to +125°C
