Schneider Electric 1-Axis Joystick, IP66, 250 V ac, 13 V dc, 3A
- RS Stock No.:
- 212-4850
- Mfr. Part No.:
- XD2GA8231
- Manufacturer:
- Schneider Electric
Subtotal (1 unit)*
MYR848.56
FREE delivery for orders over RM 500.00
Temporarily out of stock
- Shipping from 11 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR848.56 |
*price indicative
Our Better World range features products that make it easy for you to make a greener product choice you can trust.
- RS Stock No.:
- 212-4850
- Mfr. Part No.:
- XD2GA8231
- Manufacturer:
- Schneider Electric
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Number of Axes | 1 | |
| Product Type | Joystick | |
| Series | Harmony | |
| IP Rating | IP66 | |
| Contact AC Voltage | 250V ac | |
| Switch Contact Current | 3A | |
| Contact Configuration | SPDT | |
| Contact Material | Metal | |
| Terminal Type | Screw Clamp | |
| Contact DC Voltage | 13V dc | |
| Mechanical Life | 1000000Cycles | |
| Standards/Approvals | IEC 60529, EN/IEC 60947-5-1, CSA LROS (Lloyds register of shipping) | |
| Better World Claim | Repairable by the End User | |
| Better World Product | Yes | |
| Maximum Operating Temperature | 70°C | |
| Minimum Operating Temperature | -25°C | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Number of Axes 1 | ||
Product Type Joystick | ||
Series Harmony | ||
IP Rating IP66 | ||
Contact AC Voltage 250V ac | ||
Switch Contact Current 3A | ||
Contact Configuration SPDT | ||
Contact Material Metal | ||
Terminal Type Screw Clamp | ||
Contact DC Voltage 13V dc | ||
Mechanical Life 1000000Cycles | ||
Standards/Approvals IEC 60529, EN/IEC 60947-5-1, CSA LROS (Lloyds register of shipping) | ||
Better World Claim Repairable by the End User | ||
Better World Product Yes | ||
Maximum Operating Temperature 70°C | ||
Minimum Operating Temperature -25°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR

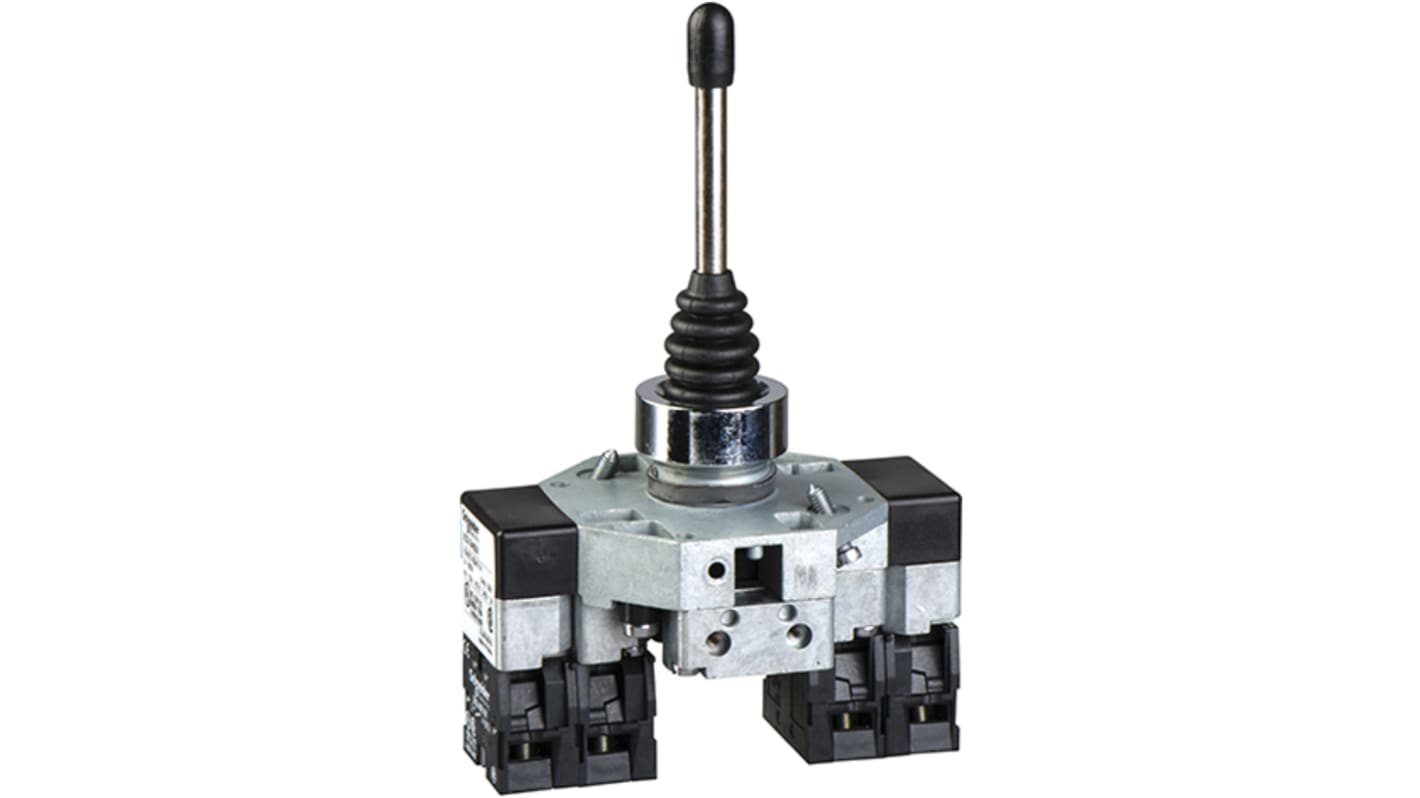

The Schneider Electric XD2GA8231 is a joystick controller Ø22 mm 2-directions operation, 2NO Contacts type , 2 per direction.
Chromium plated metal material
IP degree of protection IP66
