Select all	Attribute	Value
	Brand	Wurth Elektronik
	Diode Configuration	Single
	Maximum Clamping Voltage	30V
	Mounting Type	Surface Mount
	Package Type	0603 (1608M)
	Maximum Reverse Stand-off Voltage	12V
	Pin Count	2
	ESD Protection	Yes
	Number of Elements per Chip	1
	Minimum Operating Temperature	-40 °C
	Dimensions	1.6 x 0.8 x 0.9mm
	Maximum Operating Temperature	+85 °C
	Maximum Reverse Leakage Current	10nA
	Height	0.9mm
	Length	1.6mm
	Width	0.8mm
	Test Current	1A

	Select all
	Brand Wurth Elektronik
	Diode Configuration Single
	Maximum Clamping Voltage 30V
	Mounting Type Surface Mount
	Package Type 0603 (1608M)
	Maximum Reverse Stand-off Voltage 12V
	Pin Count 2
	ESD Protection Yes
	Number of Elements per Chip 1
	Minimum Operating Temperature -40 °C
	Dimensions 1.6 x 0.8 x 0.9mm
	Maximum Operating Temperature +85 °C
	Maximum Reverse Leakage Current 10nA
	Height 0.9mm
	Length 1.6mm
	Width 0.8mm
	Test Current 1A

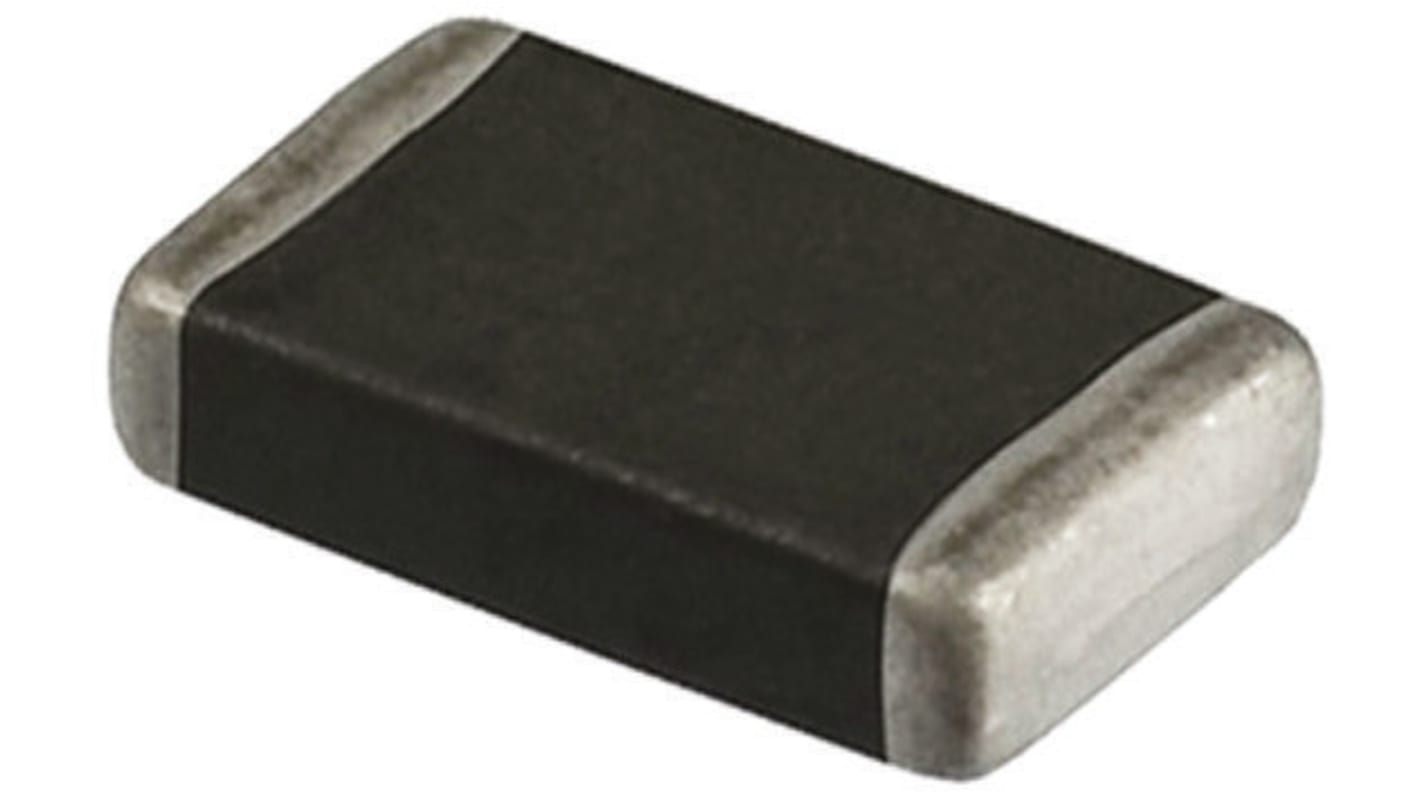

Wurth Elektronik 82306120029, TVS Diode, 2-Pin 0603 (1608M)

FREE delivery for orders over MYR500.00

Sorry, we couldn't display prices at this moment. Please try refreshing the page.

ESD Protectors, Wurth Elektronik

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
