Units	Per Unit	Per Pack**
5 - 25	MYR5.196	MYR25.98
30 - 55	MYR5.086	MYR25.43
60 +	MYR4.934	MYR24.67

Select all	Attribute	Value
	Brand	Nidec Components
	Contact Configuration	SPST
	Mounting Type	Surface Mount
	Contact Current Rating	100mA
	Terminal Type	Gull Wing
	Actuator Type	Slide
	Length	10mm
	Width	3.95mm
	Depth	4.7mm
	Dimensions	10 x 3.95 x 4.7mm
	Contact Resistance	50mΩ
	Voltage Rating	6V
	Mechanical Life	1000Operations
	Operating Temperature Range	-40 → +85°C
	Contact Material	Copper Alloy, Gold Plated
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	+85°C

	Select all
	Brand Nidec Components
	Contact Configuration SPST
	Mounting Type Surface Mount
	Contact Current Rating 100mA
	Terminal Type Gull Wing
	Actuator Type Slide
	Length 10mm
	Width 3.95mm
	Depth 4.7mm
	Dimensions 10 x 3.95 x 4.7mm
	Contact Resistance 50mΩ
	Voltage Rating 6V
	Mechanical Life 1000Operations
	Operating Temperature Range -40 → +85°C
	Contact Material Copper Alloy, Gold Plated
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature +85°C

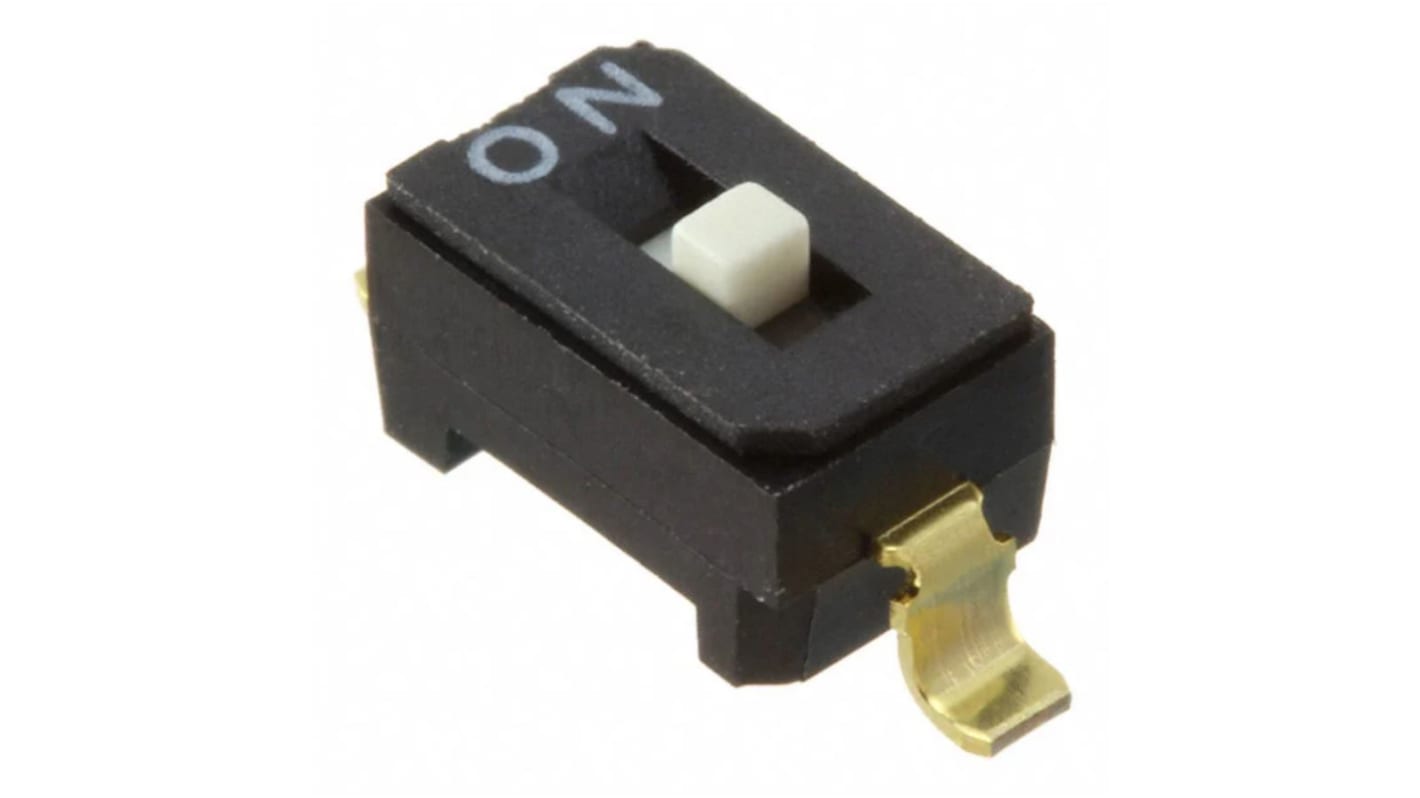

Nidec Components Surface Mount Slide Switch SPST 100mA Slide
