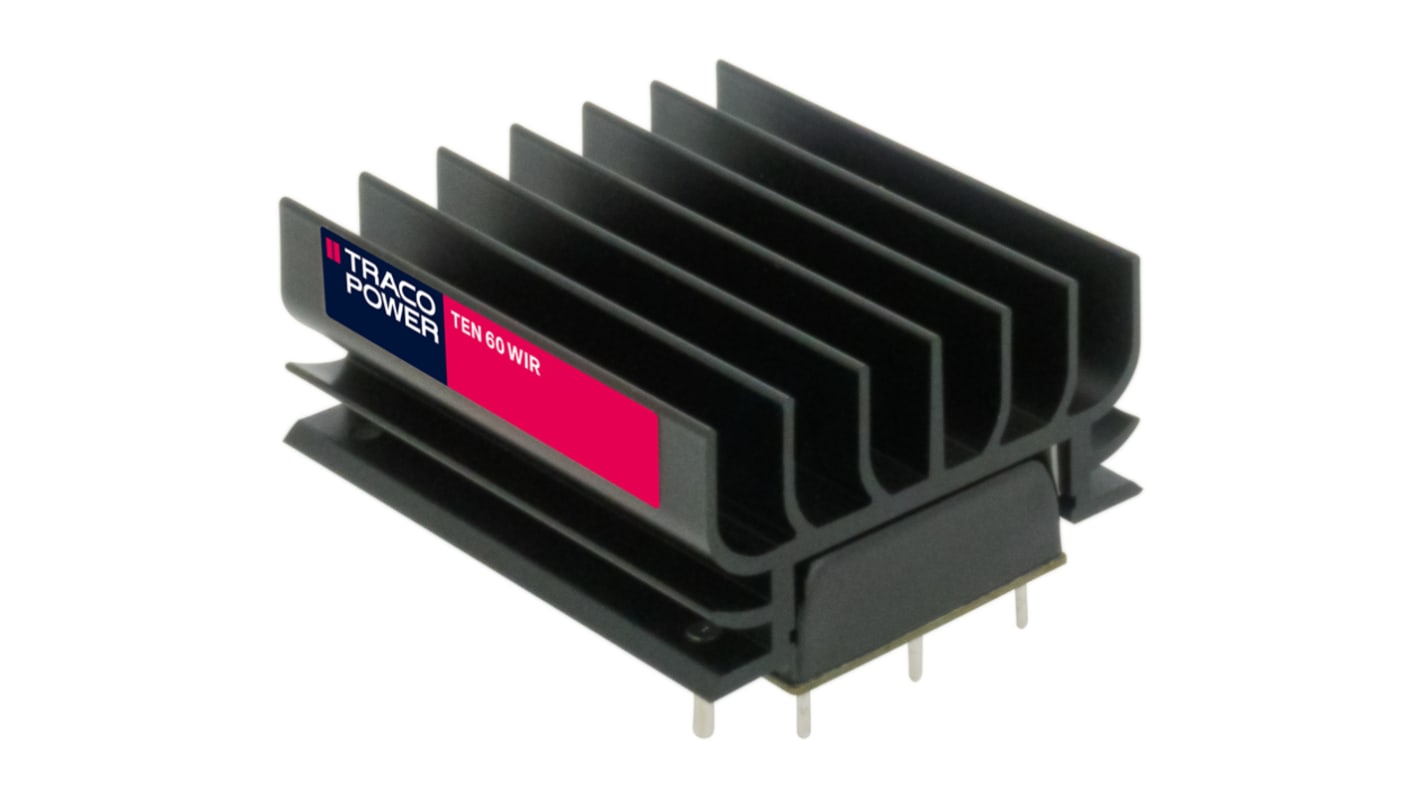

TRACOPOWER TEP 60WIR DC-DC Converter, 15V dc/ 4A Output, 36 → 160 V dc Input, 60W, Through Hole, +85°C Max Temp

The TRACO POWER TEN 60WIR is a ruggedized 60 Watt railway approved DC/DC converter series with a wide 4:1 input voltage range and increased resistance against electromagnetic interference, shock/vibration and thermal shock. The standard version comes with a preassembled heatsink which was specifically designed for this 2” x 1” metal package converter. Together with a high efficiency of up to 92% this gives the converter an effective operating temperature range of -40° to +70°C without derating.

Operating temperature range –40°C to +90°C
I/O-isolation 3’000 VDC
Efficiency 92%
Under voltage lock out circuit
Adjustable output voltage and Remote On/Off
EN 50155 and EN 61373 approval for railway applications
Qualification for fire behaviour according to EN 45545-2

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
