RS PRO AA Battery Holder Coil Spring
- RS Stock No.:
- 611-9576
- Manufacturer:
- RS PRO
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
MYR5.86
FREE delivery for orders over RM 150.00
In Stock
- 4,444 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 4 | MYR5.86 |
| 5 + | MYR4.82 |
*price indicative
Sponsored
- RS Stock No.:
- 611-9576
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Compatible Battery Size | AA | |
| Product Type | Battery Holder | |
| Sub Type | Battery Holder | |
| Number of Cells | 1 | |
| Mount Type | PCB | |
| Body Material | Polypropylene | |
| Termination Type | Coil Spring | |
| Diameter | 13.85mm | |
| Length | 57.2mm | |
| Height | 14.8mm | |
| Standards/Approvals | No | |
| Width | 16.4mm | |
| Series | SN | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Compatible Battery Size AA | ||
Product Type Battery Holder | ||
Sub Type Battery Holder | ||
Number of Cells 1 | ||
Mount Type PCB | ||
Body Material Polypropylene | ||
Termination Type Coil Spring | ||
Diameter 13.85mm | ||
Length 57.2mm | ||
Height 14.8mm | ||
Standards/Approvals No | ||
Width 16.4mm | ||
Series SN | ||
- COO (Country of Origin):
- TW

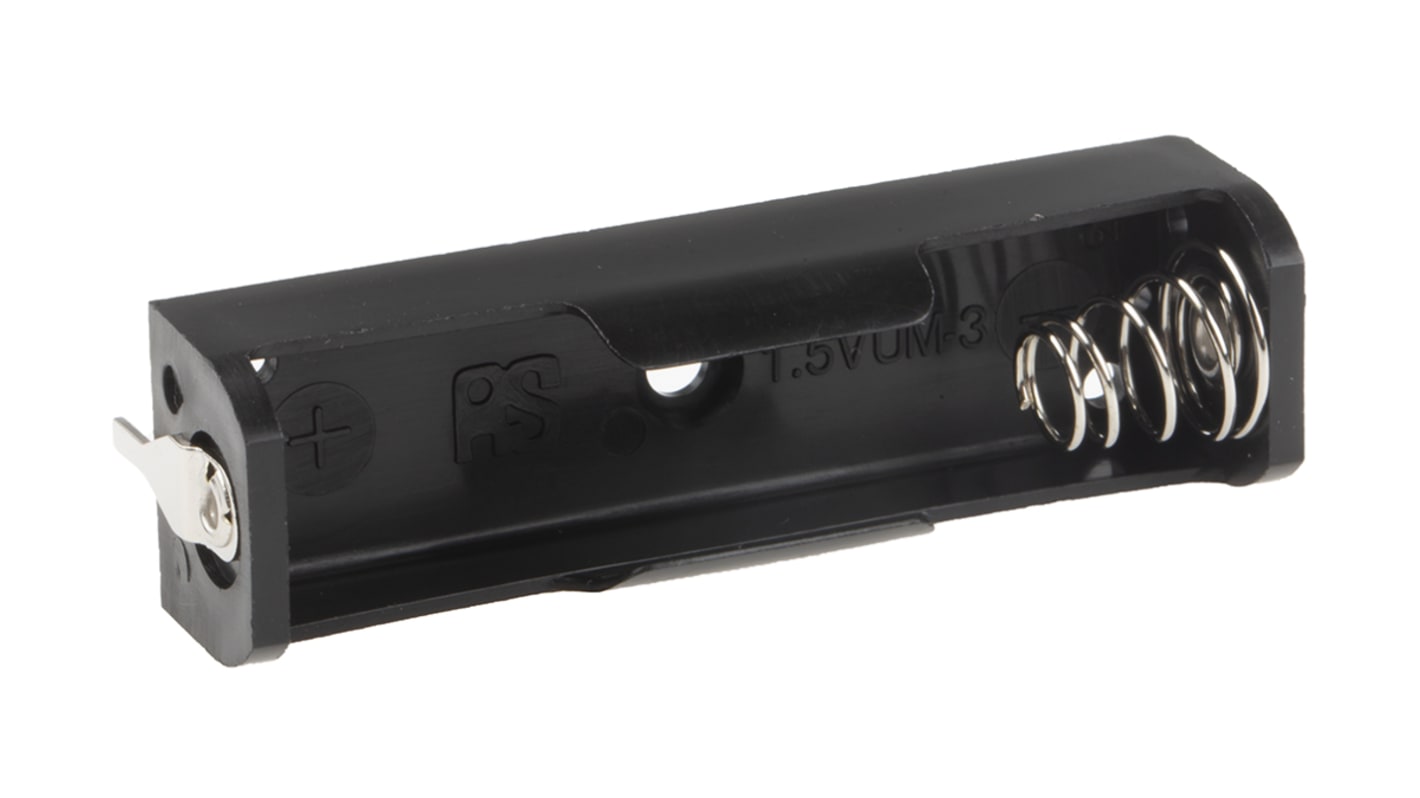

RS PRO AA Battery Holder, Coil Spring Contact
This RS PRO AA battery holder has a nickel-plated steel coiled spring that presses against the negative cell terminal to make electrical contact. It can hold a single AA cell.
The primary function of a battery holder is to hold cells safely and securely fixed in place while powering a device. It's designed to be either inserted into or attached to battery-operated equipment. This holder comes with two 1.7 mm wide nickel-plated solder lugs, which can be attached to printed circuit boards or other terminals. It also has a pre-drilled 3.4 mm hole on the base, so it can be bolted to a circuit board.
The black polypropylene (PP) holder measures 52.7 mm by 16.4 mm by 14.8 mm. It has a high resistance to chemicals and can be used in industrial environments at temperatures of up to +82°C.
Features and Benefits
• Holds 1 x AA battery
• 2 x 1.7 mm lugs for mounting to a printed circuit board
• One mounting hole
• Dimensions of 57.2 mm x 16.4 mm x 14.8 mm
• Operating temperature of up to +82°C
• Coil spring terminal contact
• Black polypropylene (PP) body offers high resistance to chemicals
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
