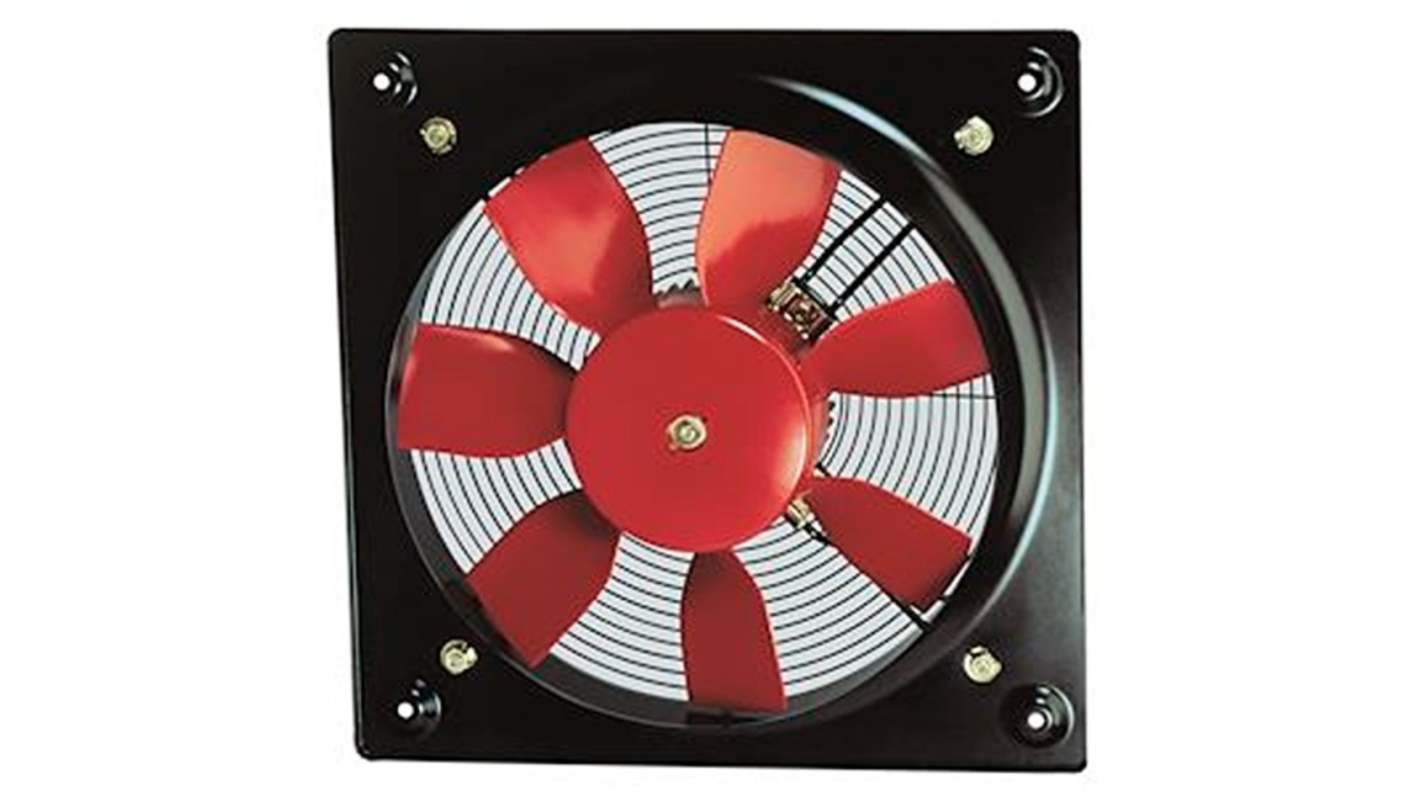

Soler&Palau Compact Series Helix Fan, 400V, 4790 m³/h, 250 W, 1 A Max, IP65 400 mm, 500mm, 129 mm
- RS Stock No.:
- 315-629
- Mfr. Part No.:
- 010260 - HCFT/4-400/H
- Manufacturer:
- Soler&Palau
Subtotal (1 unit)*
MYR5,194.30
FREE delivery for orders over RM 150.00
In Stock
- 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR5,194.30 |
*price indicative
- RS Stock No.:
- 315-629
- Mfr. Part No.:
- 010260 - HCFT/4-400/H
- Manufacturer:
- Soler&Palau
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Soler&Palau | |
| Product Type | Helix Fan | |
| Supply Voltage | 400V | |
| Power Consumption | 250W | |
| Maximum Current | 1A | |
| Air Flow | 4790m³/h | |
| Noise Level | 93dB | |
| External Depth | 129mm | |
| Fan Frame Size | 400 x 500 x 129 mm | |
| Width | 500mm | |
| Depth | 129mm | |
| Standards/Approvals | No | |
| Height | 400mm | |
| Series | Compact | |
| IP Rating | IP65 | |
| Select all | ||
|---|---|---|
Brand Soler&Palau | ||
Product Type Helix Fan | ||
Supply Voltage 400V | ||
Power Consumption 250W | ||
Maximum Current 1A | ||
Air Flow 4790m³/h | ||
Noise Level 93dB | ||
External Depth 129mm | ||
Fan Frame Size 400 x 500 x 129 mm | ||
Width 500mm | ||
Depth 129mm | ||
Standards/Approvals No | ||
Height 400mm | ||
Series Compact | ||
IP Rating IP65 | ||
- COO (Country of Origin):
- ES
The UNELVENT Wall Mounted Helical Fans are designed for efficient ventilation in compact spaces. They feature high corrosion resistance, robust construction and flexible mounting options, making them suitable for various industrial and commercial applications.
Integrated thermal protection
IP65 protection and Class F insulation
Galvanized steel square plate stamped in one piece
