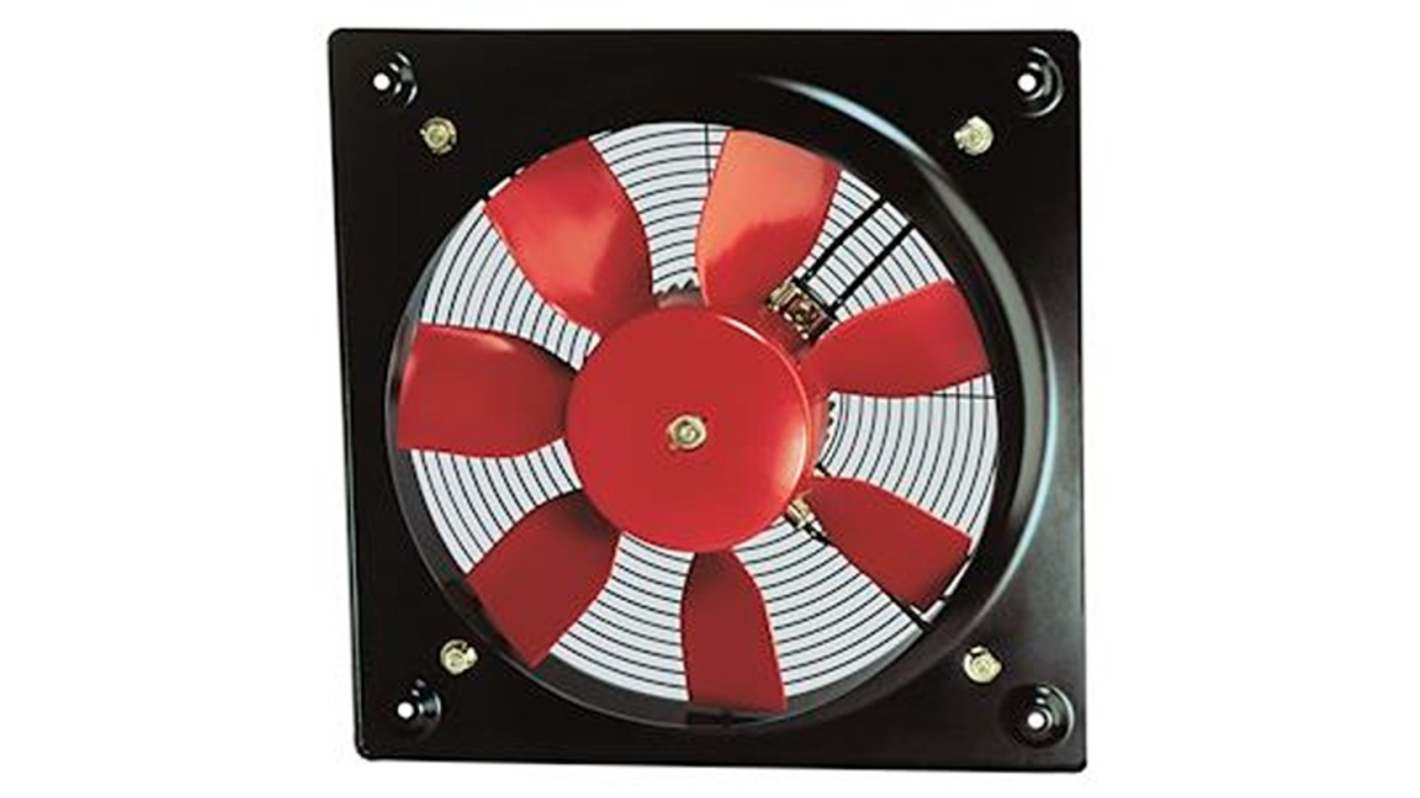

Soler&Palau Compact Series Helix Fan, 400V, 2170 m³/h, 124 W, 500 mA Max, IP65 315 mm, 400mm, 122 mm
- RS Stock No.:
- 315-626
- Mfr. Part No.:
- 010258 - HCFT/4-315/H
- Manufacturer:
- Soler&Palau
Subtotal (1 unit)*
MYR4,223.77
FREE delivery for orders over RM 150.00
In Stock
- 1 unit(s) ready to ship from another location
- Plus 2 unit(s) shipping from 14 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR4,223.77 |
*price indicative
- RS Stock No.:
- 315-626
- Mfr. Part No.:
- 010258 - HCFT/4-315/H
- Manufacturer:
- Soler&Palau
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Soler&Palau | |
| Product Type | Helix Fan | |
| Supply Voltage | 400V | |
| Power Consumption | 124W | |
| Maximum Current | 500mA | |
| Air Flow | 2170m³/h | |
| Noise Level | 93dB | |
| External Depth | 122mm | |
| Fan Frame Size | 315 x 400 x 122 mm | |
| Depth | 122mm | |
| Height | 315mm | |
| Series | Compact | |
| Width | 400mm | |
| Standards/Approvals | No | |
| IP Rating | IP65 | |
| Select all | ||
|---|---|---|
Brand Soler&Palau | ||
Product Type Helix Fan | ||
Supply Voltage 400V | ||
Power Consumption 124W | ||
Maximum Current 500mA | ||
Air Flow 2170m³/h | ||
Noise Level 93dB | ||
External Depth 122mm | ||
Fan Frame Size 315 x 400 x 122 mm | ||
Depth 122mm | ||
Height 315mm | ||
Series Compact | ||
Width 400mm | ||
Standards/Approvals No | ||
IP Rating IP65 | ||
- COO (Country of Origin):
- ES
The UNELVENT Wall Mounted Helical Fans are designed for efficient ventilation in compact spaces. They feature high corrosion resistance, robust construction and flexible mounting options, making them suitable for various industrial and commercial applications.
Integrated thermal protection
IP65 protection and Class F insulation
Galvanized steel square plate stamped in one piece
