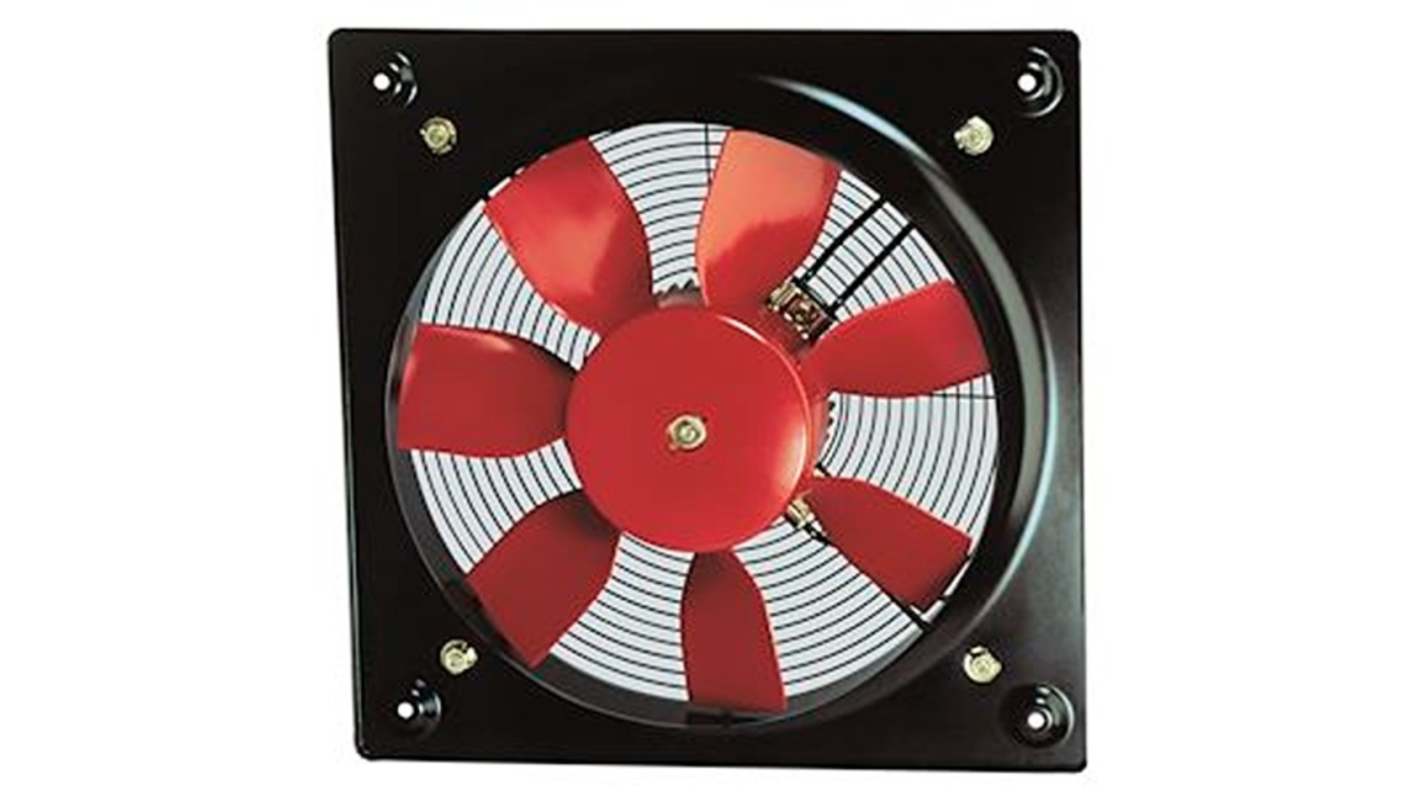

Soler&Palau Helix Fan, 400V, 1110 m³/h, 73 W, 300 mA Max 250 mm, 315mm, 122 mm
- RS Stock No.:
- 315-625
- Mfr. Part No.:
- 014157 - HCFT/4-250/H
- Manufacturer:
- Soler&Palau
Subtotal (1 unit)*
MYR3,689.98
FREE delivery for orders over RM 150.00
Stocked by manufacturer
- Ready to ship from 03 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR3,689.98 |
*price indicative
- RS Stock No.:
- 315-625
- Mfr. Part No.:
- 014157 - HCFT/4-250/H
- Manufacturer:
- Soler&Palau
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Soler&Palau | |
| Product Type | Helix Fan | |
| Supply Voltage | 400V | |
| Power Consumption | 73W | |
| Maximum Current | 300mA | |
| Air Flow | 1110m³/h | |
| External Depth | 122mm | |
| Fan Frame Size | 250 x 315 x 122 mm | |
| Depth | 122mm | |
| Height | 250mm | |
| Standards/Approvals | No | |
| Width | 315mm | |
| Select all | ||
|---|---|---|
Brand Soler&Palau | ||
Product Type Helix Fan | ||
Supply Voltage 400V | ||
Power Consumption 73W | ||
Maximum Current 300mA | ||
Air Flow 1110m³/h | ||
External Depth 122mm | ||
Fan Frame Size 250 x 315 x 122 mm | ||
Depth 122mm | ||
Height 250mm | ||
Standards/Approvals No | ||
Width 315mm | ||
- COO (Country of Origin):
- ES
The UNELVENT Wall Mounted Helical Fans are designed for efficient ventilation in compact spaces. They feature high corrosion resistance, robust construction and flexible mounting options, making them suitable for various industrial and commercial applications.
Integrated thermal protection
IP65 protection and Class F insulation
Galvanized steel square plate stamped in one piece
