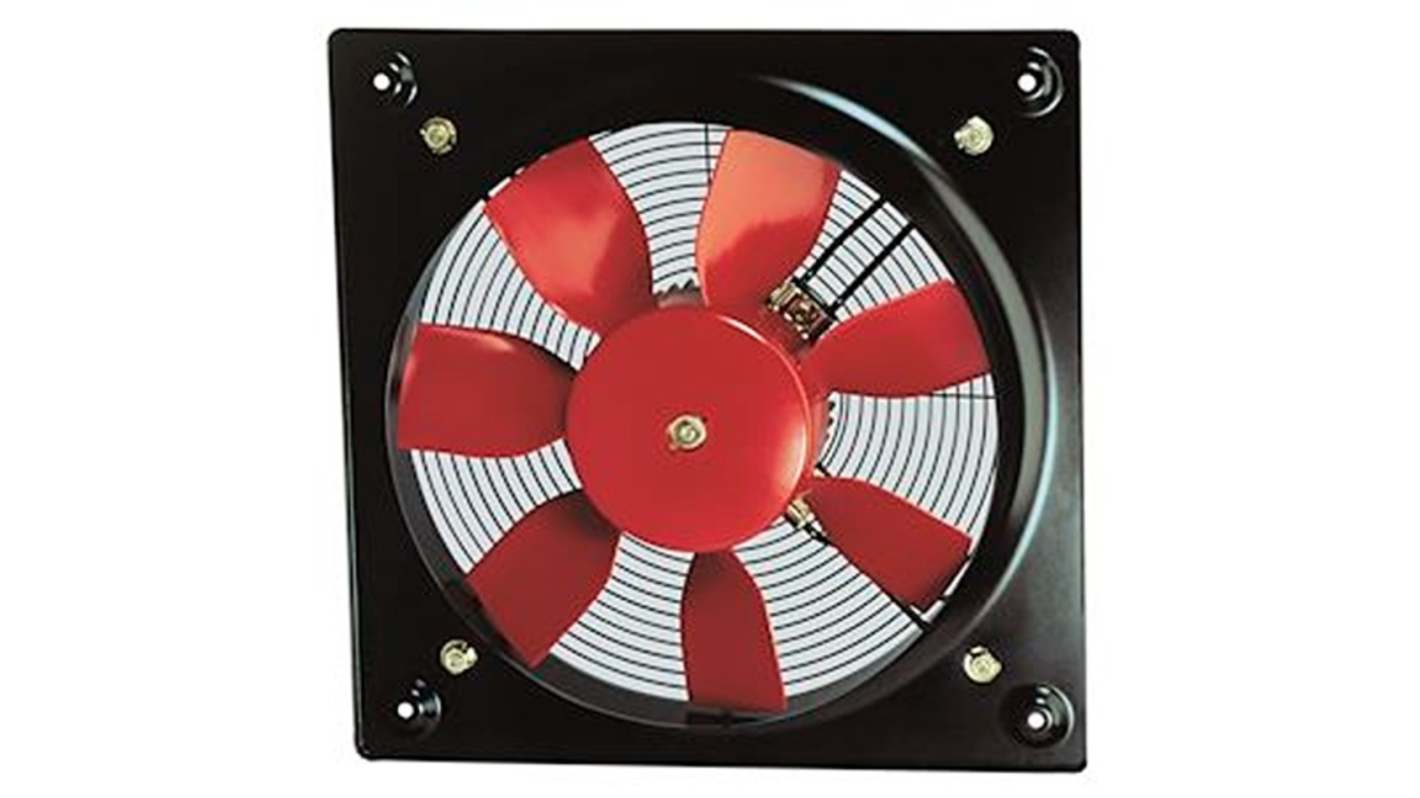

Soler&Palau Helix Fan, 400V, 17900 m³/h, 1.581 W, 5 A Max, IP65 630 mm, 800mm, 218 mm
- RS Stock No.:
- 315-635
- Mfr. Part No.:
- 010268 - HCFT/4-630/H
- Manufacturer:
- Soler&Palau
Subtotal (1 unit)*
MYR10,331.66
FREE delivery for orders over RM 150.00
Stocked by manufacturer
- Ready to ship from 09 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR10,331.66 |
*price indicative
- RS Stock No.:
- 315-635
- Mfr. Part No.:
- 010268 - HCFT/4-630/H
- Manufacturer:
- Soler&Palau
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Soler&Palau | |
| Product Type | Helix Fan | |
| Supply Voltage | 400V | |
| Power Consumption | 1.581W | |
| Maximum Current | 5A | |
| Air Flow | 17900m³/h | |
| External Depth | 218mm | |
| Fan Frame Size | 630 x 800 x 218 mm | |
| Standards/Approvals | No | |
| Width | 800mm | |
| Height | 630mm | |
| Depth | 218mm | |
| IP Rating | IP65 | |
| Select all | ||
|---|---|---|
Brand Soler&Palau | ||
Product Type Helix Fan | ||
Supply Voltage 400V | ||
Power Consumption 1.581W | ||
Maximum Current 5A | ||
Air Flow 17900m³/h | ||
External Depth 218mm | ||
Fan Frame Size 630 x 800 x 218 mm | ||
Standards/Approvals No | ||
Width 800mm | ||
Height 630mm | ||
Depth 218mm | ||
IP Rating IP65 | ||
- COO (Country of Origin):
- ES
The UNELVENT Wall Mounted Helical Fans are designed for efficient ventilation in compact spaces. They feature high corrosion resistance, robust construction and flexible mounting options, making them suitable for various industrial and commercial applications.
Integrated thermal protection
IP65 protection and Class F insulation
Galvanized steel square plate stamped in one piece
