Aim-TTi TGP3122 Pulse Generator, 1 mHz min, 25 (Double Pulse) MHz, 50 (Pulse) MHz max

RS Stock No.:: 112-0942
Mfr. Part No.:: TGP3122
Manufacturer:: Aim-TTi

Aim-TTi TGP3122 Pulse Generator, 1 mHz min, 25 (Double Pulse) MHz, 50 (Pulse) MHz max

Subtotal (1 unit)**

MYR11,595.22

1 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over MYR500.00

Real time qty checker

Units	Per Unit
1 +	MYR11,595.22

**price indicative

RS Stock No.:: 112-0942
Mfr. Part No.:: TGP3122
Manufacturer:: Aim-TTi

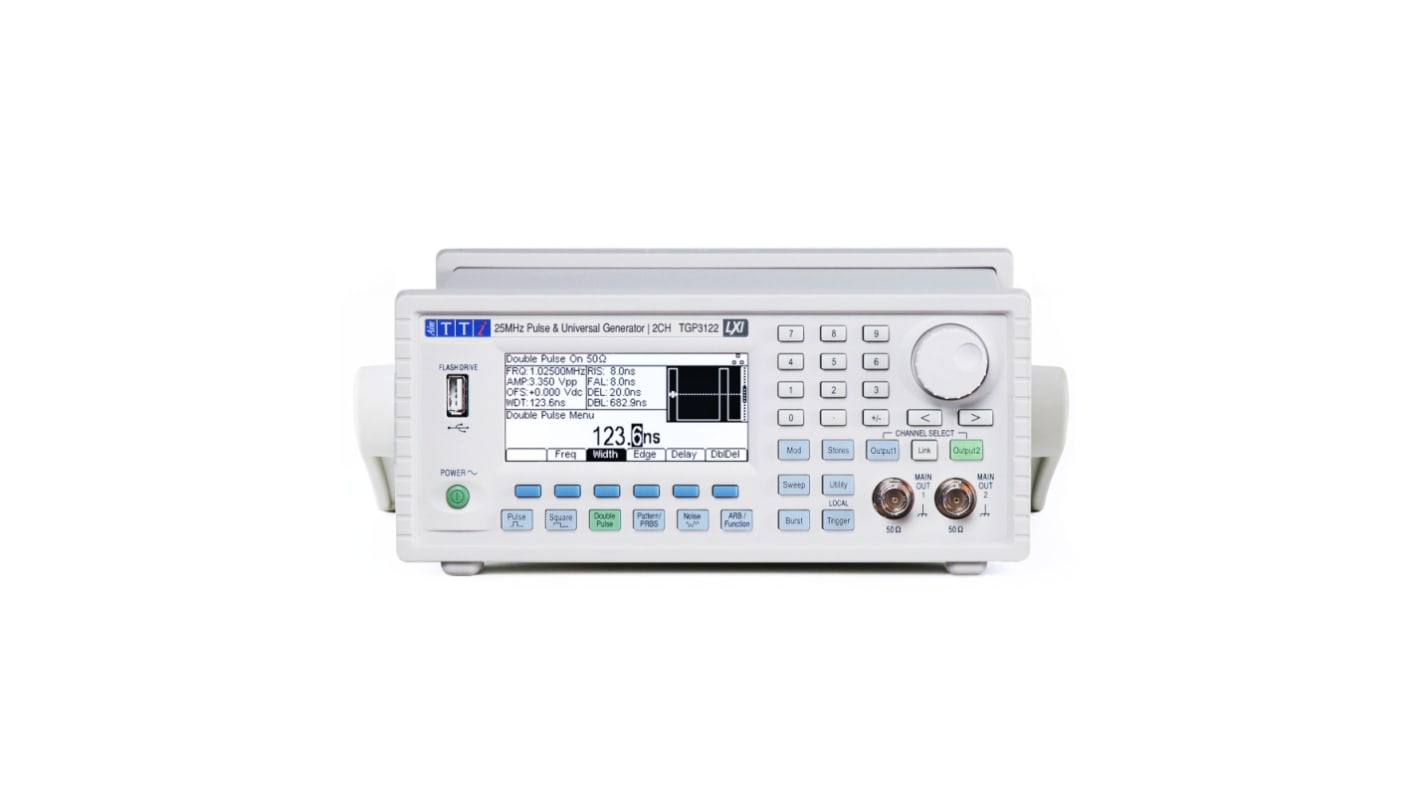

Aim-TTi Pulse Generator, 10 kO Input Impedance, 2 Channels - TGP3122

This pulse generator by Aim-TTi offers precise and adjustable output amplitude, making it ideal for a wide range of applications across different industries. It features a compact bench-top design and advanced double pulse capabilities, ensuring accurate waveform generation for various testing requirements. With a focus on reliability and performance, this generator is a valuable tool for professionals seeking high-quality waveform generation solutions.

Features & Benefits

• The output amplitude can be adjusted to precisely control the strength of the generated waveforms
• This device is capable of producing two identical pulses in each cycle, with adjustable delays between them
• The feature of Function/Arbitrary Waveform Generation offers the flexibility to generate a wide variety of waveforms for different applications
• Various modulation options are provided for adjusting the amplitude, frequency, and phase of the waveforms
• It covers a wide frequency range, making it suitable for testing in various scenarios
• Low jitter operation is ensured to maintain accurate waveform timings

Applications

• Ideal for stress testing and signal characterisation in electronic designs
• Can be used for simulating clock frequencies with glitch-free performance
• Enables the creation of custom data patterns for testing serial communication systems
• Useful for conditioning pulse signals in various electronic applications

Can it generate custom pulse patterns?

Yes, it is capable of generating custom pulse patterns, allowing users to create specific waveforms tailored to their testing needs.

Will it support external modulation sources?

Yes, it supports external modulation sources, providing flexibility for users to integrate additional modulation capabilities into their testing setups.

Is it compatible with common LabVIEW software?

Yes, it is compatible with common LabVIEW software, facilitating seamless integration and control for users familiar with LabVIEW environments.

Will it provide precise amplitude control for output waveforms?

Yes, it offers precise amplitude control for output waveforms, ensuring accuracy and consistency in signal generation for various testing applications.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Aim-TTi
	Maximum Frequency	25 (Double Pulse) MHz, 50 (Pulse) MHz
	Minimum Frequency	1 mHz
	Maximum Pulse Width	499.99999999 (Double Pulse) s, 999.99999999 (Pulse) s
	Minimum Pulse Width	10ns
	Modes	Burst, Double Pulse, Function/Arbitrary, Modulation, Noise, Pattern/PBRS, Pulse, Square, Sweep, Triggered
	Maximum Pulse Delay	999.99999996 (Double Pulse) s, 999.99999998 (Pulse) s
	Minimum Pulse Delay	0ns
	Adjustable Output Amplitude	Yes
	Jitter	<30%
	Rise - Fall Time	5 ns → 399.999999989 s (Double Pulse), 5 ns → 799.999999989 s (Pulse)
	Input Impedance	10 kΩ
	Connector Type	USB
	Interface Type	GPIB, LAN, LXI, Remote, USB 2.0, USB Flash Drive
	Dimensions	269 x 213.5 x 86.5 (Rack Mount) mm, 295 x 250 x 97 (Bench Top Mount) mm
	Maximum Operating Temperature	+40°C
	Weight	3.2kg
	Model Number p	TGP3122
	Height	86.5 (Rack Mount) mm, 97 (Bench Top Mount) mm
	Length	269 (Rack Mount) mm, 295 (Bench Top Mount) mm
	Width	213.5 (Rack Mount) mm, 250 (Bench Top Mount) mm
	Minimum Operating Temperature	+5°C
