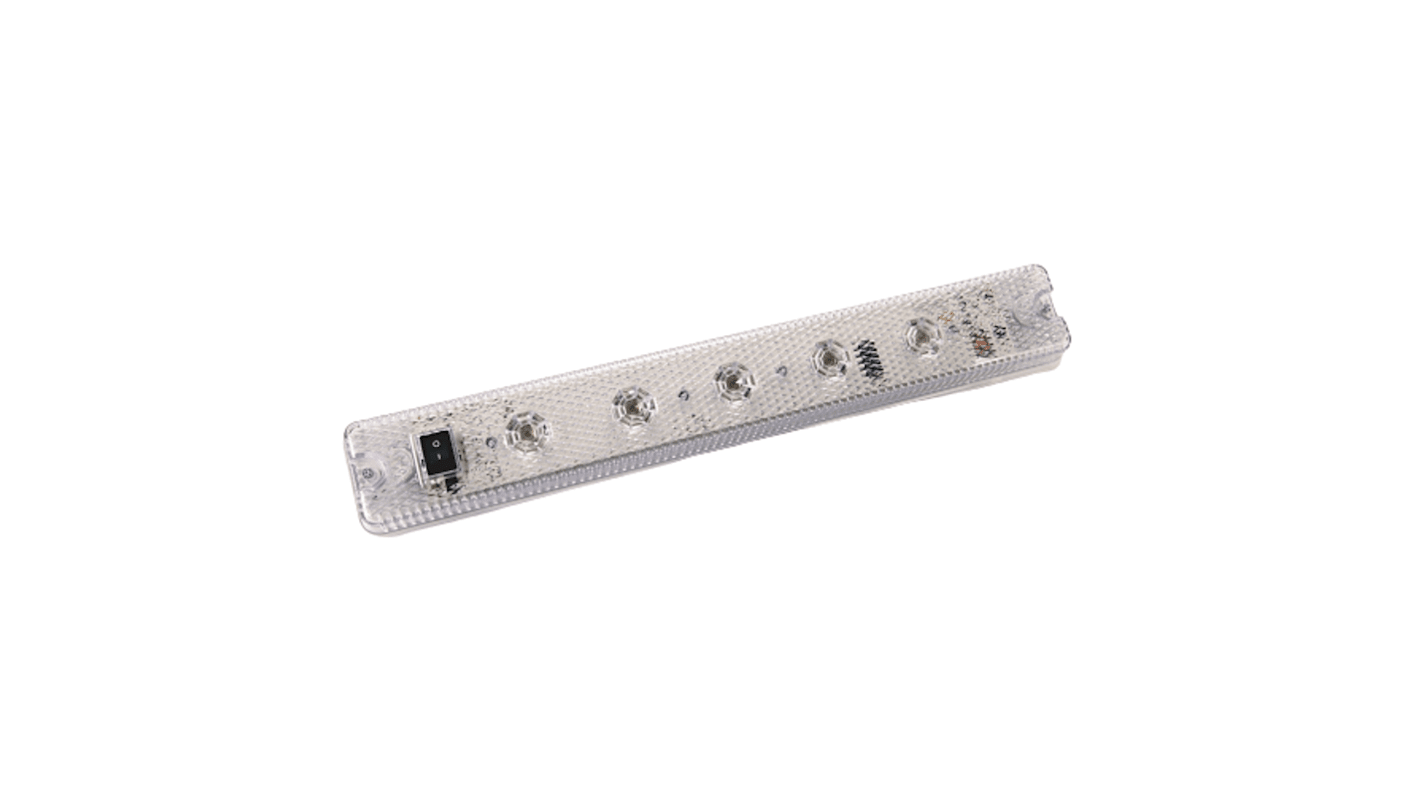

Allen Bradley LED Panel Light, White, L 19.49 in W 95mm
- RS Stock No.:
- 256-7235
- Mfr. Part No.:
- 855L-NX3
- Manufacturer:
- Allen Bradley
Subtotal (1 unit)*
MYR1,124.08
Stock information currently inaccessible - Please check back later
Units | Per Unit |
|---|---|
| 1 + | MYR1,124.08 |
*price indicative
- RS Stock No.:
- 256-7235
- Mfr. Part No.:
- 855L-NX3
- Manufacturer:
- Allen Bradley
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Allen Bradley | |
| Lamp Type | LED | |
| Product Type | LED Panel Light | |
| Length | 19.49in | |
| Luminous Flux | 470lm | |
| Width | 95mm | |
| Housing Material | ABS/Polycarbonate | |
| Colour | White | |
| Lifespan | 50000h | |
| Minimum Operating Temperature | -35°C | |
| Voltage | 240V | |
| Maximum Operating Temperature | 60°C | |
| Series | 855L | |
| IP Rating | IP66, IP65, IP44, IP40, IP54 | |
| Standards/Approvals | EN61000-6-2, EN 6100-6-3, CE, EN/IEC 60947-5-1, EN 6100-6-2, c-UL-us Listed, EN61000-6-3, UL 464, CSA C22.2 No. 14, EN/IEC 60947-1, C22.2 No. 205-17, UL 1638A, UL 464A, CSA C22.2 No. 205, UL 508 | |
| Select all | ||
|---|---|---|
Brand Allen Bradley | ||
Lamp Type LED | ||
Product Type LED Panel Light | ||
Length 19.49in | ||
Luminous Flux 470lm | ||
Width 95mm | ||
Housing Material ABS/Polycarbonate | ||
Colour White | ||
Lifespan 50000h | ||
Minimum Operating Temperature -35°C | ||
Voltage 240V | ||
Maximum Operating Temperature 60°C | ||
Series 855L | ||
IP Rating IP66, IP65, IP44, IP40, IP54 | ||
Standards/Approvals EN61000-6-2, EN 6100-6-3, CE, EN/IEC 60947-5-1, EN 6100-6-2, c-UL-us Listed, EN61000-6-3, UL 464, CSA C22.2 No. 14, EN/IEC 60947-1, C22.2 No. 205-17, UL 1638A, UL 464A, CSA C22.2 No. 205, UL 508 | ||
RoHS Status: Exempt
The Rockwell Automation provides a panel light bar is ideal for OEMs and panel builders who want to reduce the quantity of components without the loss of design reliability or functionality. These devices remove your need for a separate fluorescent lamps purchase. They can be left ON continuously due to low power consumption and minimum heat generation of modern status indicator technology.
Light Beam Angle 70
Wire Size 22 to 14 AWG
