Exsys USB 2.0 to RS232 Interface Adapter
- RS Stock No.:
- 217-913
- Distrelec Article No.:
- 303-72-557
- Mfr. Part No.:
- EX-13074HM
- Manufacturer:
- Exsys
Subtotal (1 unit)*
MYR604.83
FREE delivery for orders over RM 500.00
In Stock
- Plus 6 unit(s) shipping from 20 July 2026
- Plus 10 unit(s) shipping from 14 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR604.83 |
*price indicative
- RS Stock No.:
- 217-913
- Distrelec Article No.:
- 303-72-557
- Mfr. Part No.:
- EX-13074HM
- Manufacturer:
- Exsys
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Exsys | |
| Product Type | Interface Adapter | |
| Connector Type A | USB 2.0 | |
| Connector Type B | RS232 | |
| Mount Type | DIN Rail | |
| Minimum Operating Temperature | 32°F | |
| Maximum Operating Temperature | 131°F | |
| Height | 23mm | |
| Standards/Approvals | CE, RoHS | |
| Depth | 58mm | |
| Weight | 520g | |
| Width | 160mm | |
| Select all | ||
|---|---|---|
Brand Exsys | ||
Product Type Interface Adapter | ||
Connector Type A USB 2.0 | ||
Connector Type B RS232 | ||
Mount Type DIN Rail | ||
Minimum Operating Temperature 32°F | ||
Maximum Operating Temperature 131°F | ||
Height 23mm | ||
Standards/Approvals CE, RoHS | ||
Depth 58mm | ||
Weight 520g | ||
Width 160mm | ||
- COO (Country of Origin):
- CN

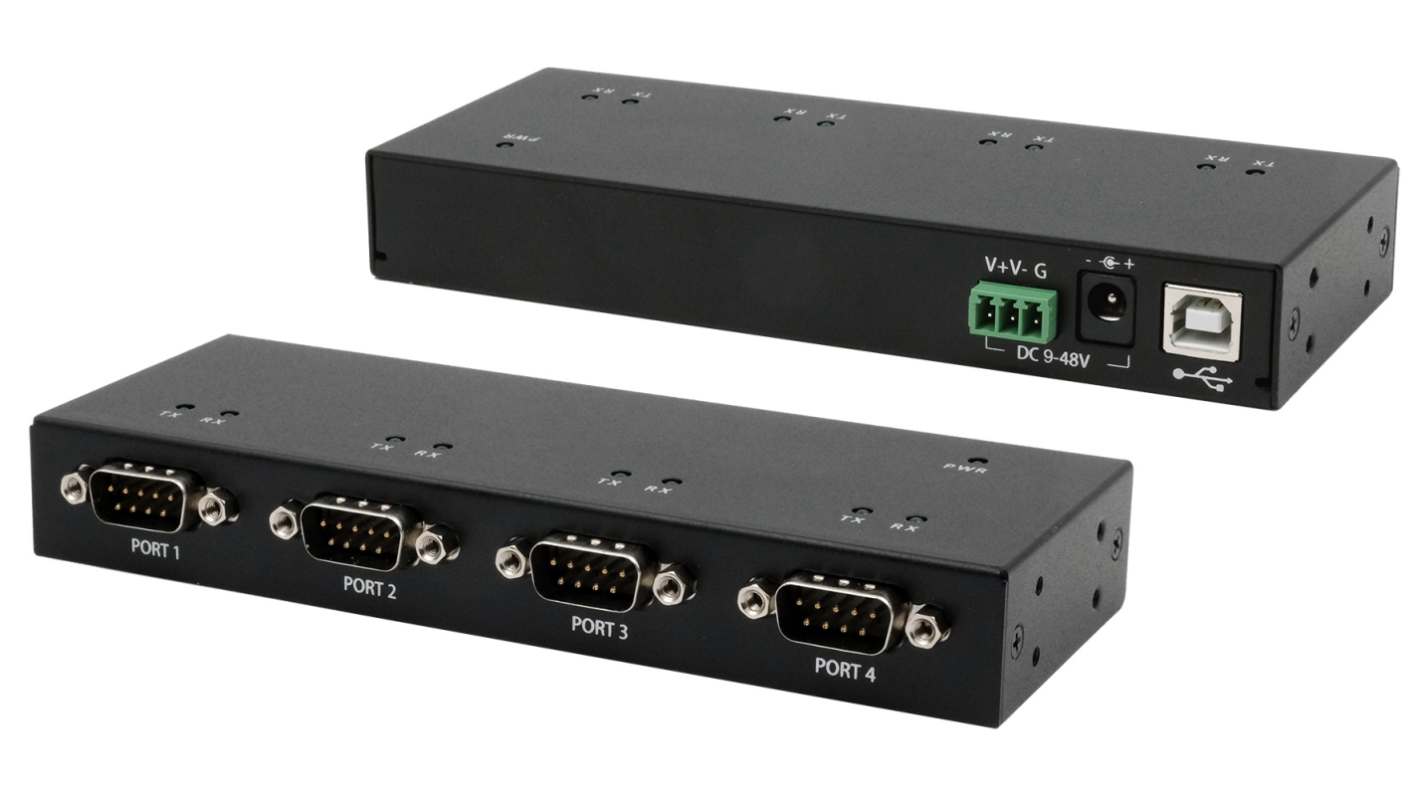

The Exsys USB 2.0 To Serial RS 232 comes in a metal case providing four serial RS232 high performance UART 16C550 outputs. It is designed to add four more serial outputs in a rugged metal enclosure for desktop computer or notebook via USB 2.0 bus. It has LED indicators for data transmission on each port and comes with two brackets for wall mounting and a DIN Rail kit for mounting on a carrier rail in a 19 inch rack. A terminal block and DC jack are available for optional power supply.
I/O addresses and interrupt are assigned by the operating system
Terminal block 9 to 48VDC and DC socket for optional power supply
Power from the USB bus
