Units	Per Unit
1 - 4	MYR644.91
5 - 9	MYR632.01
10 - 24	MYR619.37
25 - 49	MYR606.97
50 +	MYR594.83

Select all	Attribute	Value
	Brand	TRACOPOWER
	Output Voltage	5V dc
	Input Voltage Range	18 → 75 V dc
	Power Rating	60W
	Input Voltage Nominal	48 V dc
	Output Current	12A
	Mounting Type	Through Hole
	Isolated	Yes
	Number of Outputs	1
	Output Voltage Adjustment Range	-10 → +20%
	Package	2 x 1 in
	Isolation Voltage	3kV
	Depth	25.4mm
	Length	50.8mm
	Width	40.7mm
	Series	TEP 60WIR
	Railway Approved	Yes
	Load Regulation	0.005
	Efficiency	92%
	Minimum Temperature	-40°C
	Standards Met	IEC/EN 62368-1
	Maximum Temperature	+85°C
	Medical Approved	No

	Select all
	Brand TRACOPOWER
	Output Voltage 5V dc
	Input Voltage Range 18 → 75 V dc
	Power Rating 60W
	Input Voltage Nominal 48 V dc
	Output Current 12A
	Mounting Type Through Hole
	Isolated Yes
	Number of Outputs 1
	Output Voltage Adjustment Range -10 → +20%
	Package 2 x 1 in
	Isolation Voltage 3kV
	Depth 25.4mm
	Length 50.8mm
	Width 40.7mm
	Series TEP 60WIR
	Railway Approved Yes
	Load Regulation 0.005
	Efficiency 92%
	Minimum Temperature -40°C
	Standards Met IEC/EN 62368-1
	Maximum Temperature +85°C
	Medical Approved No

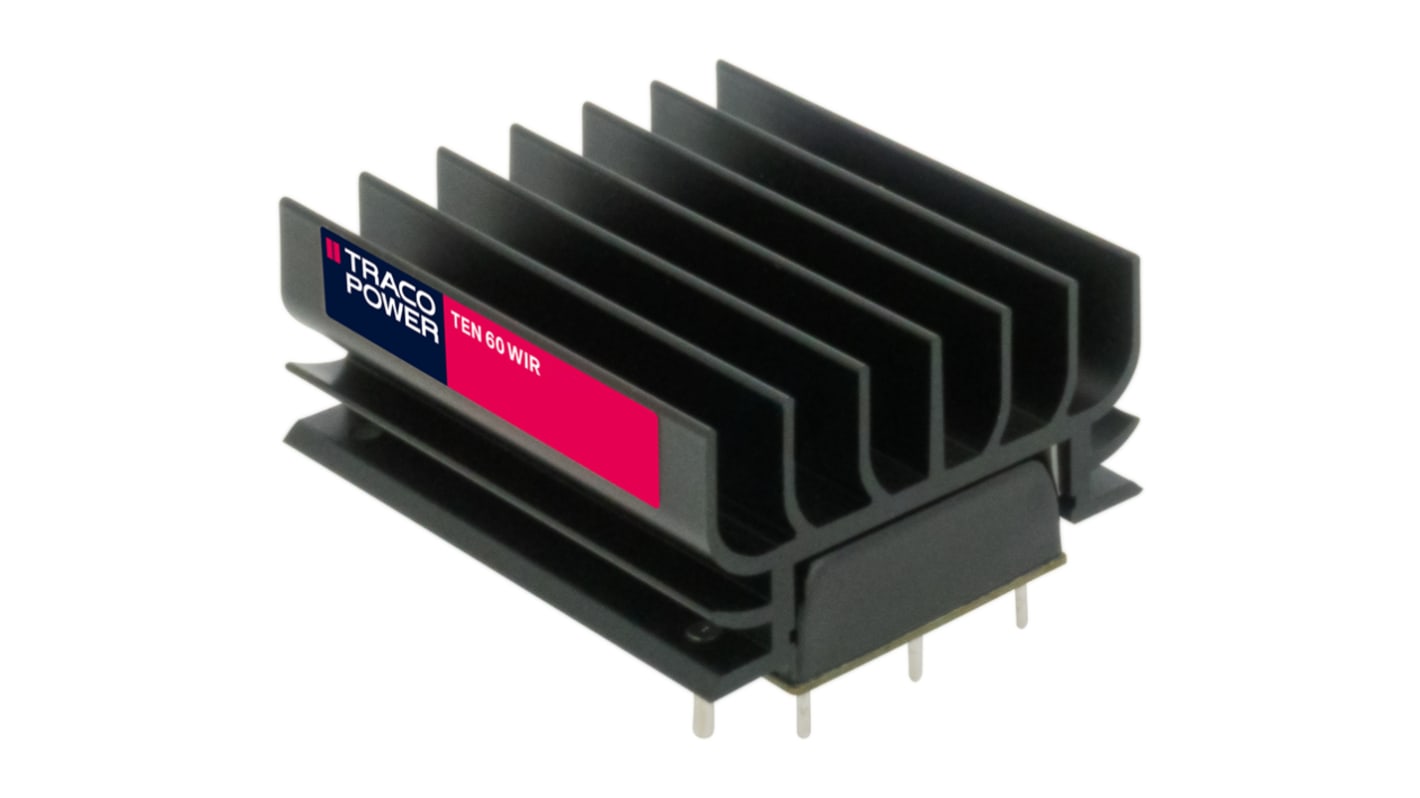

TRACOPOWER TEP 60WIR DC-DC Converter, 5V dc/ 12A Output, 18 → 75 V dc Input, 60W, Through Hole, +85°C Max Temp

FREE delivery for orders over MYR500.00

TRACOPOWER TEP 60WIR Series DC-DC Converter, 0.92 Efficiency, 3kV Isolation Voltage - TEN 60-4811WIR

Features & Benefits

Applications

How does this device maintain efficiency?

Is it safe to use in harsh environments?

Can it be adjusted for different output requirements?

What is the maximum operating temperature?

How do I ensure proper installation?
