XP Power JHM DC-DC Converter, ±15V dc/ ±333mA Output, 4.5 → 9 V dc Input, 10W, Through Hole, +80°C Max Temp

RS Stock No.:: 167-2550
Mfr. Part No.:: JHM1005D15
Manufacturer:: XP Power

XP Power JHM DC-DC Converter, ±15V dc/ ±333mA Output, 4.5 → 9 V dc Input, 10W, Through Hole, +80°C Max Temp

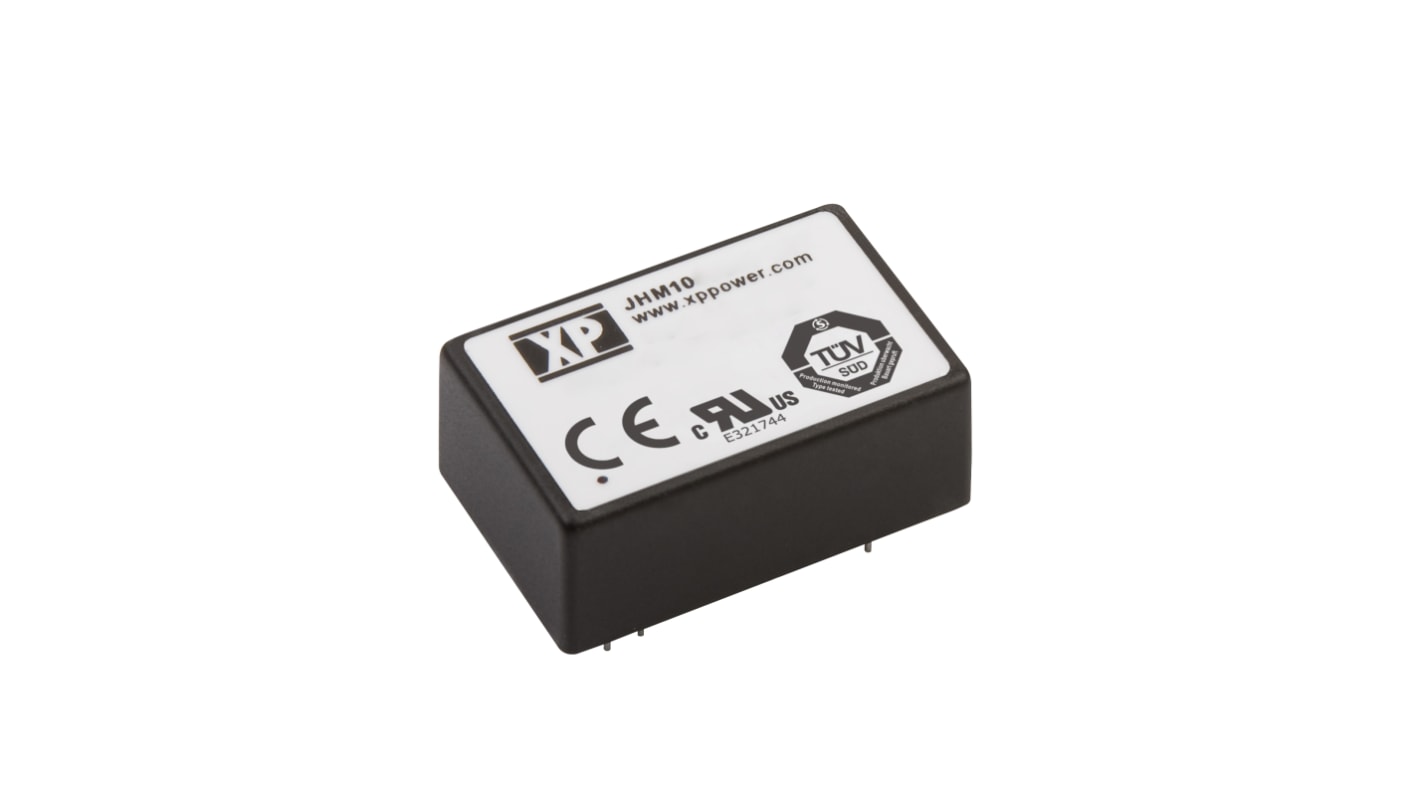

This image is representative of the product range

10 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

Price 1 Tube of 10

MYR3,482.56

Tube(s)	Per Tube	Per Unit*
1 - 1	MYR3,482.56	MYR348.256
2 - 3	MYR3,405.96	MYR340.596
4 +	MYR3,332.81	MYR333.281

*price indicative

RS Stock No.:: 167-2550
Mfr. Part No.:: JHM1005D15
Manufacturer:: XP Power

Datasheet

Attribute	Value
Output Voltage	±15V dc
Input Voltage Range	4.5 → 9 V dc
Power Rating	10W
Input Voltage Nominal	5 V dc
Output Current	±333mA
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	2
Package	DIP 24
Isolation Voltage	4kV ac
Length	31.75mm
Width	20.32mm
Depth	10.4mm
Series	JHM
Railway Approved	No
Load Regulation	±1 (10 → 100% Load) %, ±2 (0 → 10% Load) %
Maximum Temperature	+80°C
Medical Approved	Yes
Minimum Temperature	-40°C
Standards Met	ANSI/AAMI ES 60601-1, CB, CSA 22.2 No. 60601-1:2008, EN 55011, EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61204-3, IEC 60601-1, IEC 60601-1-2, MIL-HDBK-217F, TUV, UL

XP Power JHM DC-DC Converter, ±15V dc/ ±333mA Output, 4.5 → 9 V dc Input, 10W, Through Hole, +80°C Max Temp

XP Power - JHM10 Series of Isolated DC-DC Converters
