XP Power JHM DC-DC Converter, 5V dc/ 2A Output, 4.5 → 9 V dc Input, 10W, Through Hole, +80°C Max Temp -40°C Min

RS Stock No.:: 167-2416
Mfr. Part No.:: JHM1005S05
Manufacturer:: XP Power

XP Power JHM DC-DC Converter, 5V dc/ 2A Output, 4.5 → 9 V dc Input, 10W, Through Hole, +80°C Max Temp -40°C Min

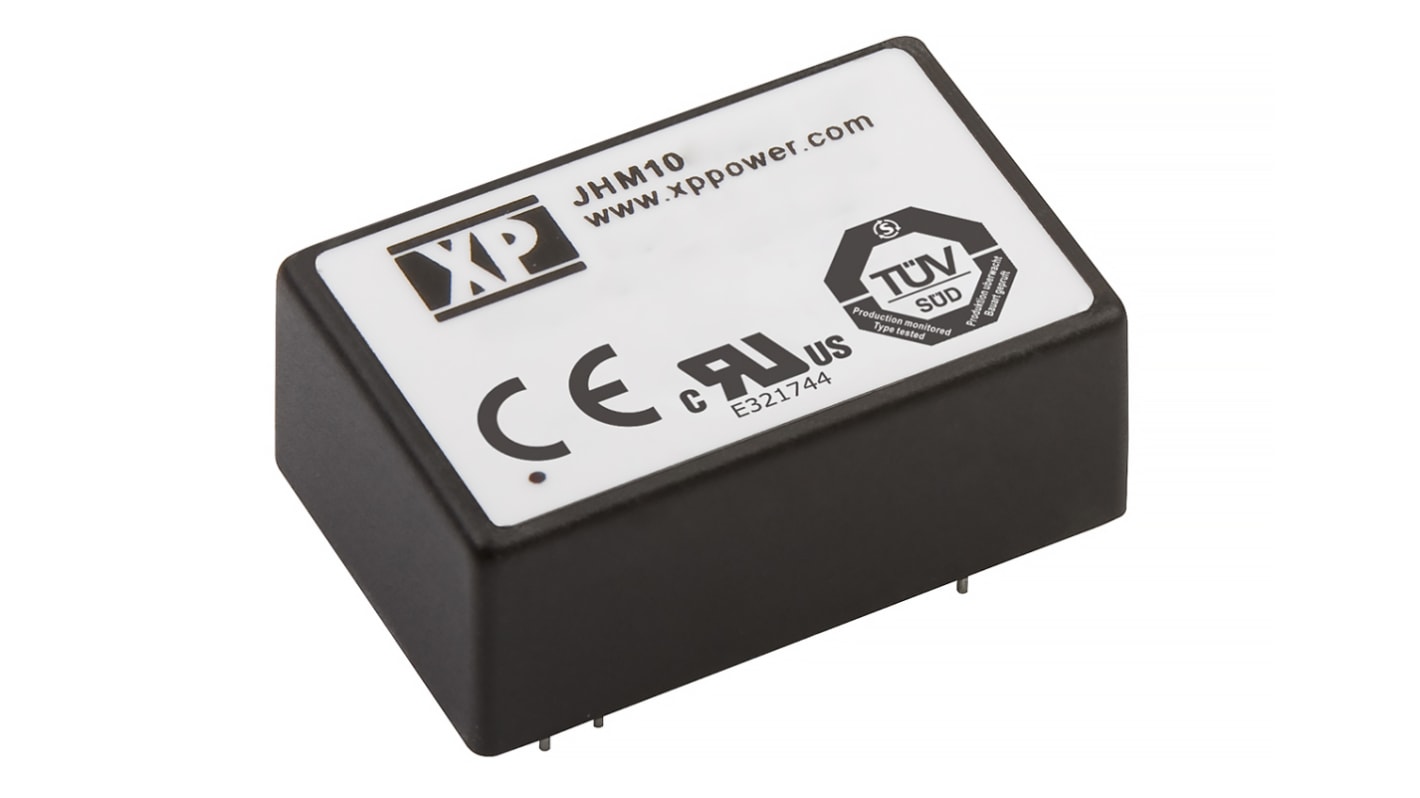

This image is representative of the product range

Bulk discount available

Subtotal (1 tube of 10 units)**

MYR2,167.71

1 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over MYR700.00

Tube(s)	Per Tube	Per Unit**
1 - 1	MYR2,167.71	MYR216.771
2 - 3	MYR2,120.03	MYR212.003
4 +	MYR2,074.50	MYR207.45

**price indicative

RS Stock No.:: 167-2416
Mfr. Part No.:: JHM1005S05
Manufacturer:: XP Power

Datasheet

Attribute	Value
Output Voltage	5V dc
Input Voltage Range	4.5 → 9 V dc
Power Rating	10W
Input Voltage Nominal	5 V dc
Output Current	2A
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	1
Package	DIP 24
Isolation Voltage	4kV ac
Width	20.32mm
Depth	10.4mm
Length	31.75mm
Series	JHM
Railway Approved	No
Load Regulation	±1 (10 to 100% Load) %, ±2 (0 to 10% Load) %
Standards Met	ANSI/AAMI ES 60601-1, CB, CSA 22.2 No. 60601-1:2008, EN 55011, EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61204-3, IEC 60601-1, IEC 60601-1-2, MIL-HDBK-217F, TUV, UL
Maximum Temperature	+80°C
Minimum Temperature	-40°C
Medical Approved	Yes

XP Power JHM DC-DC Converter, 5V dc/ 2A Output, 4.5 → 9 V dc Input, 10W, Through Hole, +80°C Max Temp -40°C Min

FREE delivery for orders over MYR700.00

XP Power - JHM10 Series of Isolated DC-DC Converters
