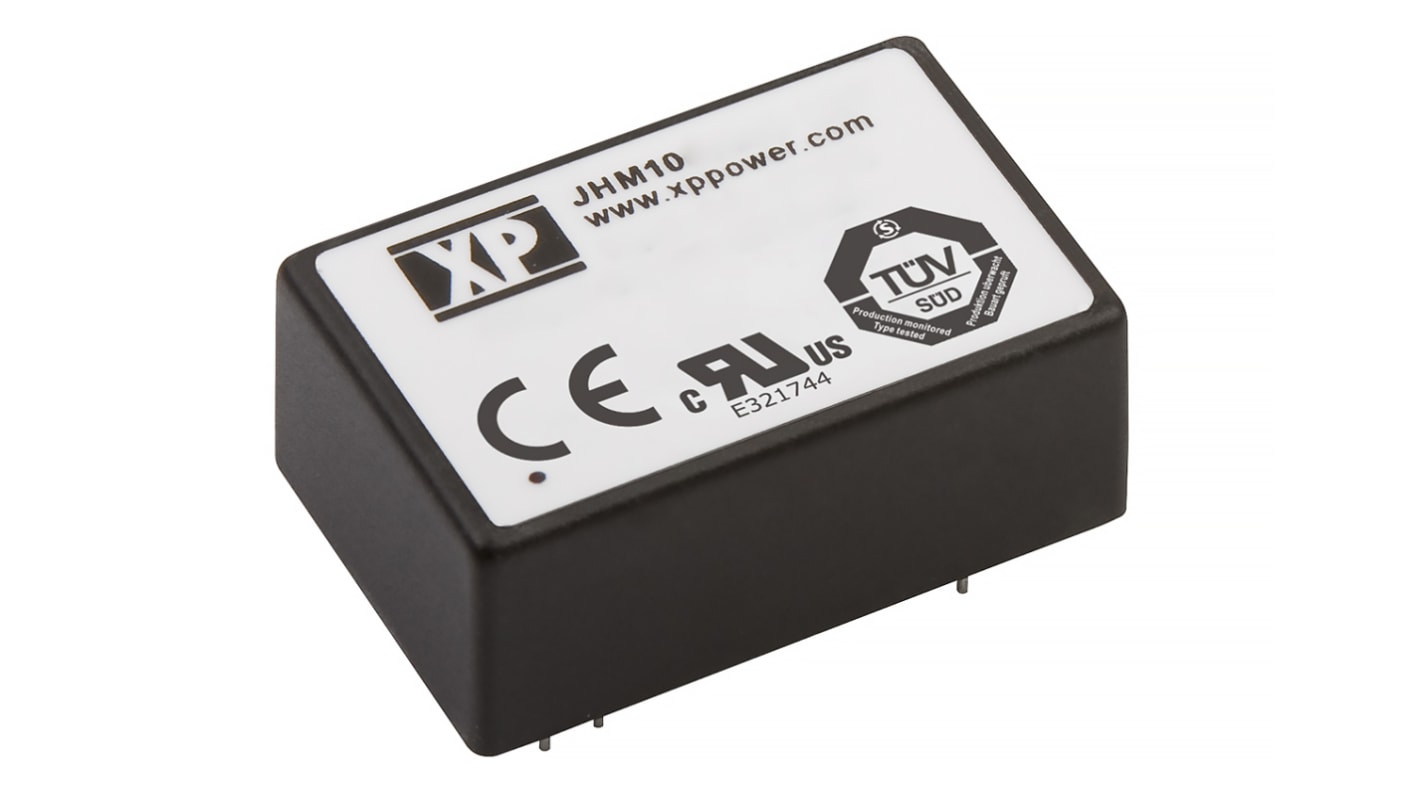

XP Power JHM DC-DC Converter, ±12V dc/ ±420mA Output, 9 → 18 V dc Input, 10W, Through Hole, +80°C Max Temp -40°C

RS Stock No.:: 161-9028
Mfr. Part No.:: JHM1012D12
Manufacturer:: XP Power

XP Power JHM DC-DC Converter, ±12V dc/ ±420mA Output, 9 → 18 V dc Input, 10W, Through Hole, +80°C Max Temp -40°C

Available for back order.

Price 1 Tube of 10

MYR3,482.56

Tube(s)	Per Tube	Per Unit*
1 - 1	MYR3,482.56	MYR348.256
2 - 3	MYR3,428.91	MYR342.891
4 +	MYR3,354.73	MYR335.473

*price indicative

RS Stock No.:: 161-9028
Mfr. Part No.:: JHM1012D12
Manufacturer:: XP Power

Datasheet

Attribute	Value
Output Voltage	±12V dc
Input Voltage Range	9 → 18 V dc
Power Rating	10W
Input Voltage Nominal	12 V dc
Output Current	±420mA
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	2
Package	DIP 24
Isolation Voltage	4kV ac
Depth	10.4mm
Width	20.32mm
Length	31.75mm
Series	JHM
Railway Approved	No
Load Regulation	±1 (10 → 100% Load) %, ±2 (0 → 10% Load) %
Standards Met	ANSI/AAMI ES 60601-1, CB, CSA 22.2 No. 60601-1:2008, EN 55011, EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61204-3, IEC 60601-1, IEC 60601-1-2, MIL-HDBK-217F, TUV, UL
Medical Approved	Yes
Maximum Temperature	+80°C
Minimum Temperature	-40°C

XP Power JHM DC-DC Converter, ±12V dc/ ±420mA Output, 9 → 18 V dc Input, 10W, Through Hole, +80°C Max Temp -40°C

XP Power - JHM10 Series of Isolated DC-DC Converters
