JHM1012S12 | XP Power JHM DC-DC Converter, 12V dc/ 833mA Output, 9 → 18 V dc Input, 10W, Through Hole, +80°C Max Temp -40°C | RS
Recently searched

    XP Power JHM DC-DC Converter, 12V dc/ 833mA Output, 9 → 18 V dc Input, 10W, Through Hole, +80°C Max Temp -40°C

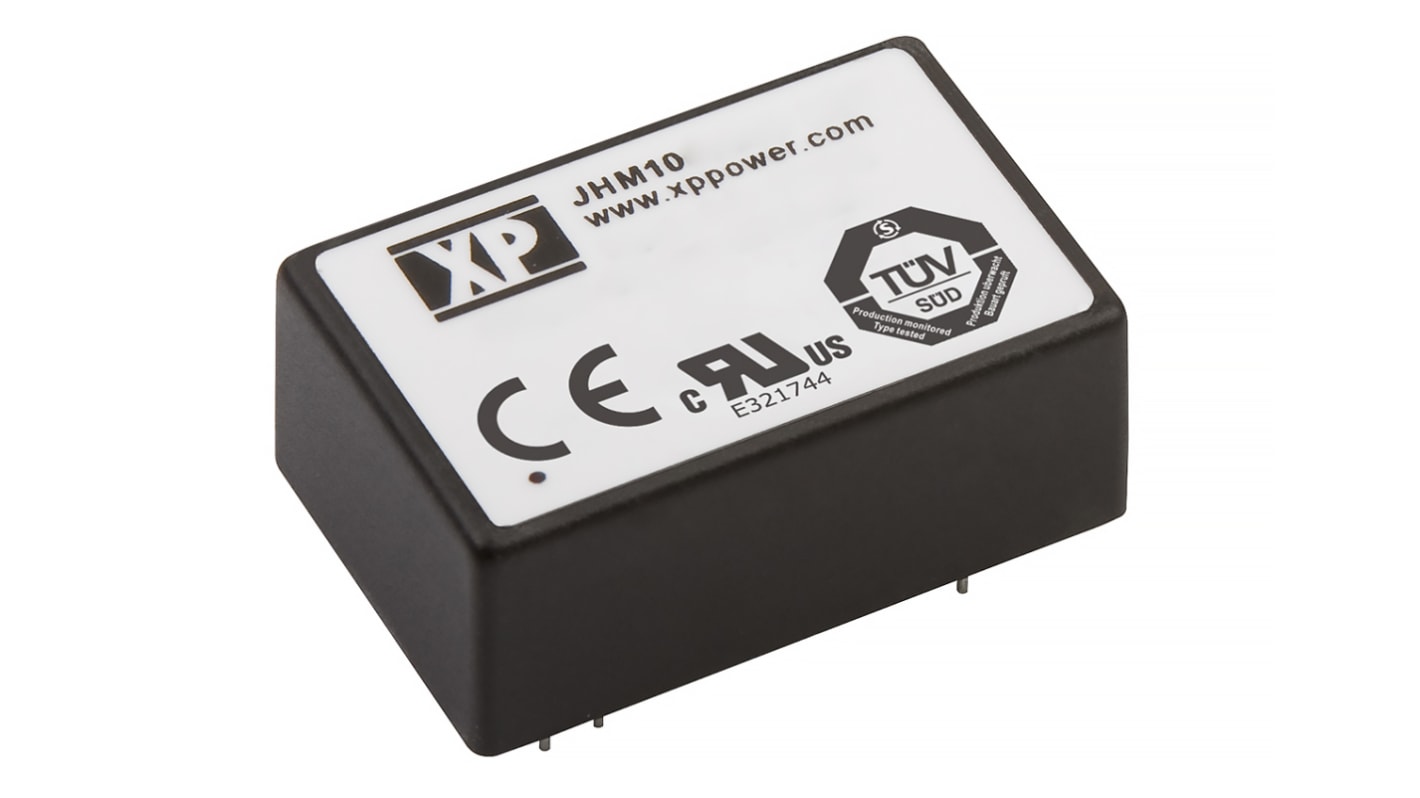

    This image is representative of the product range

    View all DC-DC Converters
    Bulk discount available

    Subtotal (1 tube of 10 units)**

    MYR2,337.09

    Add to Basket
    Select or type quantity
    Temporarily out of stock - back order for despatch 06/10/2025, delivery within 4 working days from despatch date*

    * Delivery dates may change based on your chosen quantity and delivery address.

    Tube(s)
    Per Tube
    Per Unit**
    1 - 1MYR2,337.09MYR233.709
    2 - 3MYR2,285.66MYR228.566
    4 +MYR2,236.59MYR223.659

    **price indicative

    RS Stock No.:
    167-2410
    Mfr. Part No.:
    JHM1012S12
    Manufacturer:
    XP Power
    Find similar products by selecting one or more attributes.
    Select all

    Brand

    XP Power

    Output Voltage

    12V dc

    Input Voltage Range

    9 → 18 V dc

    Power Rating

    10W

    Input Voltage Nominal

    12 V dc

    Output Current

    833mA

    Mounting Type

    Through Hole

    Isolated

    Yes

    Number of Outputs

    1

    Package

    DIP 24

    Isolation Voltage

    4kV ac

    Depth

    10.4mm

    Width

    20.32mm

    Length

    31.75mm

    Railway Approved

    No

    Series

    JHM

    Load Regulation

    ±1 (10 to 100% Load) %, ±2 (0 to 10% Load) %

    Medical Approved

    Yes

    Maximum Temperature

    +80°C

    Minimum Temperature

    -40°C

    Standards Met

    ANSI/AAMI ES 60601-1, CB, CSA 22.2 No. 60601-1:2008, EN 55011, EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61204-3, IEC 60601-1, IEC 60601-1-2, MIL-HDBK-217F, TUV, UL
