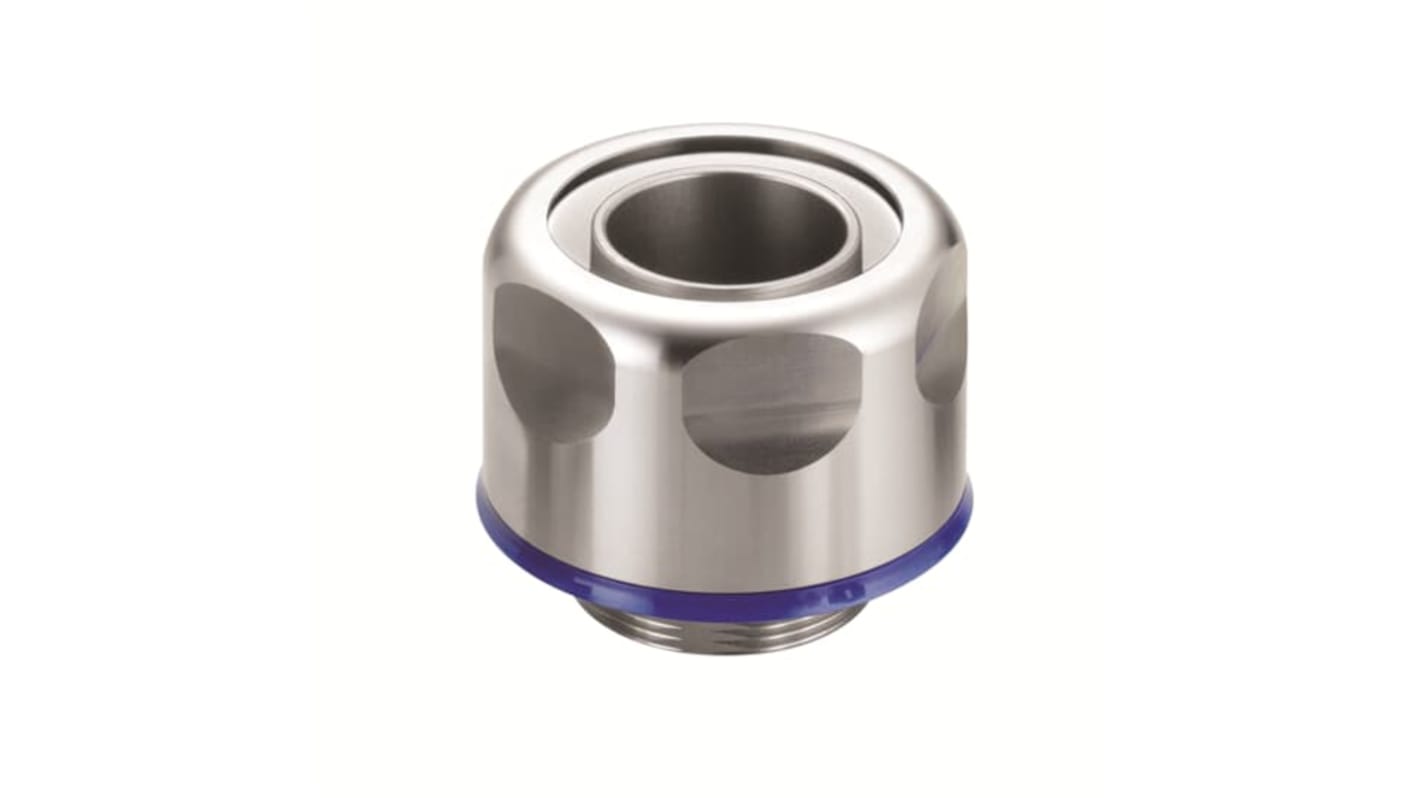

ABB Fitting Metallic, Conduit Fitting, 20 mm Nominal Size, M20, Stainless Steel, Metallic IP66 rating
- RS Stock No.:
- 266-4493
- Mfr. Part No.:
- 7TCA296120R0044
- Manufacturer:
- ABB
Subtotal (1 unit)*
MYR682.26
FREE delivery for orders over RM 500.00
In Stock
- 9 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR682.26 |
*price indicative
- RS Stock No.:
- 266-4493
- Mfr. Part No.:
- 7TCA296120R0044
- Manufacturer:
- ABB
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Nominal Size | 20 mm | |
| Product Type | Conduit Fitting | |
| Sub Type | Fitting | |
| Thread Size | M20 | |
| Material | Stainless Steel | |
| Colour | Metallic | |
| IP Rating | IP66 | |
| Finish | Metallic | |
| Standards/Approvals | CE | |
| Series | Adaptaflex | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Nominal Size 20 mm | ||
Product Type Conduit Fitting | ||
Sub Type Fitting | ||
Thread Size M20 | ||
Material Stainless Steel | ||
Colour Metallic | ||
IP Rating IP66 | ||
Finish Metallic | ||
Standards/Approvals CE | ||
Series Adaptaflex | ||
RoHS Status: Exempt
- COO (Country of Origin):
- TR
ABB Adaptaflex Series Conduit Fitting, 20mm Nominal size, M20 Thread size - 7TCA296120R0044
This conduit fitting provides a Durable connection point for cable runs in demanding environments, offering a metallic finish and designed for secure attachment to conduit systems. It is intended for use where corrosion resistance and ingress protection are required, supporting reliable cable management in industrial installations.
Features & Benefits
• Stainless steel construction delivers enhanced corrosion resistance
• IP66 rating prevents dust ingress and powerful water jets
• M20 thread size enables compatibility with common metric conduits
• Metallic finish affords low-maintenance external appearance
• IP66 rating prevents dust ingress and powerful water jets
• M20 thread size enables compatibility with common metric conduits
• Metallic finish affords low-maintenance external appearance
**Applications**
• Suitable for automation control panel cable entries where moisture is present
• Ideal for electrical junction boxes in harsh industrial zones
• Used for routing sensor and actuator cabling in machinery enclosures
• Can be used for outdoor instrumentation conduit connections
• Suitable for retrofit of metallic conduit runs in mechanical plant rooms
• Ideal for electrical junction boxes in harsh industrial zones
• Used for routing sensor and actuator cabling in machinery enclosures
• Can be used for outdoor instrumentation conduit connections
• Suitable for retrofit of metallic conduit runs in mechanical plant rooms
What material properties affect longevity in corrosive atmospheres?
The fitting is MADE from stainless steel which provides resistance to oxidation and many corrosive agents, reducing the need for frequent replacement in aggressive conditions.
How does the ingress protection rating influence installation location choices?
The IP66 classification means it blocks dust and withstands strong water jets, so it can be installed on external panels or areas exposed to washdown without compromising the seal.
Which thread compatibility should installers prepare for?
Installers should accommodate an M20 threaded entry, ensuring mating conduits or adaptors match this metric thread for a secure mechanical and environmental seal.
What Visual or surface characteristics affect maintenance schedules?
The metallic finish resists visible wear and simplifies cleaning routines, allowing inspectors to identify damage without additional surface treatment.
