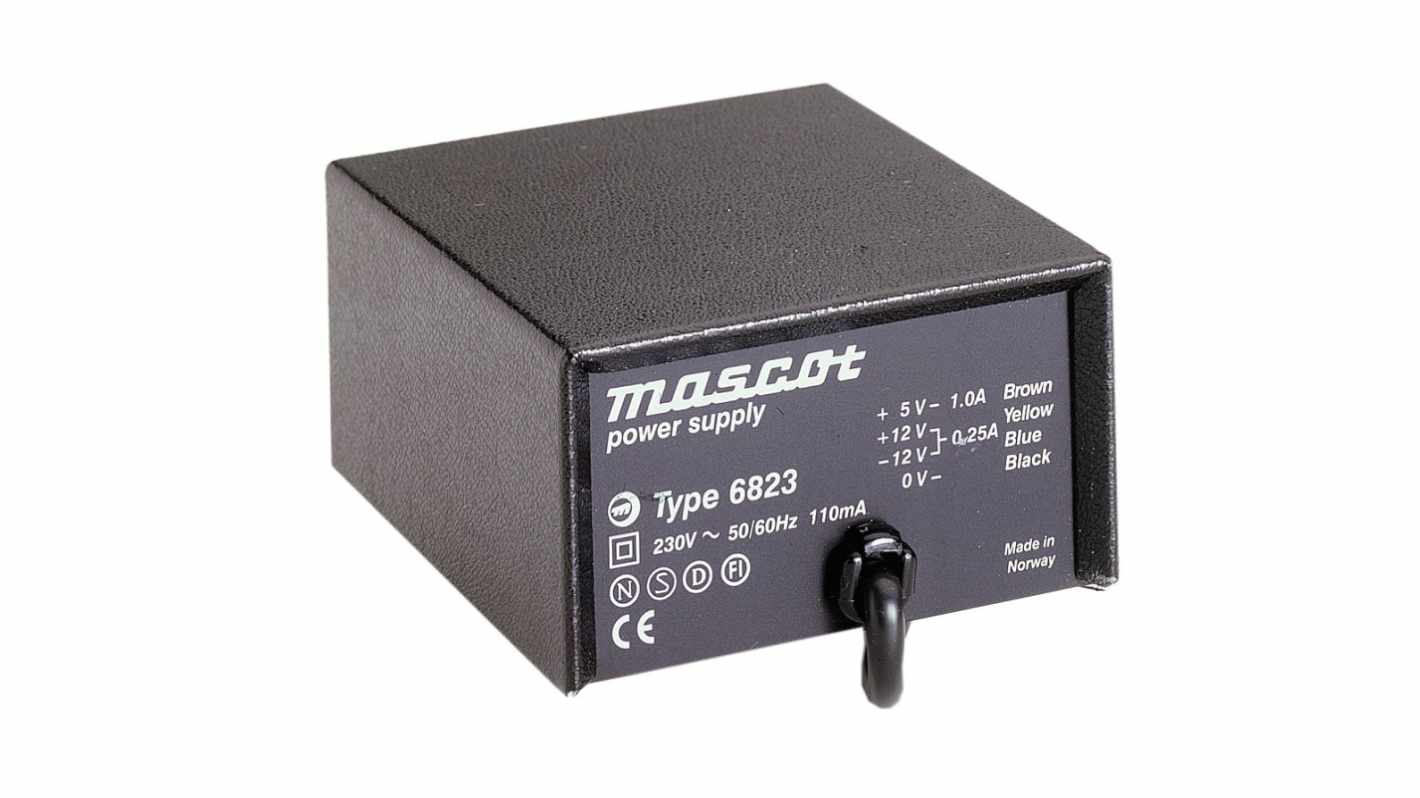

Mascot 12W Power Brick AC/DC Adapter +5V dc Output, 1 → 6A Output
- RS Stock No.:
- 218-4784
- Mfr. Part No.:
- 6823
- Manufacturer:
- Mascot
Bulk discount available
Subtotal (1 unit)*
MYR629.52
FREE delivery for orders over RM 500.00
Limited stock
- 5 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 9 | MYR629.52 |
| 10 - 49 | MYR621.83 |
| 50 + | MYR610.55 |
*price indicative
- RS Stock No.:
- 218-4784
- Mfr. Part No.:
- 6823
- Manufacturer:
- Mascot
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Mascot | |
| Adapter Type | Power Brick Adapter | |
| Output Voltage | +5 V dc, ±12V dc | |
| Input Voltage | 90 → 264V ac | |
| Output Current | 1 → 6A | |
| Maximum Temperature | +40°C | |
| Output Connector | Snap-Lock Terminal | |
| Number of Outputs | 3 | |
| Power Rating | 12W | |
| Depth | 55mm | |
| Width | 108mm | |
| Minimum Temperature | -10°C | |
| Length | 98mm | |
| Line Regulation Range | ±2% | |
| Load Regulation | 130mV | |
| Select all | ||
|---|---|---|
Brand Mascot | ||
Adapter Type Power Brick Adapter | ||
Output Voltage +5 V dc, ±12V dc | ||
Input Voltage 90 → 264V ac | ||
Output Current 1 → 6A | ||
Maximum Temperature +40°C | ||
Output Connector Snap-Lock Terminal | ||
Number of Outputs 3 | ||
Power Rating 12W | ||
Depth 55mm | ||
Width 108mm | ||
Minimum Temperature -10°C | ||
Length 98mm | ||
Line Regulation Range ±2% | ||
Load Regulation 130mV | ||
11 W linear power supply unit
Linear power supply unit with 3 stabilised output voltages.
High power density (excellent power-footprint ratio).
The unit features surge and short-circuit protection.
Input: mains connector lead and plug; output: moulded lead with 4 bare wires at the end (marked on cable).
Optional attachment system for adaptation to sockets in vehicles etc.
High power density (excellent power-footprint ratio).
The unit features surge and short-circuit protection.
Input: mains connector lead and plug; output: moulded lead with 4 bare wires at the end (marked on cable).
Optional attachment system for adaptation to sockets in vehicles etc.
Note
Non Compliant For Industrial Use Only, not in scope of Regulation (EC) No 125/2009
