Wurth Elektronik 824501301 / SMAJ30CA, Bi-Directional TVS Diode, 400W, 2-Pin DO-214AC

RS Stock No.:: 921-7327
Mfr. Part No.:: 824501301 / SMAJ30CA
Manufacturer:: Wurth Elektronik

Wurth Elektronik 824501301 / SMAJ30CA, Bi-Directional TVS Diode, 400W, 2-Pin DO-214AC

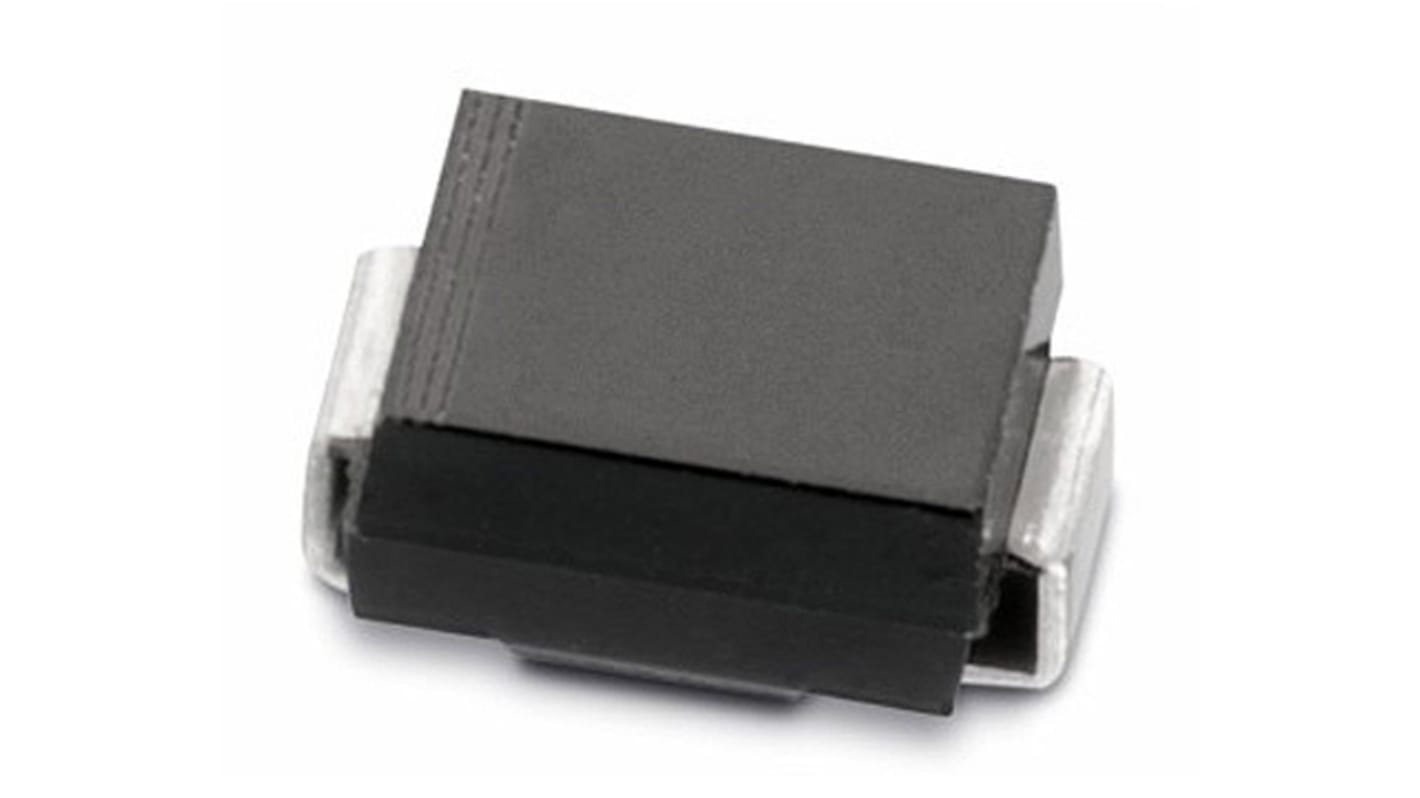

This image is representative of the product range

150 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

Price Each (In a Pack of 50)

MYR1.36

Units	Per Unit	Per Pack*
50 - 200	MYR1.36	MYR68.00
250 - 450	MYR1.292	MYR64.60
500 +	MYR1.227	MYR61.35

*price indicative

RS Stock No.:: 921-7327
Mfr. Part No.:: 824501301 / SMAJ30CA
Manufacturer:: Wurth Elektronik

TVS Diode Bidirectional 400W Datasheet
ESD Control Selection Guide V1

Attribute	Value
Direction Type	Bi-Directional
Diode Configuration	Single
Maximum Clamping Voltage	48.4V
Minimum Breakdown Voltage	35.05V
Mounting Type	Surface Mount
Package Type	DO-214AC (SMA)
Pin Count	2
Peak Pulse Power Dissipation	400W
Maximum Peak Pulse Current	8.3A
Number of Elements per Chip	1
Minimum Operating Temperature	-65 °C
Dimensions	4.24 x 2.67 x 2.14mm
Maximum Operating Temperature	+150 °C
Width	2.67mm
Height	2.14mm
Length	4.24mm
Maximum Reverse Leakage Current	1µA
Test Current	1mA

Wurth Elektronik 824501301 / SMAJ30CA, Bi-Directional TVS Diode, 400W, 2-Pin DO-214AC

Bidirectional TVS Diodes, 400W, Wurth Elektronik
