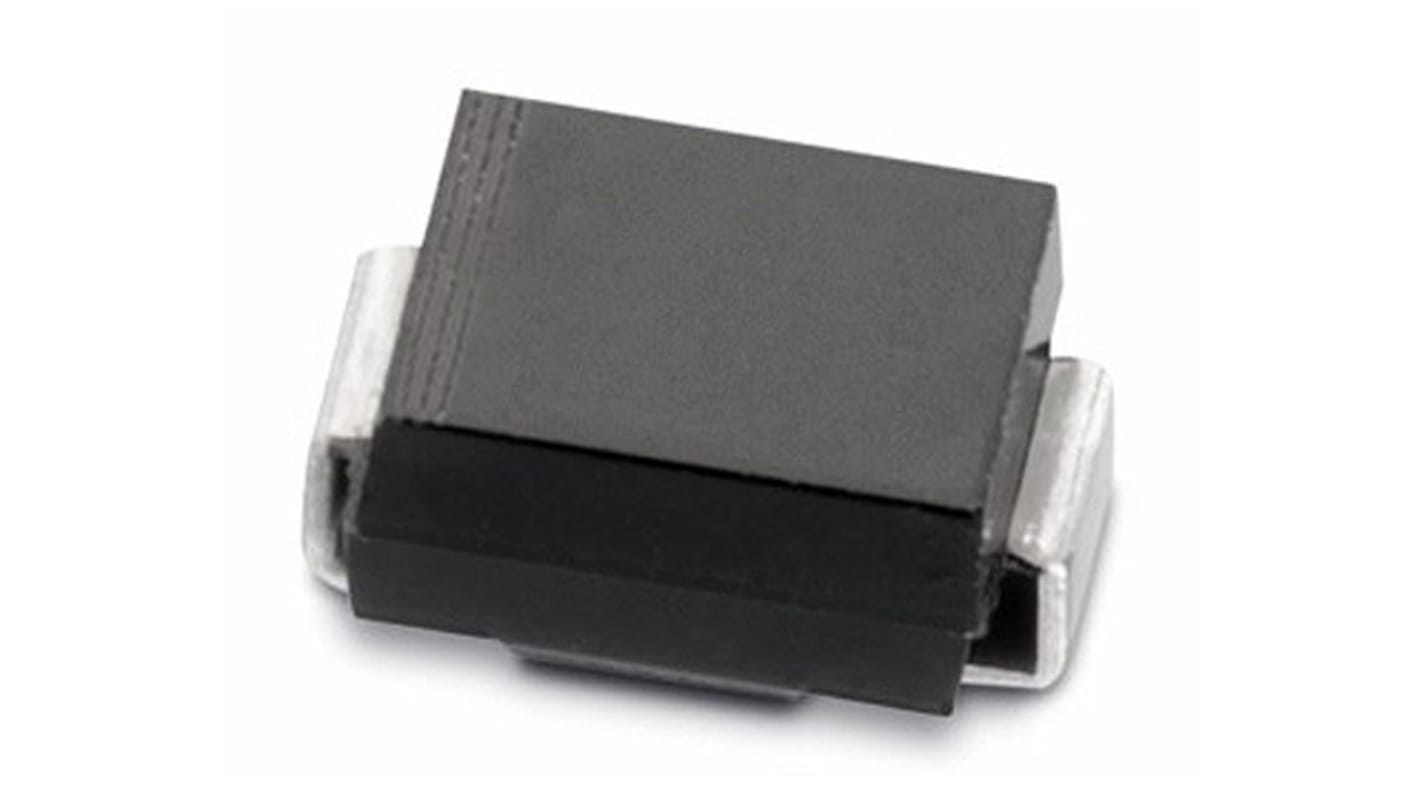

Wurth Elektronik 824501600 / SMAJ6.0CA, Bi-Directional TVS Diode, 400W, 2-Pin DO-214AC
- RS Stock No.:
- 162-3881
- Mfr. Part No.:
- 824501600 / SMAJ6.0CA
- Manufacturer:
- Wurth Elektronik
Temporarily out of stock - back order for despatch 31/01/2025, delivery within 4 working days from despatch date
Price Each (On a Reel of 1000)
MYR1.696
Units | Per Unit | Per Reel* |
|---|---|---|
| 1000 - 1000 | MYR1.696 | MYR1,696.00 |
| 2000 - 3000 | MYR1.658 | MYR1,658.00 |
| 4000 + | MYR1.628 | MYR1,628.00 |
*price indicative
- RS Stock No.:
- 162-3881
- Mfr. Part No.:
- 824501600 / SMAJ6.0CA
- Manufacturer:
- Wurth Elektronik
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Bidirectional TVS Diodes, 400W, Wurth Elektronik
The Wurth Elektronik 400 W Bidirectional Power TVS Diodes are available in a range of operating voltages from 5 V dc up to 100 V dc.
- Low profile package
- Glass passivated junction
- Fast response time
- Glass passivated junction
- Fast response time
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Transient Voltage Suppressors, Wurth Elektronik
Specifications
Attribute | Value |
|---|---|
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Maximum Clamping Voltage | 10.3V |
| Minimum Breakdown Voltage | 7.02V |
| Mounting Type | Surface Mount |
| Package Type | DO-214AC (SMA) |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 400W |
| Maximum Peak Pulse Current | 38.8A |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +150 °C |
| Dimensions | 4.24 x 2.67 x 2.14mm |
| Length | 4.24mm |
| Maximum Reverse Leakage Current | 1.6mA |
| Test Current | 10mA |
| Height | 2.14mm |
| Width | 2.67mm |
