Wurth Elektronik 824501261 / SMAJ26CA, Bi-Directional TVS Diode, 400W, 2-Pin DO-214AC
- RS Stock No.:
- 162-3868
- Mfr. Part No.:
- 824501261 / SMAJ26CA
- Manufacturer:
- Wurth Elektronik

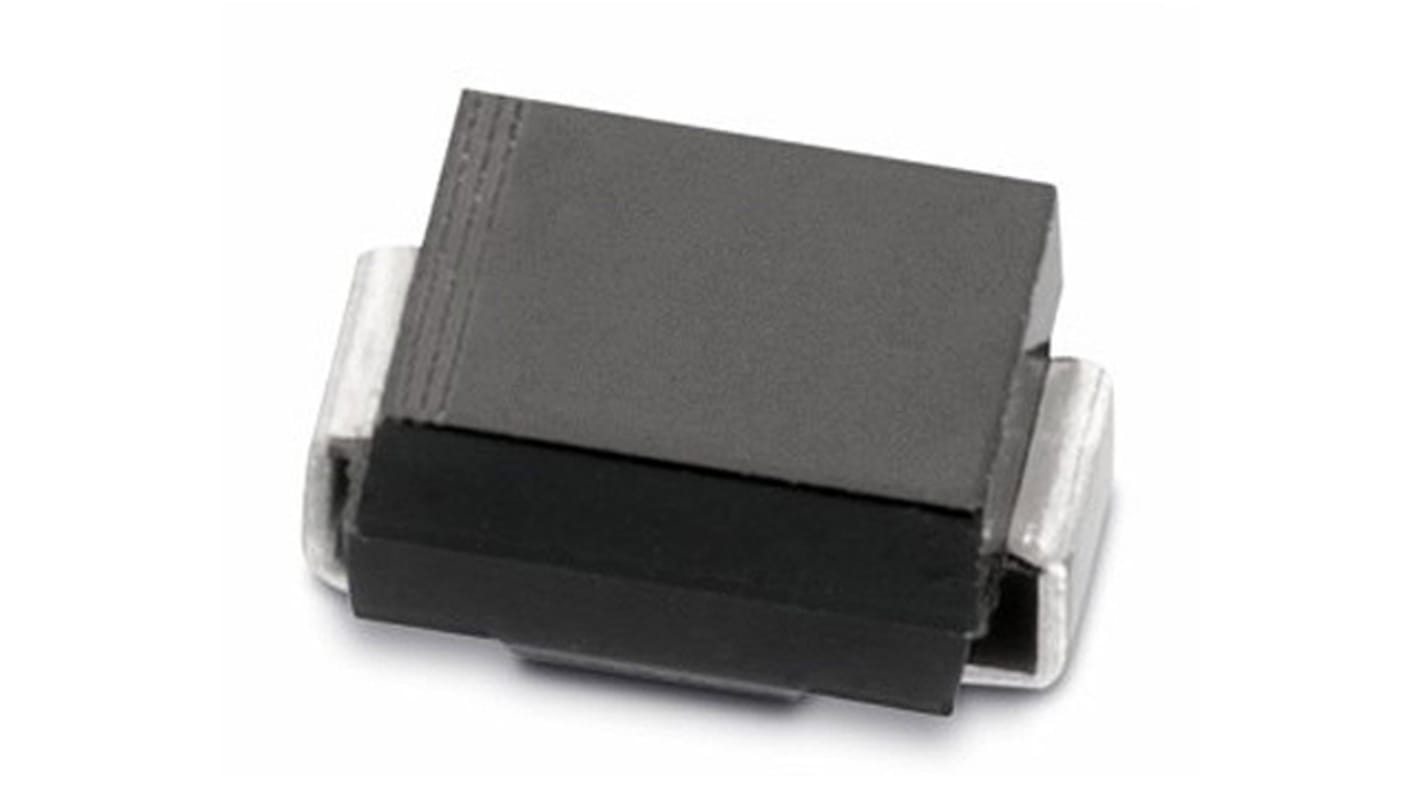

This image is representative of the product range
View all TVS Diodes
Temporarily out of stock - back order for despatch 05/01/2024, delivery within 4 working days from despatch date
Price Each (On a Reel of 1000)
MYR0.83
| units | Per Unit | Per Reel* |
| 1000 - 1000 | MYR0.83 | MYR830.00 |
| 2000 - 3000 | MYR0.811 | MYR811.00 |
| 4000 + | MYR0.796 | MYR796.00 |
| *price indicative | ||
- RS Stock No.:
- 162-3868
- Mfr. Part No.:
- 824501261 / SMAJ26CA
- Manufacturer:
- Wurth Elektronik
- COO (Country of Origin):
- CN
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Bidirectional TVS Diodes, 400W, Wurth Elektronik
The Wurth Elektronik 400 W Bidirectional Power TVS Diodes are available in a range of operating voltages from 5 V dc up to 100 V dc.
- Low profile package
- Glass passivated junction
- Fast response time
- Glass passivated junction
- Fast response time
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Transient Voltage Suppressors, Wurth Elektronik
Specifications
| Attribute | Value |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Maximum Clamping Voltage | 42.1V |
| Minimum Breakdown Voltage | 30.4V |
| Mounting Type | Surface Mount |
| Package Type | DO-214AC (SMA) |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 400W |
| Maximum Peak Pulse Current | 9.5A |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -65 °C |
| Dimensions | 4.24 x 2.67 x 2.14mm |
| Maximum Operating Temperature | +150 °C |
| Length | 4.24mm |
| Height | 2.14mm |
| Width | 2.67mm |
| Test Current | 1mA |
| Maximum Reverse Leakage Current | 1µA |
