Units	Per Unit	Per Reel**
1000 - 1000	MYR1.696	MYR1,696.00
2000 - 3000	MYR1.658	MYR1,658.00
4000 +	MYR1.628	MYR1,628.00

Select all	Attribute	Value
	Brand	Wurth Elektronik
	Diode Configuration	Single
	Direction Type	Bi-Directional
	Maximum Clamping Voltage	17V
	Minimum Breakdown Voltage	11.7V
	Mounting Type	Surface Mount
	Package Type	DO-214AC (SMA)
	Pin Count	2
	Peak Pulse Power Dissipation	400W
	Maximum Peak Pulse Current	23.5A
	Number of Elements per Chip	1
	Minimum Operating Temperature	-65 °C
	Maximum Operating Temperature	+150 °C
	Dimensions	4.24 x 2.67 x 2.14mm
	Test Current	1mA
	Height	2.14mm
	Maximum Reverse Leakage Current	10µA
	Width	2.67mm
	Length	4.24mm

	Select all
	Brand Wurth Elektronik
	Diode Configuration Single
	Direction Type Bi-Directional
	Maximum Clamping Voltage 17V
	Minimum Breakdown Voltage 11.7V
	Mounting Type Surface Mount
	Package Type DO-214AC (SMA)
	Pin Count 2
	Peak Pulse Power Dissipation 400W
	Maximum Peak Pulse Current 23.5A
	Number of Elements per Chip 1
	Minimum Operating Temperature -65 °C
	Maximum Operating Temperature +150 °C
	Dimensions 4.24 x 2.67 x 2.14mm
	Test Current 1mA
	Height 2.14mm
	Maximum Reverse Leakage Current 10µA
	Width 2.67mm
	Length 4.24mm

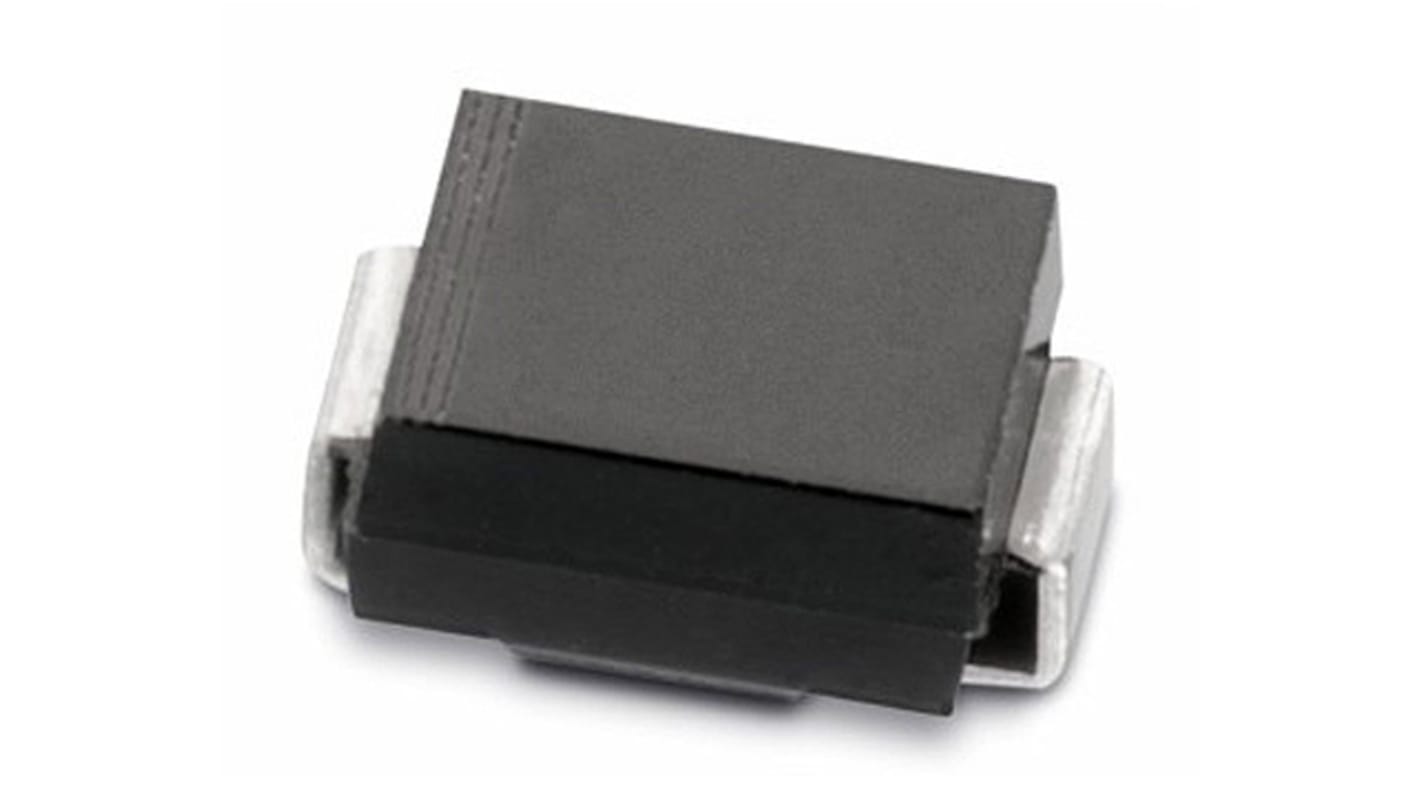

Wurth Elektronik 824501101 / SMAJ10CA, Bi-Directional TVS Diode, 400W, 2-Pin DO-214AC

FREE delivery for orders over MYR500.00

Bidirectional TVS Diodes, 400W, Wurth Elektronik

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
