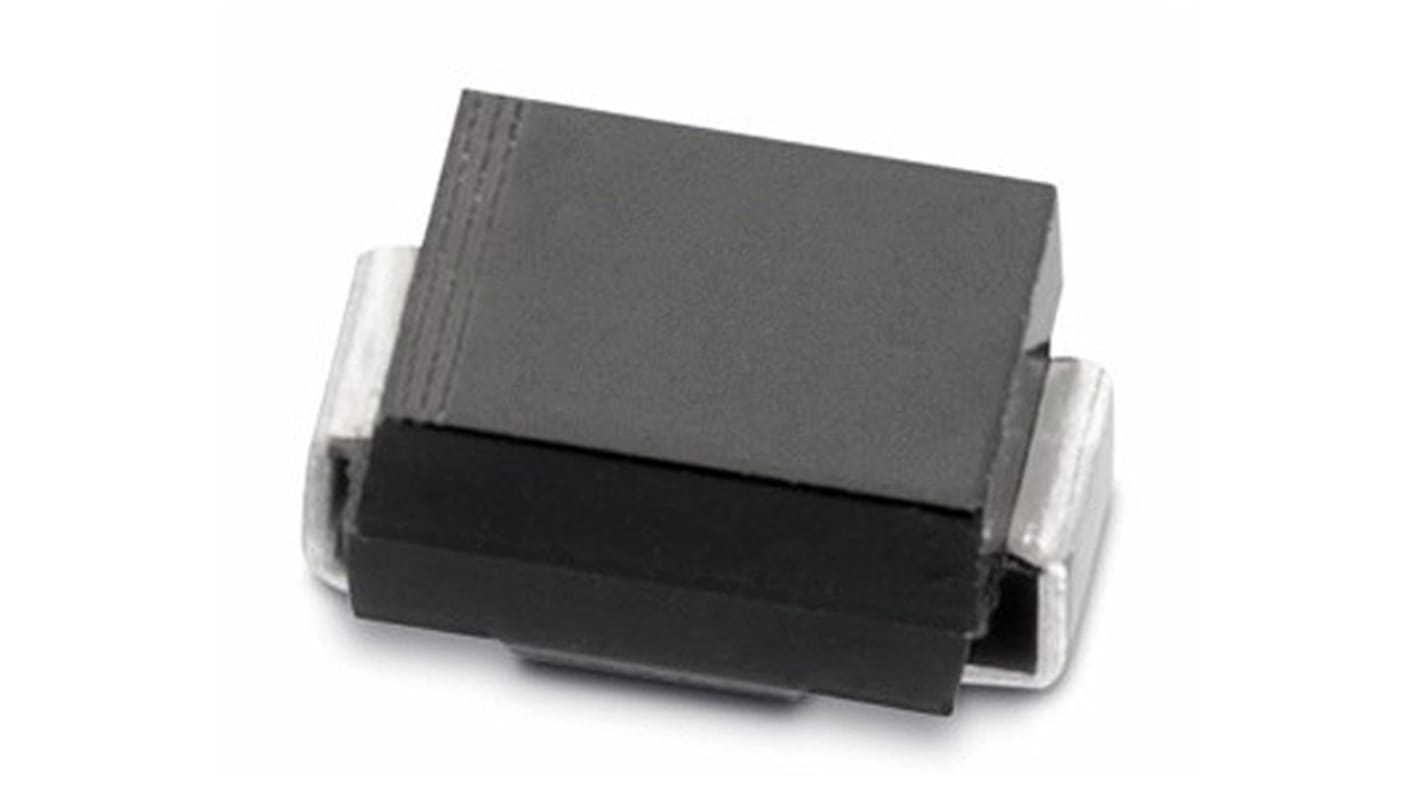

Wurth Elektronik 824501241 / SMAJ24CA, Bi-Directional TVS Diode, 400W, 2-Pin DO-214AC
- RS Stock No.:
- 921-7320
- Mfr. Part No.:
- 824501241 / SMAJ24CA
- Manufacturer:
- Wurth Elektronik
350 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Price Each (In a Pack of 50)
MYR1.38
Units | Per Unit | Per Pack* |
|---|---|---|
| 50 - 200 | MYR1.38 | MYR69.00 |
| 250 - 450 | MYR1.311 | MYR65.55 |
| 500 + | MYR1.245 | MYR62.25 |
*price indicative
- RS Stock No.:
- 921-7320
- Mfr. Part No.:
- 824501241 / SMAJ24CA
- Manufacturer:
- Wurth Elektronik
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Bidirectional TVS Diodes, 400W, Wurth Elektronik
The Wurth Elektronik 400 W Bidirectional Power TVS Diodes are available in a range of operating voltages from 5 V dc up to 100 V dc.
- Low profile package
- Glass passivated junction
- Fast response time
- Glass passivated junction
- Fast response time
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Transient Voltage Suppressors, Wurth Elektronik
Specifications
Attribute | Value |
|---|---|
| Direction Type | Bi-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 38.9V |
| Minimum Breakdown Voltage | 28.1V |
| Mounting Type | Surface Mount |
| Package Type | DO-214AC (SMA) |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 400W |
| Maximum Peak Pulse Current | 10.3A |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -65 °C |
| Dimensions | 4.24 x 2.67 x 2.14mm |
| Maximum Operating Temperature | +150 °C |
| Length | 4.24mm |
| Width | 2.67mm |
| Height | 2.14mm |
| Maximum Reverse Leakage Current | 1µA |
| Test Current | 1mA |
