EPCOS, B82793 SMD Common Mode Choke with a Ferrite Core, 1 mH -30 → +50% Wire-Wound 700mA Idc
- RS Stock No.:
- 496-2542
- Mfr. Part No.:
- B82793C0105N265
- Manufacturer:
- EPCOS

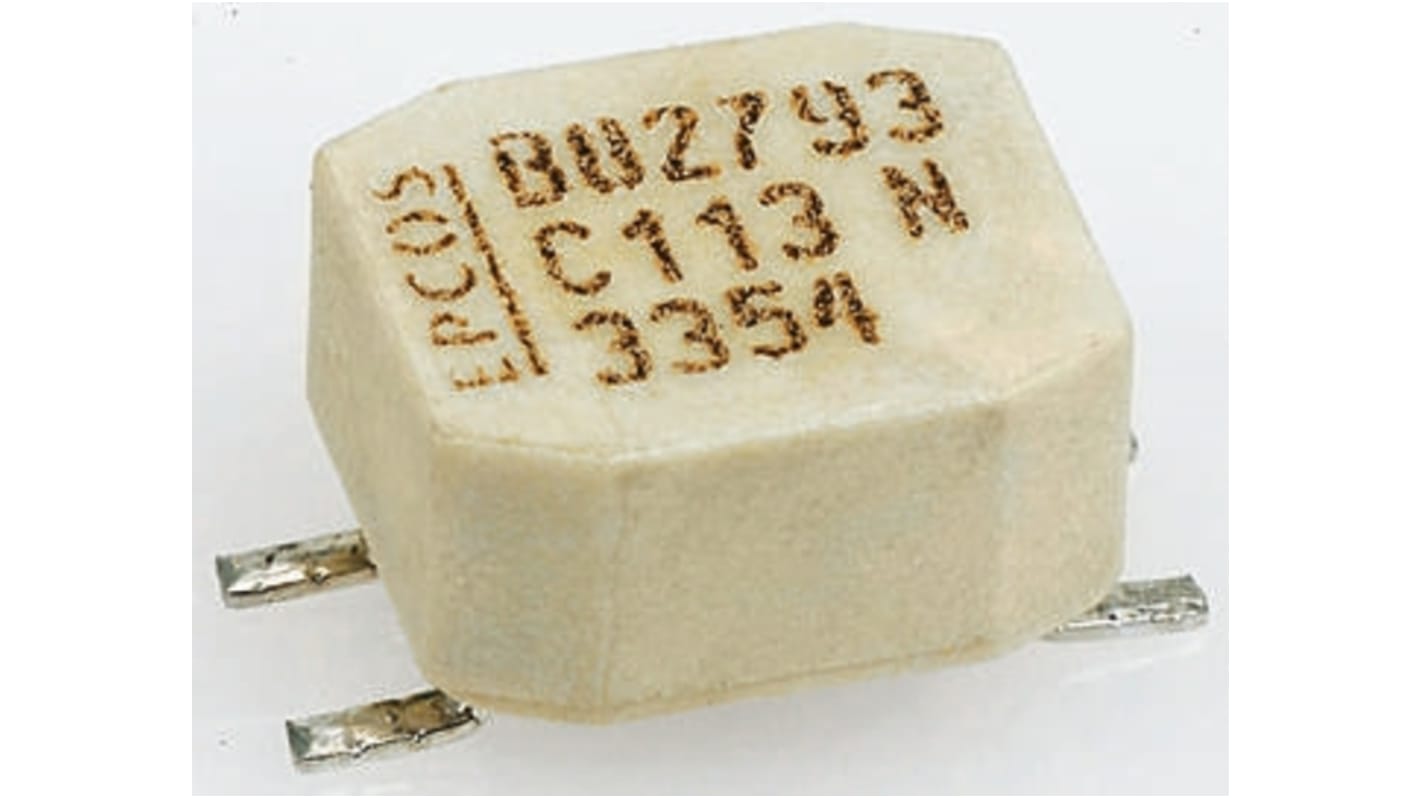

This image is representative of the product range
Bulk discount available
Subtotal (1 pack of 5 units)*
MYR35.15
FREE delivery for orders over RM 500.00
In Stock
- 25 unit(s) ready to ship from another location
- Plus 2,240 unit(s) shipping from 16 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 5 - 370 | MYR7.03 | MYR35.15 |
| 375 - 745 | MYR6.818 | MYR34.09 |
| 750 + | MYR6.616 | MYR33.08 |
*price indicative
- RS Stock No.:
- 496-2542
- Mfr. Part No.:
- B82793C0105N265
- Manufacturer:
- EPCOS
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EPCOS | |
| Inductance | 1 mH | |
| Maximum DC Current | 700mA | |
| Length | 9mm | |
| Depth | 6mm | |
| Height | 4.8mm | |
| Dimensions | 9 x 6 x 4.8mm | |
| Tolerance | -30 → +50% | |
| Maximum DC Resistance | 140mΩ | |
| Series | B82793 | |
| Core Material | Ferrite | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +125°C | |
| Inductor Construction | Wire-Wound | |
Select all | ||
|---|---|---|
Brand EPCOS | ||
Inductance 1 mH | ||
Maximum DC Current 700mA | ||
Length 9mm | ||
Depth 6mm | ||
Height 4.8mm | ||
Dimensions 9 x 6 x 4.8mm | ||
Tolerance -30 → +50% | ||
Maximum DC Resistance 140mΩ | ||
Series B82793 | ||
Core Material Ferrite | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +125°C | ||
Inductor Construction Wire-Wound | ||
Epcos B82793 Series SMD Common Mode Chokes
Current compensated ring core double choke with ferrite core suitable for industrial applications
B82793C versions have a bifilar winding suitable for suppression of asymmetric interference
B82793S versions have a sector winding suitable for suppression of both asymmetric interference (using LR) and symmetric interference (using LS) and can help to reduce high frequency EMC problems
Low component height
Flame retardant case to UL 94 V-0
Lead-free tinned terminals
B82793C versions have a bifilar winding suitable for suppression of asymmetric interference
B82793S versions have a sector winding suitable for suppression of both asymmetric interference (using LR) and symmetric interference (using LS) and can help to reduce high frequency EMC problems
Low component height
Flame retardant case to UL 94 V-0
Lead-free tinned terminals
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
Epcos SMD Common Mode Chokes
