RS PRO 1 F Supercapacitor -20 to 80 % Tolerance, RG 5.5 V, PCB

RS Stock No.:: 184-5032
Manufacturer:: RS PRO

RS PRO 1 F Supercapacitor -20 to 80 % Tolerance, RG 5.5 V, PCB

This image is representative of the product range

Subtotal (1 tray of 1600 units)*

MYR11,291.20

FREE delivery for orders over RM 500.00

Temporarily out of stock

Shipping from 18 September 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit	Per Tray*
1600 +	MYR7.057	MYR11,291.20

*price indicative

RS Stock No.:: 184-5032
Manufacturer:: RS PRO

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Product Type	Supercapacitor
	Capacitance	1F
	Voltage	5.5 V
	Mount Type	PCB
	Automotive Standard	No
	Polarity	Polar
	Leakage Current	0.02mA
	Minimum Operating Temperature	-40°C
	Pin Count	2
	Equivalent Series Resistance ESR	30Ω
	Maximum Operating Temperature	85°C
	Lifetime	200000 Cycles
	Standards/Approvals	ANSI/ESD S20.20:2014, BS EN 61340-5-1:2007
	Series	RG
	Tolerance	-20 to 80 %
	Capacitor Family	Electric Double Layer

	Select all
	Brand RS PRO
	Product Type Supercapacitor
	Capacitance 1F
	Voltage 5.5 V
	Mount Type PCB
	Automotive Standard No
	Polarity Polar
	Leakage Current 0.02mA
	Minimum Operating Temperature -40°C
	Pin Count 2
	Equivalent Series Resistance ESR 30Ω
	Maximum Operating Temperature 85°C
	Lifetime 200000 Cycles
	Standards/Approvals ANSI/ESD S20.20:2014, BS EN 61340-5-1:2007
	Series RG
	Tolerance -20 to 80 %
	Capacitor Family Electric Double Layer

COO (Country of Origin):: CN

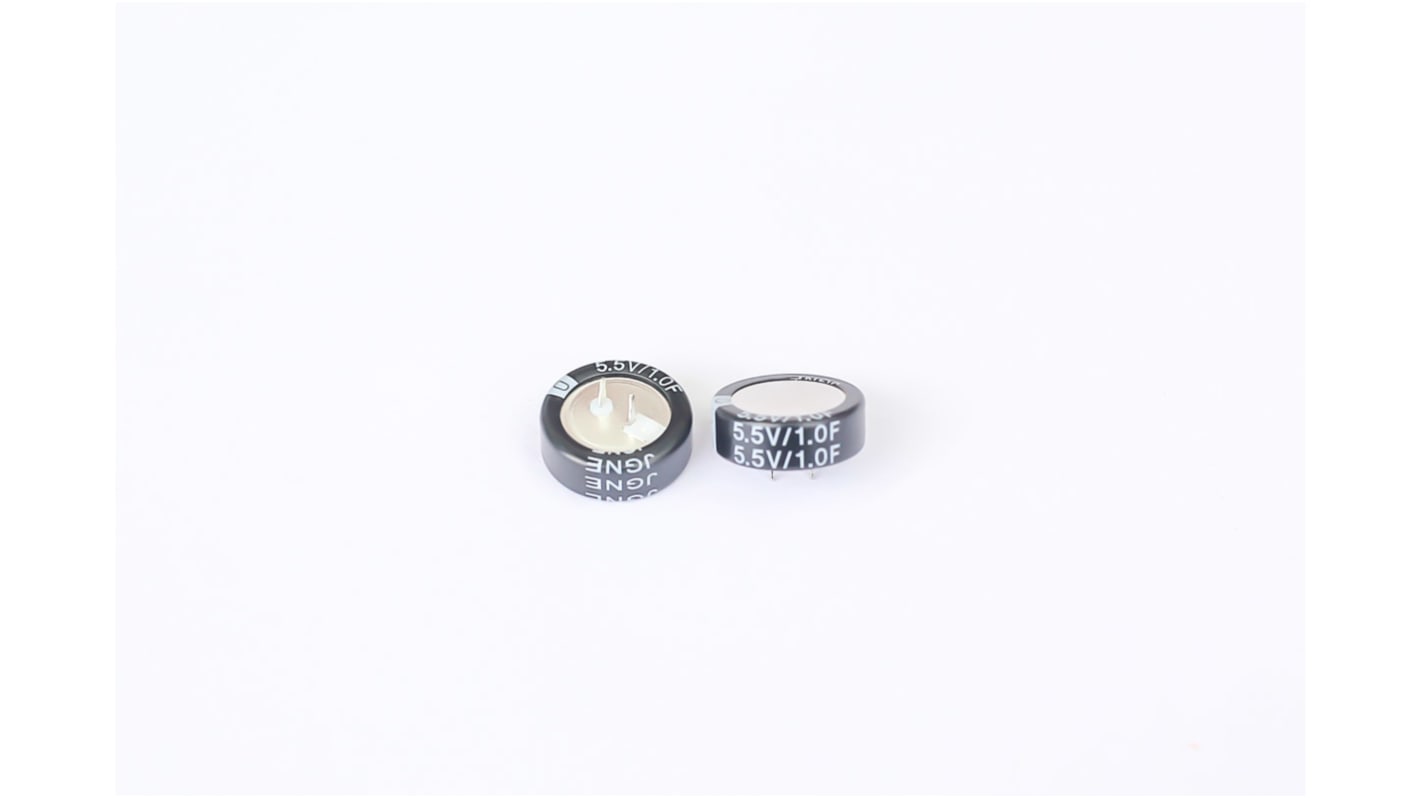

RS PRO EDLC Supercapacitor

The RS PRO 1F PCB mount EDLC supercapacitor has a voltage rating of 5.5V and leakage current (24h) of ≤0.02mA. This electric double layer capacitor is suitable for applications like general industrial equipment.

Features and Benefits

• Tolerance of -20% to 80%

• Operating temperature ranges from -40°C to 70°C

• AC impedance of 20ohm and DC impedance of 30ohm

Applications

• UPS (backup power supplies)

• Solar battery operated circuits

• Motor drives (quick charging) base stations

• Electronic meters

Certifications

• ANSI/ESD S20.20:2014

• BS EN 61340-5-1:2007
