RS PRO 1 F Supercapacitor -20 to 80 % Tolerance, SG 5.5V dc, PCB
- RS Stock No.:
- 184-5511
- Manufacturer:
- RS PRO

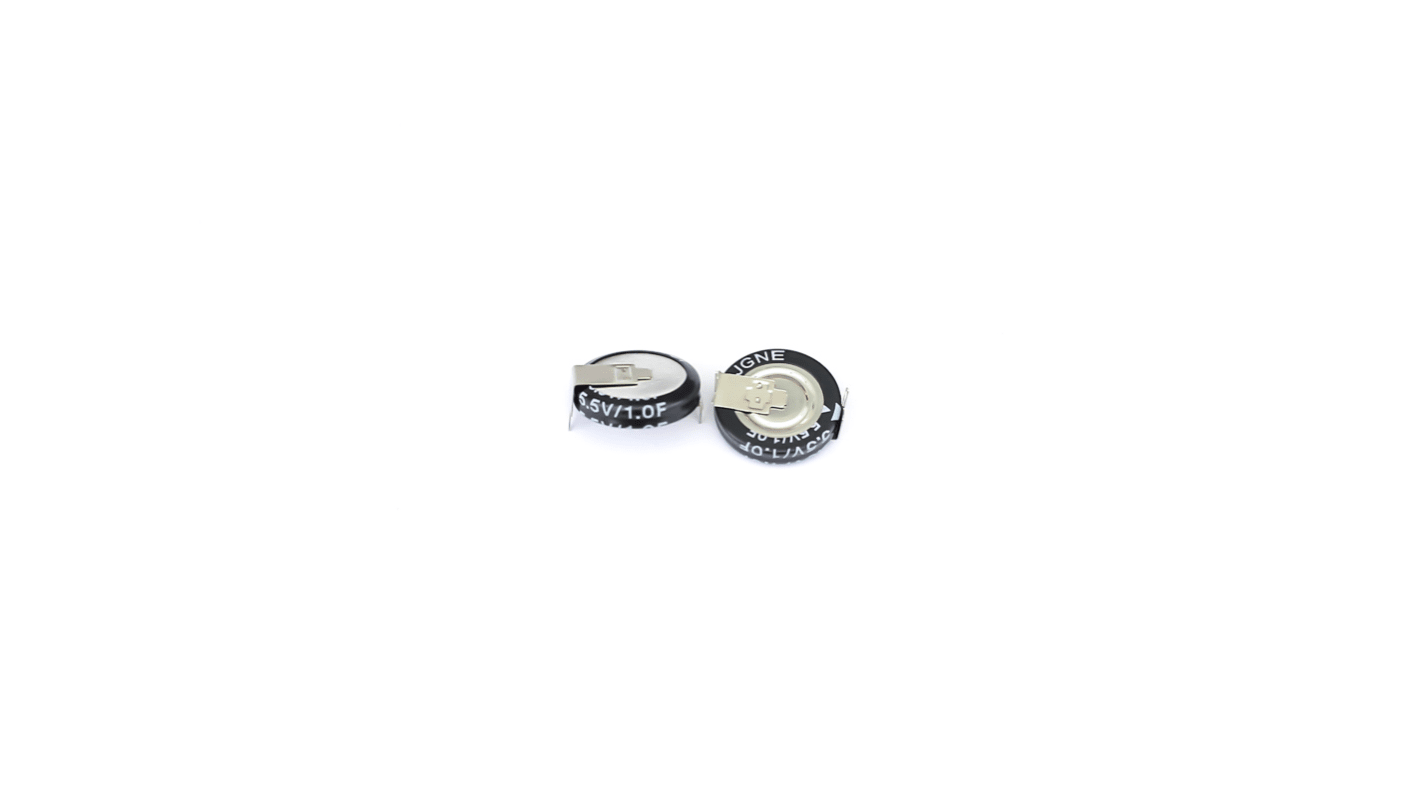

This image is representative of the product range
Bulk discount available
Subtotal (1 pack of 5 units)*
MYR35.76
FREE delivery for orders over RM 500.00
In Stock
- 85 unit(s) ready to ship from another location
- Plus 450 unit(s) shipping from 29 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 5 - 715 | MYR7.152 | MYR35.76 |
| 720 - 3595 | MYR5.04 | MYR25.20 |
| 3600 + | MYR4.15 | MYR20.75 |
*price indicative
- RS Stock No.:
- 184-5511
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Capacitance | 1F | |
| Product Type | Supercapacitor | |
| Voltage | 5.5V dc | |
| Mount Type | PCB | |
| Automotive Standard | No | |
| Polarity | Polar | |
| Diameter | 19mm | |
| Lead Pitch | 19mm | |
| Leakage Current | 0.02mA | |
| Minimum Operating Temperature | -40°C | |
| Pin Count | 2 | |
| Equivalent Series Resistance ESR | 30Ω | |
| Maximum Operating Temperature | 70°C | |
| Lifetime | 200000 Cycles | |
| Standards/Approvals | BS EN 61340-5-1:2007, ANSI/ESD S20.20:2014 | |
| Series | SG | |
| Height | 9.2mm | |
| Tolerance | -20 to 80 % | |
| Capacitor Family | Electric Double Layer | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Capacitance 1F | ||
Product Type Supercapacitor | ||
Voltage 5.5V dc | ||
Mount Type PCB | ||
Automotive Standard No | ||
Polarity Polar | ||
Diameter 19mm | ||
Lead Pitch 19mm | ||
Leakage Current 0.02mA | ||
Minimum Operating Temperature -40°C | ||
Pin Count 2 | ||
Equivalent Series Resistance ESR 30Ω | ||
Maximum Operating Temperature 70°C | ||
Lifetime 200000 Cycles | ||
Standards/Approvals BS EN 61340-5-1:2007, ANSI/ESD S20.20:2014 | ||
Series SG | ||
Height 9.2mm | ||
Tolerance -20 to 80 % | ||
Capacitor Family Electric Double Layer | ||
- COO (Country of Origin):
- CN
RS PRO EDLC Supercapacitor
The RS PRO SG series 1F horizontal PCB mount EDLC supercapacitor has a voltage rating of 5.5V and leakage current (24h) of ≤0.02mA. This electric double layer capacitor is suitable for applications like general industrial equipment.
Features and Benefits
• AC Impedance of 20ohm and DC Impedance of 75ohm
• Operating temperature ranges between -40°C and 70°C
• Tolerance of -20 % to 80 %
Applications
• UPS (backup power supplies)
• Solar battery operated circuits
• Motor drives (quick charging) base stations
• Electronic meters
