RS PRO 0.68 μF Supercapacitor -20 to 80 % Tolerance 5.5 V, PCB

RS Stock No.:: 184-5033
Manufacturer:: RS PRO

RS PRO 0.68 μF Supercapacitor -20 to 80 % Tolerance 5.5 V, PCB

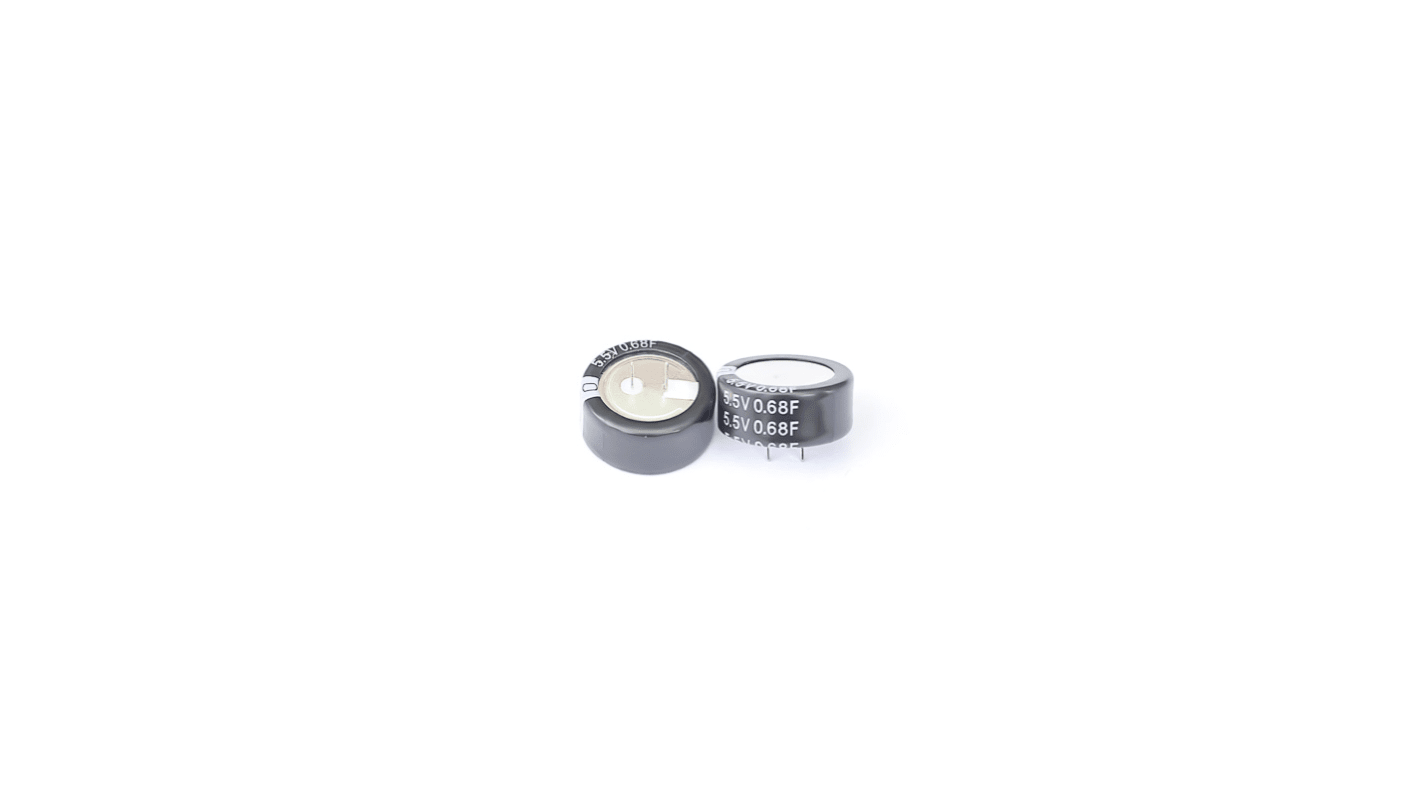

This image is representative of the product range

Bulk discount available

Subtotal (1 tray of 1600 units)*

MYR10,707.20

FREE delivery for orders over RM 500.00

Temporarily out of stock

Shipping from 17 September 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit	Per Tray*
1600 - 1600	MYR6.692	MYR10,707.20
3200 - 14400	MYR6.545	MYR10,472.00
16000 +	MYR5.387	MYR8,619.20

*price indicative

RS Stock No.:: 184-5033
Manufacturer:: RS PRO

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Capacitance	0.68μF
	Product Type	Supercapacitor
	Voltage	5.5 V
	Mount Type	PCB
	Polarity	Polar
	Automotive Standard	No
	Leakage Current	0.02mA
	Equivalent Series Resistance ESR	45mΩ
	Pin Count	2
	Minimum Operating Temperature	-40°C
	Lifetime	200000 Cycles
	Maximum Operating Temperature	85°C
	Standards/Approvals	ANSI/ESD S20.20:2014, BS EN 61340-5-1:2007
	Tolerance	-20 to 80 %
	Capacitor Family	Electric Double Layer

	Select all
	Brand RS PRO
	Capacitance 0.68μF
	Product Type Supercapacitor
	Voltage 5.5 V
	Mount Type PCB
	Polarity Polar
	Automotive Standard No
	Leakage Current 0.02mA
	Equivalent Series Resistance ESR 45mΩ
	Pin Count 2
	Minimum Operating Temperature -40°C
	Lifetime 200000 Cycles
	Maximum Operating Temperature 85°C
	Standards/Approvals ANSI/ESD S20.20:2014, BS EN 61340-5-1:2007
	Tolerance -20 to 80 %
	Capacitor Family Electric Double Layer

COO (Country of Origin):: CN

RS PRO EDLC Supercapacitor

The RS PRO 0.68F PCB mount EDLC supercapacitor has a voltage rating of 5.5V and leakage current (24h) of ≤0.02mA. This electric double layer capacitor is suitable for applications like general industrial equipment.

Features and Benefits

• Tolerance of -20% to 80%

• Operating temperature ranges from -40°C to 85°C

• AC impedance of 30ohm and DC impedance of 45ohm

Applications

• UPS (backup power supplies)

• Solar battery operated circuits

• Motor drives (quick charging) base stations

• Electronic meters

Certifications

• ANSI/ESD S20.20:2014

• BS EN 61340-5-1:2007
