    Aim-TTi TGR6000 RF Signal Generator, 10mHz min, 6GHz max

    Aim-TTi
    RS Stock No.:
    737-7183
    Mfr. Part No.:
    TGR6000
    Manufacturer:
    Aim-TTi
    View all RF Signal Generators
    3 In Global stock for delivery within 4 - 6 working days
    Add to Basket
    units

    Added

    Price Each

    MYR24,734.21

    unitsPer Unit
    1 +MYR24,734.21
    RS Stock No.:
    737-7183
    Mfr. Part No.:
    TGR6000
    Manufacturer:
    Aim-TTi

    Legislation and Compliance

    COO (Country of Origin):
    GB

    Product Details

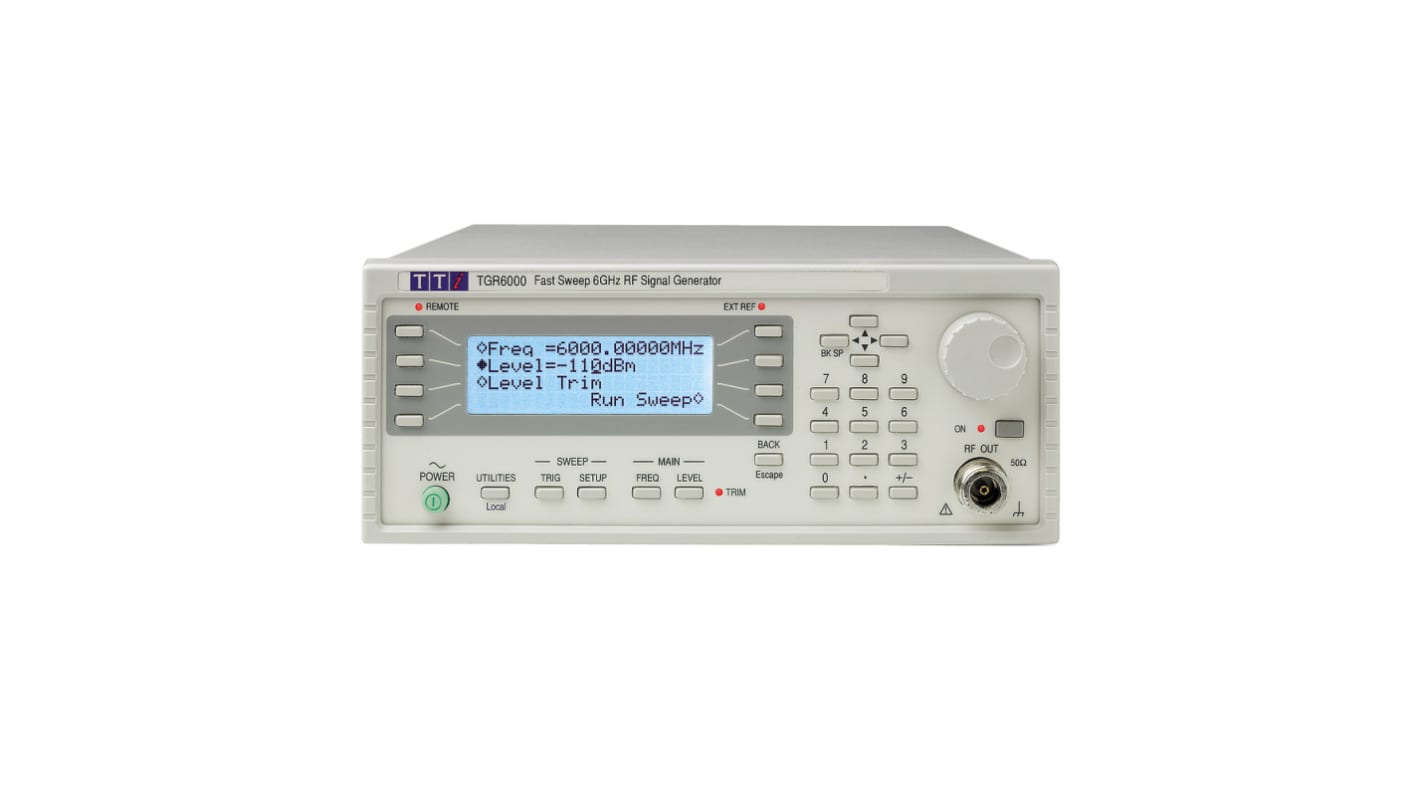

    Aim-TTi RF Signal Generator


    The Aim-TTi RF Signal Generator is high tech, single-channel, RF signal generator. This device supports frequencies from 10MHz to 6GHz. It is a low-cost signal generator intended for carrier wave applications where modulation is not required. The generator is simple and intuitive to use. There is a provision to directly enter frequency and level from the keyboard in any units preferred. Alternatively, values can be changed in user-defined increments using the spin wheel or up/ down keys. The 4 line display has soft key functionality for setting up more complex functions such as sweep lists.
    Supplied with operating manual, driver software, power lead.

    Features and Benefits


    Accuracy better than 1ppm over 15°C to 30°C
    Ageing better than 1ppm over 1 year
    The supply voltage ranging from 100VAC to 240VAC
    External frequency reference input
    Low phase noise and low leakage
    Fast stepping sweep with dwell times down to 10 millisecond
    List sweep of up to 1000 points of amplitude vs frequency
    User compensation tables for specific test set-ups
    Storage for 12 generator set-ups and 16 sweep lists
    Compact half-rack 2U casing uses minimum bench space
    Incorporates full remote control using USB, RS-232, GPIB and LAN (Ethernet) interfaces
    Significantly lower cost than other 6GHz generators
    20 character x 4 row backlit alphanumeric LCD

    Applications


    Telecommunication
    Electronics laboratories
    Educational institutes
    Electronics designing
    Service and maintenance

    Certifications


    ANSI/ESD S20.20:2014
    BS EN 61340-5-1:2007


    Specifications

    Attribute
    Value
    Model NumberTGR6000
    Frequency Resolution10Hz
    Maximum Frequency Range Sinewave6GHz
    Minimum Frequency Range Sinewave10mHz
    Time Base Accuracy<±1ppm
    Output Impedance50Ω
    Interface TypeGPIB, LAN, RS232, USB
