Honeywell Technologies NBPLLNN015PAUNV Piezoresistive Pressure SensorBoard SMT
- RS Stock No.:
- 226-9710
- Mfr. Part No.:
- NBPLLNN015PAUNV
- Manufacturer:
- Honeywell

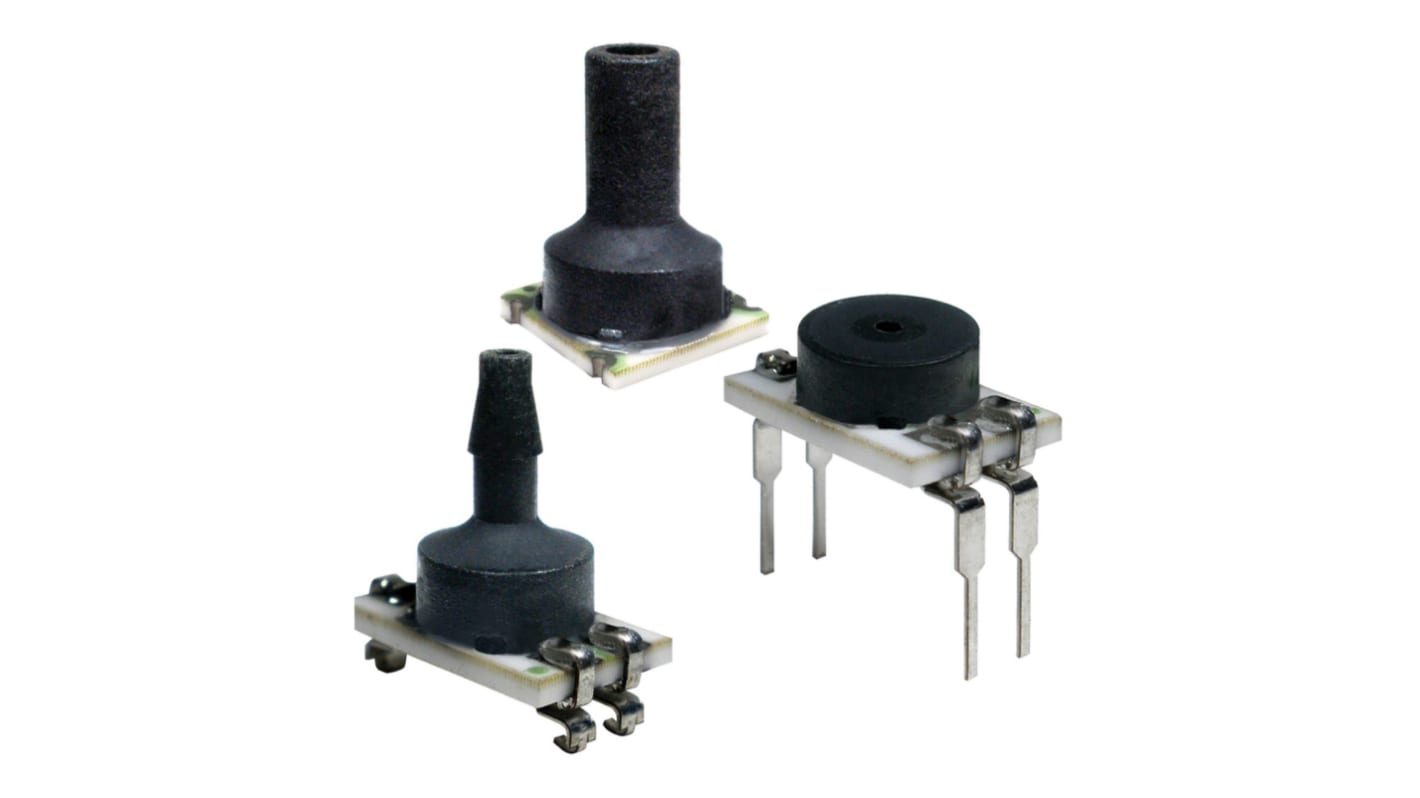

This image is representative of the product range
Get a bulk buy discount
Add 10 more to save MYR39.90
View bulk pricing optionsSubtotal (1 unit)*
MYR132.26
FREE delivery for orders over RM 150.00
Being discontinued
- Final 97 unit(s), ready to ship from another location
Units | Per Unit | Saving |
|---|---|---|
| 1 - 9 | MYR132.26 | - |
| 10 - 24 | MYR128.27 | MYR39.90 |
| 25 - 49 | MYR123.77 | MYR212.25 |
| 50 + | MYR118.83 | MYR671.50 |
*price indicative
- RS Stock No.:
- 226-9710
- Mfr. Part No.:
- NBPLLNN015PAUNV
- Manufacturer:
- Honeywell
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Honeywell | |
| Product Type | Piezoresistive Pressure Sensor | |
| Sensor Type | Piezoresistive Pressure Sensor | |
| Typical Sensitivity | 15mV/kPa | |
| Mount Type | Board | |
| Package Type | SMT | |
| Minimum Supply Voltage | 1.8V | |
| Maximum Operating Pressure | 103 kPa | |
| Maximum Supply Voltage | 12V | |
| Accuracy | ±0.25 % | |
| Port Type | Single Axial Barbless | |
| Maximum Operating Temperature | 125°C | |
| Series | NBP | |
| Length | 7mm | |
| Standards/Approvals | NSF-169 | |
| Width | 7mm | |
| Height | 10.94mm | |
| Minimum Operating Pressure | 0psi | |
| Minimum Operating Temperature | -40°C | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Honeywell | ||
Product Type Piezoresistive Pressure Sensor | ||
Sensor Type Piezoresistive Pressure Sensor | ||
Typical Sensitivity 15mV/kPa | ||
Mount Type Board | ||
Package Type SMT | ||
Minimum Supply Voltage 1.8V | ||
Maximum Operating Pressure 103 kPa | ||
Maximum Supply Voltage 12V | ||
Accuracy ±0.25 % | ||
Port Type Single Axial Barbless | ||
Maximum Operating Temperature 125°C | ||
Series NBP | ||
Length 7mm | ||
Standards/Approvals NSF-169 | ||
Width 7mm | ||
Height 10.94mm | ||
Minimum Operating Pressure 0psi | ||
Minimum Operating Temperature -40°C | ||
Automotive Standard No | ||
Honeywell NBP Series Piezoresistive Pressure Sensor, 103kPa Maximum Operating Pressure, 1.8V Minimum Supply Voltage - NBPLLNN015PAUNV
This piezoresistive pressure sensor converts applied pressure into an electrical signal for board-level integration in control and monitoring systems. It is designed for low-voltage environments and operates across a wide ambient temperature range, making it suitable for industrial applications where compact, repeatable pressure measurement is required.
Features and Benefits:
• ±0.25% accuracy delivers precise measurement for tight-control systems
• 15 mV/kPa sensitivity enables clear electrical resolution of pressure changes
• 1.8 V minimum supply permits operation from low-voltage sources
• Single axial barbless port allows straightforward media connection
• -40 °C to 125 °C operating range supports harsh-temperature installations
• 15 mV/kPa sensitivity enables clear electrical resolution of pressure changes
• 1.8 V minimum supply permits operation from low-voltage sources
• Single axial barbless port allows straightforward media connection
• -40 °C to 125 °C operating range supports harsh-temperature installations
Applications
• Suitable for medical fluid monitoring on Compact assemblies
• Ideal for HVAC control boards requiring accurate pressure feedback
• Used for process monitoring in foodservice equipment requiring approvals
• Can be used for pneumatic pressure sensing on Compact devices
• Ideal for HVAC control boards requiring accurate pressure feedback
• Used for process monitoring in foodservice equipment requiring approvals
• Can be used for pneumatic pressure sensing on Compact devices
What mounting method does it use?
It is designed for board mounting to integrate directly with printed circuit boards.
What supply voltage limits must be observed?
The device operates from a minimum of 1.8 V up to a maximum of 12 V supply.
What pressure range can it measure?
It measures from 0 psi up to a maximum operating pressure of 103 kPa.
What environmental approvals are relevant for sanitary applications?
It holds NSF-169 approval, indicating suitability for certain foodservice applications.
How Compact is the device for space-constrained designs?
The package measures 7 mm in width and 10.94 mm in height for tight installations.
