MikroElektronika BATT-MAN 2 Click Power Management Unit (PMU) for MAX77654 for mikroBUS socket

View this category

Subtotal (1 unit)*

MYR161.24

Add to Basket
Select or type quantity
In Stock
  • 7 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
1 +MYR161.24

*price indicative

RS Stock No.:
247-5727
Mfr. Part No.:
MIKROE-4837
Manufacturer:
MikroElektronika
Find similar products by selecting one or more attributes.
Select all

Brand

MikroElektronika

Power Management Function

Power Management Unit (PMU)

For Use With

mikroBUS socket

Kit Classification

Add On Board

Featured Device

MAX77654

Kit Name

BATT-MAN 2 Click

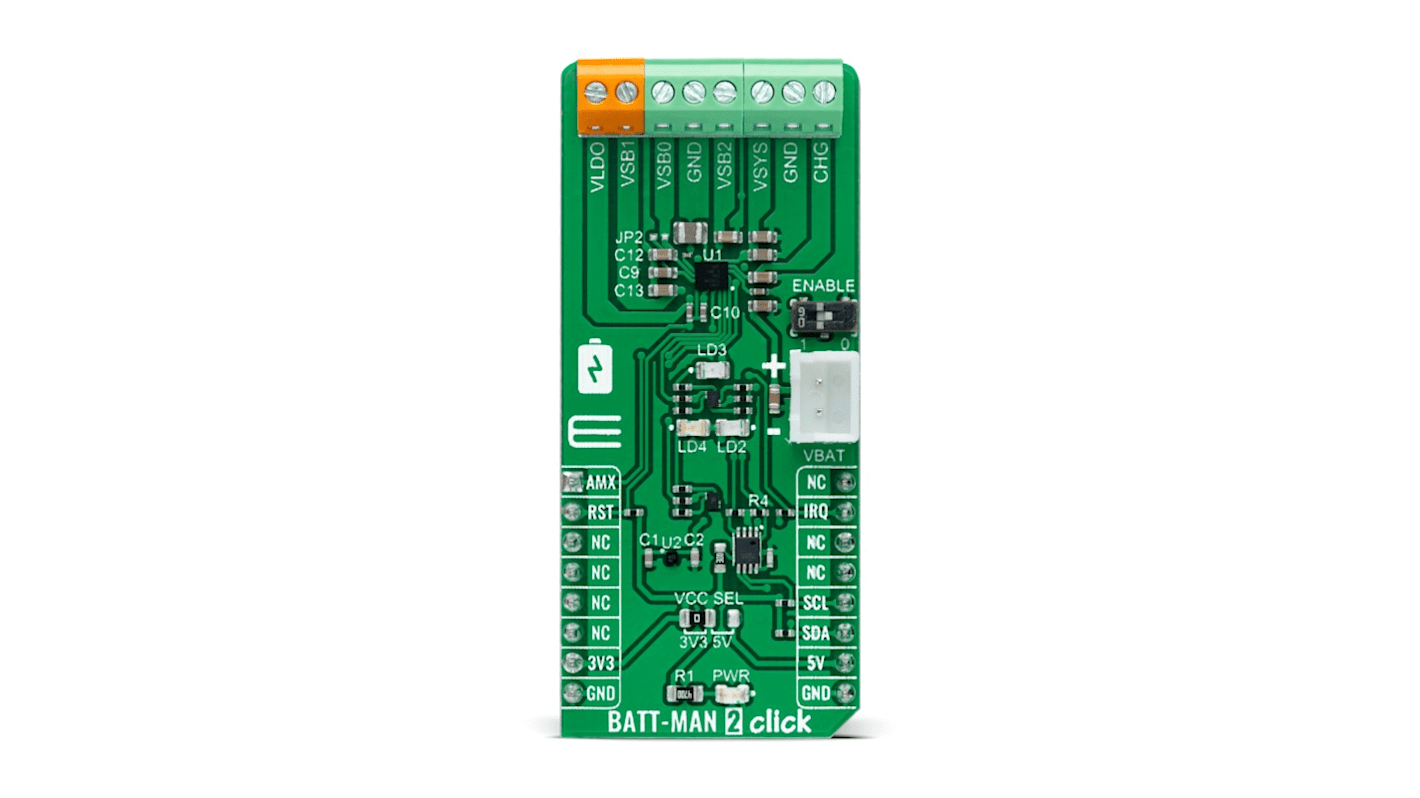

The The MikroElektronika's BATT MAN 2 Click is a compact add on board representing an advanced battery and power management solution. This board features the MAX77654, a single inductor, multiple output SIMO power management IC PMIC from Analog Devices. This I2C programmable board features a buck boost regulator that provides three independently programmable power rails from a single inductor. Also, it has one 100mA LDO output with ripple rejection for audio and other noise sensitive applications and a highly configurable linear charger that supports a wide range of Li+ battery capacities featuring battery temperature monitoring for additional safety JEITA. This Click board is suitable as a battery charging and power supply solution for low power applications where size and efficiency are critical.

3 x Buck-Boost outputs
1 x LDO output
Low power consumption
DC charging source
Charger optimized for small battery size
Flexible and configurable interface
Analog MUX output for power monitoring
