Vishay PE30 10kΩ Rotary Potentiometer 1-Gang Panel Mount, PE30L0FR103KAB
- RS Stock No.:
- 790-4293
- Mfr. Part No.:
- PE30L0FR103KAB
- Manufacturer:
- Vishay

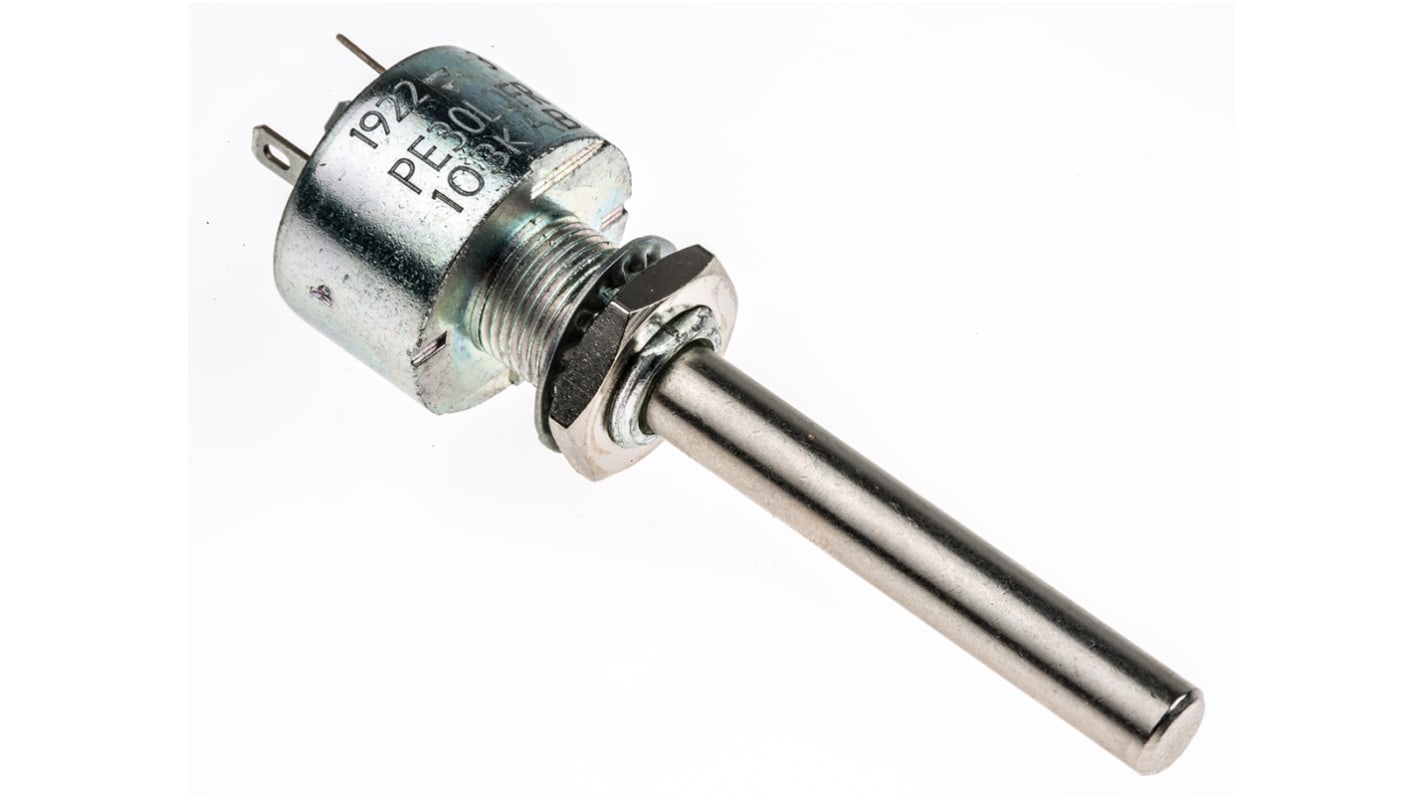

This image is representative of the product range
Bulk discount available
Subtotal (1 unit)*
MYR225.81
FREE delivery for orders over RM 500.00
In Stock
- Plus 56 unit(s) shipping from 10 November 2025
- Plus 27 unit(s) shipping from 17 November 2025
- Plus 100 unit(s) shipping from 28 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 2 | MYR225.81 |
| 3 - 4 | MYR214.36 |
| 5 + | MYR202.16 |
*price indicative
- RS Stock No.:
- 790-4293
- Mfr. Part No.:
- PE30L0FR103KAB
- Manufacturer:
- Vishay
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Potentiometer Type | Rotary | |
| Maximum Resistance | 10kΩ | |
| Number of Gangs | 1 | |
| Number of Turns | 1 | |
| Power Rating | 3W | |
| Electrical Taper | Linear | |
| Element Material | Cermet | |
| Mounting Type | Panel Mount | |
| Termination Style | Solder Lug | |
| Shaft Length | 50mm | |
| Shaft Diameter | 6 mm | |
| Tolerance | ±10% | |
| Actuator Type | Round Shaft | |
| Series | PE30 | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Potentiometer Type Rotary | ||
Maximum Resistance 10kΩ | ||
Number of Gangs 1 | ||
Number of Turns 1 | ||
Power Rating 3W | ||
Electrical Taper Linear | ||
Element Material Cermet | ||
Mounting Type Panel Mount | ||
Termination Style Solder Lug | ||
Shaft Length 50mm | ||
Shaft Diameter 6 mm | ||
Tolerance ±10% | ||
Actuator Type Round Shaft | ||
Series PE30 | ||
Vishay IP67 rated Military / Professional Grade Potentiometer - PE30 Series
Vishay brings you a range of brilliant potentiometers. These potentiometers are of the highest build quality and make great use in military and professional situations. They feature a fully sealed body and an IP67 rating making them great use in every scenario. These potentiometers feature a cermet element with through-hole mounting.
Features and Benefits:
19.7mm ᴓ Body
High power ratings at 70°C
Excellent thermal stability
Robust construction, fully sealed IP67
Terminations for 0.11in. receptacles, 0.5mm thick
Contact resistance variation 3% or 3Ω, whichever is greater
Insulation resistance 106MΩ at 500Vdc
Environmental class 55/125/56
High power ratings at 70°C
Excellent thermal stability
Robust construction, fully sealed IP67
Terminations for 0.11in. receptacles, 0.5mm thick
Contact resistance variation 3% or 3Ω, whichever is greater
Insulation resistance 106MΩ at 500Vdc
Environmental class 55/125/56
Note
Shaft dimension measurement includes bush
Supplied with
mounting nut and lock washer
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
