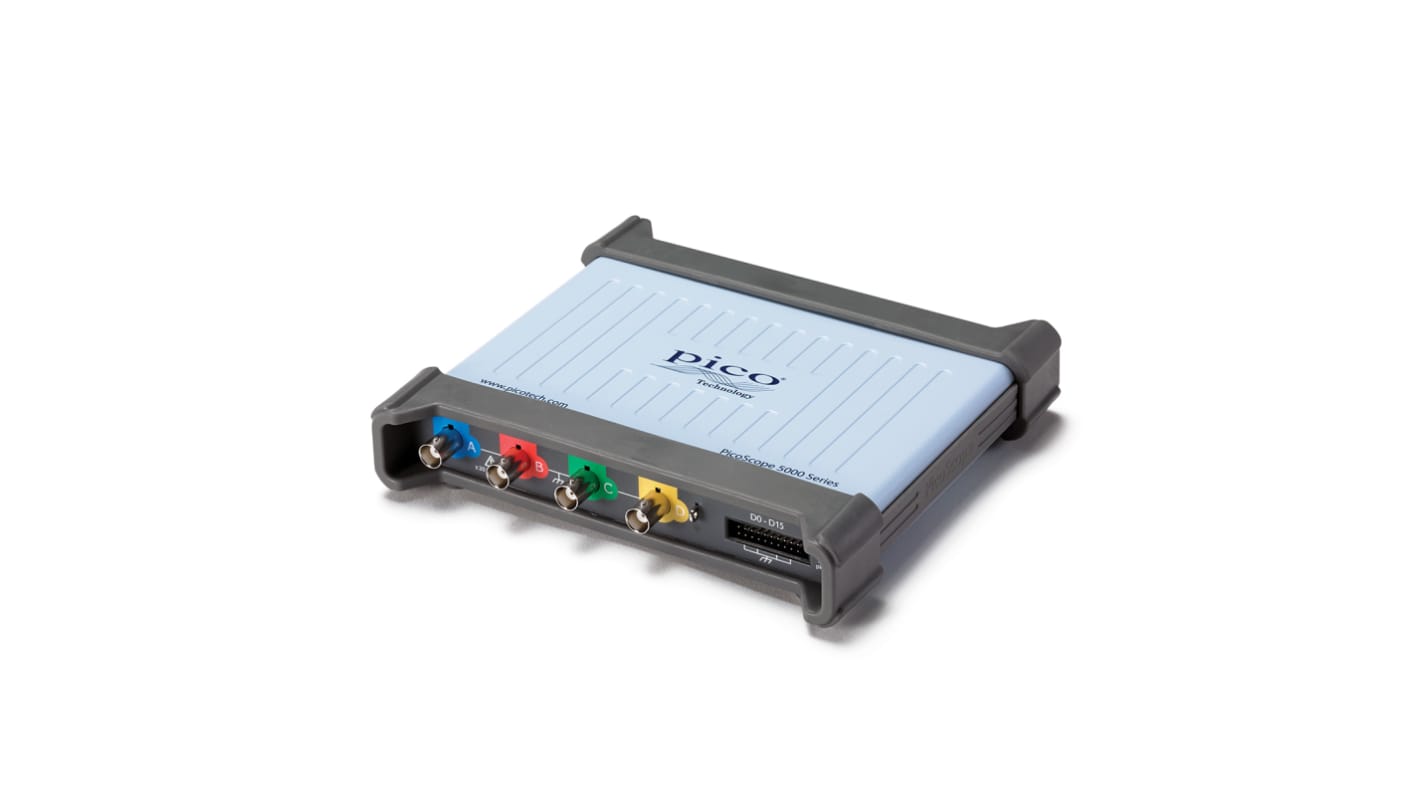

PicoScope 5000D Series, 60 MHz PC Based Oscilloscope 20-Channel

RS Stock No.:: 174-9598
Distrelec Article No.:: 301-11-502
Mfr. Part No.:: PicoScope 5442D MSO
Manufacturer:: Pico Technology

PicoScope 5000D Series, 60 MHz PC Based Oscilloscope 20-Channel

View all Oscilloscopes

Subtotal (1 unit)*

MYR10,015.84

FREE delivery for orders over RM 150.00

In Stock

3 unit(s) ready to ship from another location
Plus 1 unit(s) shipping from 11 November 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	MYR10,015.84

*price indicative

RS Stock No.:: 174-9598
Distrelec Article No.:: 301-11-502
Mfr. Part No.:: PicoScope 5442D MSO
Manufacturer:: Pico Technology

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Pico Technology
	Product Type	Oscilloscope
	Bandwidth	60MHz
	Number of Channels	20
	Model Number	PicoScope 5442D MSO
	Oscilloscope Type	PC Based
	Interface Type	CAN, LIN, RS232, RS422, RS485, SPI, UART, USB
	Series	PicoScope 5000D
	Height	40mm
	Width	170mm
	Standards/Approvals	RoHS, WEEE
	Length	190mm
	Minimum Vertical Sensitivity	2mV/div
	Maximum Time Base	5000s/div
	Rise Time	5.8ns
	Vertical Resolution	16 bit
	Maximum Vertical Sensitivity	4V/div
	Minimum Time Base	1ns/div
	Power Source	USB

	Select all
	Brand Pico Technology
	Product Type Oscilloscope
	Bandwidth 60MHz
	Number of Channels 20
	Model Number PicoScope 5442D MSO
	Oscilloscope Type PC Based
	Interface Type CAN, LIN, RS232, RS422, RS485, SPI, UART, USB
	Series PicoScope 5000D
	Height 40mm
	Width 170mm
	Standards/Approvals RoHS, WEEE
	Length 190mm
	Minimum Vertical Sensitivity 2mV/div
	Maximum Time Base 5000s/div
	Rise Time 5.8ns
	Vertical Resolution 16 bit
	Maximum Vertical Sensitivity 4V/div
	Minimum Time Base 1ns/div
	Power Source USB

COO (Country of Origin):: GB

PicoScope 5000D Series Oscilloscope, 60MHz Bandwidth, 16-bit Vertical Resolution - PicoScope 5442D MSO

This oscilloscope is a PC-based mixed-signal instrument designed for detailed electrical signal analysis. It connects via USB for power and data, supporting a wide range of serial interfaces to capture analogue and digital activity. The instrument is tailored for tasks requiring high dynamic range and multiple concurrent channels while operating on a host computer.

Features and Benefits:

• 16-bit vertical resolution delivers finer amplitude detail for measurements
• 60MHz bandwidth preserves signal content up to high frequencies
• 1ns/div timebase enables precise timing of fast events
• 5.8ns rise time resolves Rapid edge transitions accurately
• 20 simultaneous channels capture complex multi-signal interactions

Applications

• Suitable for automotive signal analysis with CAN and LIN
• Ideal for serial bus diagnostics including SPI and UART
• Used for testing RS232, RS422 and RS485 communication links
• Can be used for mixed analogue and digital prototype validation
• Used with USB-connected setups for Compact bench workflows

How is the device powered during field use?

It is powered through the USB connection to the host computer, removing the need for an external supply.

Which interfaces allow it to inspect vehicle networks?

It supports CAN and LIN interfaces suitable for vehicle network signal capture.

How many channels are available for simultaneous acquisition?

The instrument provides twenty channels for concurrent analogue and digital measurements.

What classification of oscilloscope is this for integration with analysis software?

It is a PC-based oscilloscope that relies on the host computer for display and processing.

What environmental standards does the unit comply with?

It meets RoHS and WEEE directives for material and disposal considerations.
