Fluke 177 Handheld Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 1000V ac Max
- RS Stock No.:
- 394-4486
- Mfr. Part No.:
- Fluke 177
- Manufacturer:
- Fluke
View all Multimeters
6 In stock in Singapore for delivery within 2 working days
Price Each
MYR2,559.00
| units | Per Unit |
| 1 + | MYR2,559.00 |
- RS Stock No.:
- 394-4486
- Mfr. Part No.:
- Fluke 177
- Manufacturer:
- Fluke
RoHS Status: Not Applicable
Legislation and Compliance
RoHS Status: Not Applicable
Product Details

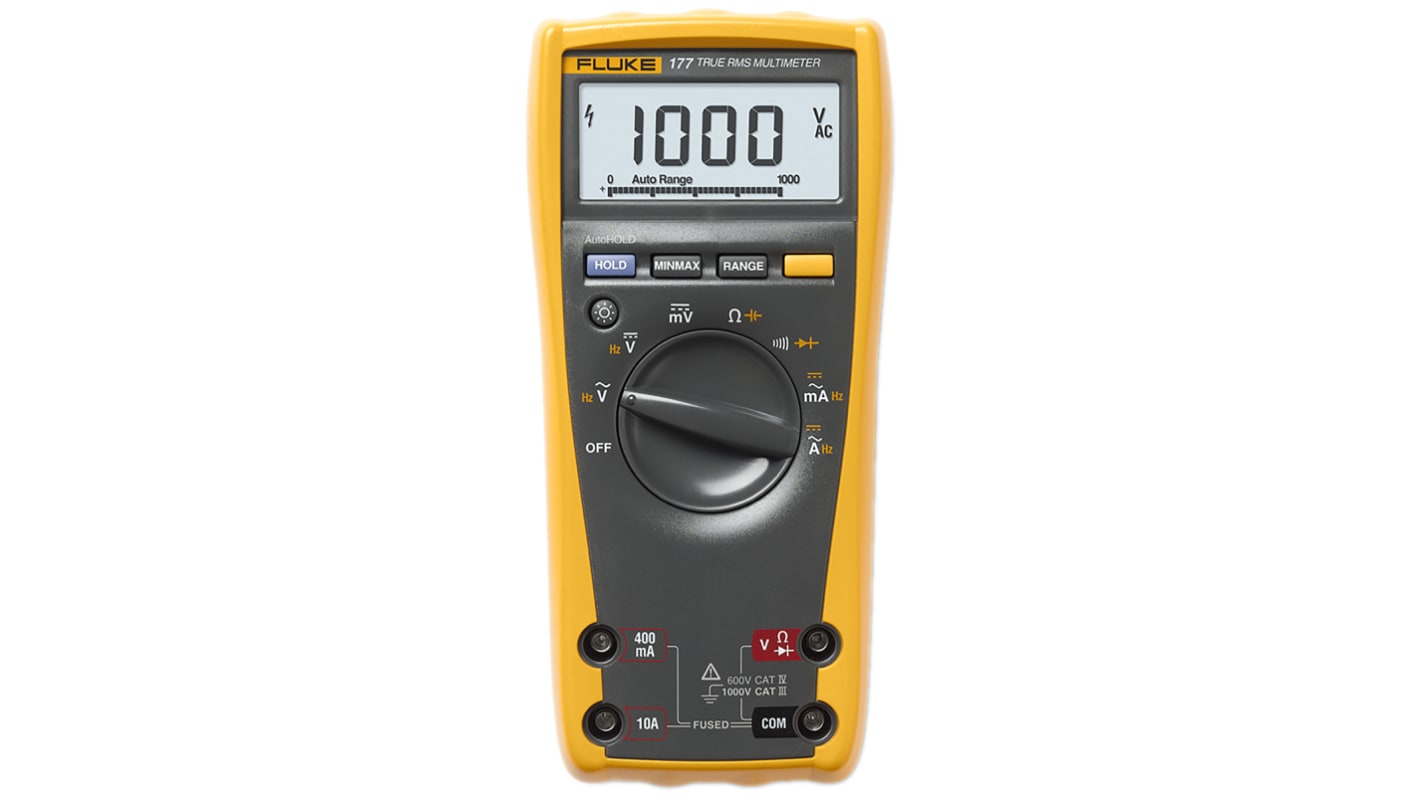

Fluke 177 True-RMS Digital Multimeter
Brought to you by Fluke, the 177 model is part of the versatile 170 series of Digital Multimeters. Suitable for a variety of measurement applications, the 177 is supplied with a TL76 test lead, instruction manual and 9v alkaline batteries. This model also features a display backlight for easier measurement reading.
Fluke 177 Features and Benefits
• 6000 count LCD with 33 segment bargraph
• True rms (a.c.) measurement
• EN61010-1 safety standard compliance to Cat IV 600V & Cat III 1000V
• Resistance, continuity and diode measurement
• Capacitance measurement up to 10000μF
• Frequency measurement up to 100kHz
• Min/Max/Average recording
• Display and Auto Hold
• Separate battery and fuses access without breaking the calibration seal
• Compatible with Fluke Toolpak™ magnetic hook and strap hanger kit (stock no. 331-7402)
• True rms (a.c.) measurement
• EN61010-1 safety standard compliance to Cat IV 600V & Cat III 1000V
• Resistance, continuity and diode measurement
• Capacitance measurement up to 10000μF
• Frequency measurement up to 100kHz
• Min/Max/Average recording
• Display and Auto Hold
• Separate battery and fuses access without breaking the calibration seal
• Compatible with Fluke Toolpak™ magnetic hook and strap hanger kit (stock no. 331-7402)
Additional Specifications
• DC Current Accuracy: ±1 %
• DC Current Digits: +3 D
• DC Current Lowest Range: 60mA
• DC Current Highest Range: 10A
• DC Current Lowest Resolution;0.01mA
• AC Current Accuracy: ±1.5%
• AC Current Digits: +3 D
• AC Current Lowest Range: 60mA
• AC Current Highest Range: 10 A
• AC Current Lowest Resolution: 0.01mA
• AC Current Max Frequency: 1kHz
• Resistance Accuracy: ±0.9% / ±0.7%
• Resistance Digits: +1 D / + 2 D
• DC Current Digits: +3 D
• DC Current Lowest Range: 60mA
• DC Current Highest Range: 10A
• DC Current Lowest Resolution;0.01mA
• AC Current Accuracy: ±1.5%
• AC Current Digits: +3 D
• AC Current Lowest Range: 60mA
• AC Current Highest Range: 10 A
• AC Current Lowest Resolution: 0.01mA
• AC Current Max Frequency: 1kHz
• Resistance Accuracy: ±0.9% / ±0.7%
• Resistance Digits: +1 D / + 2 D
Typical Applications
Fluke Digital Multimeters are a standard diagnostic tool and an ideal choice for technicians in the electrical/electronic industries. The 177 model measures AC and DC voltage 1000V and True-RMS AC current and voltage plus frequency, capacitance, resistance, continuity and diode measurements.
Supplied with
Fluke 177 Digital Mutlimeter
(1 pair) Test leads
9V Battery (Installed)
Quick reference guide
(1 pair) Test leads
9V Battery (Installed)
Quick reference guide
FLUKE Multimeter, 420g Weight, 100kHz Frequency Measurement Capacity - 170 Series - FLUKE 177
Features & Benefits
• Integrated fuse provides short-circuit protection for improved safety
• 6000-count LCD display for clear and precise readings
• Wide operating temperature range between -10°C and +50°C for use in demanding conditions
• Hold button freezes readings for convenient record keeping
• Light weight of 420g makes it easy to handle
• 6000-count LCD display for clear and precise readings
• Wide operating temperature range between -10°C and +50°C for use in demanding conditions
• Hold button freezes readings for convenient record keeping
• Light weight of 420g makes it easy to handle
Applications
• Robotics and automation systems
• Food processing plants
• Transportation industry
• Food processing plants
• Transportation industry
What's the power source of this multimeter?
This tool is powered by a 9V pre-installed battery that offers up to 200 hours of operating life, assuring you of long-term performance.
Specifications
| Attribute | Value |
| Multimeter Type | Handheld |
| True RMS | Yes |
| Functions Measured | AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance |
| Absolute Maximum DC Current Measurement | 10A dc |
| Absolute Maximum AC Current Measurement | 10A ac |
| Absolute Maximum Resistance Measurement | 50MΩ |
| Absolute Maximum DC Voltage Measurement | 1000V dc |
| Absolute Maximum AC Voltage Measurement | 1000V ac |
| Absolute Maximum Capacitance Measurement | 9.999F |
| Maximum Frequency | 1kHz |
| Display Type | Digital |
| Model Number p | 177 |
| DC Current Measurement Resolution | 0.01mA dc |
| AC Current Measurement Resolution | 0.01mA ac |
| Resistance Measurement Resolution | 100mΩ |
| AC Voltage Measurement Resolution | 0.1mV ac |
| DC Voltage Measurement Resolution | 0.1mV dc |
| Safety Category Level | CAT III, CAT IV |
| Capacitance Measurement Resolution | 1nF |
| Dimensions | 185 x 90 x 43mm |
| Maximum Operating Temperature | +50°C |
| Best AC Current Accuracy | ±1.5% + 3 Digits |
| Width | 90mm |
| Best DC Voltage Accuracy | ±0.1% + 2 Digits |
| Best DC Current Accuracy | ±1% + 3 Digits |
| Height | 43mm |
| Minimum Operating Temperature | -10°C |
| Best Capacitance Measurement Accuracy | ±10 % |
| Best AC Voltage Accuracy | ±1% + 3 Digits |
| Weight | 420g |
| Battery Life | 200 h |
| Length | 185mm |
| Safety Category Voltage | 600 V, 1000V |
| Best Resistance Measurement Accuracy | ±1.5% + 3 Digits |
