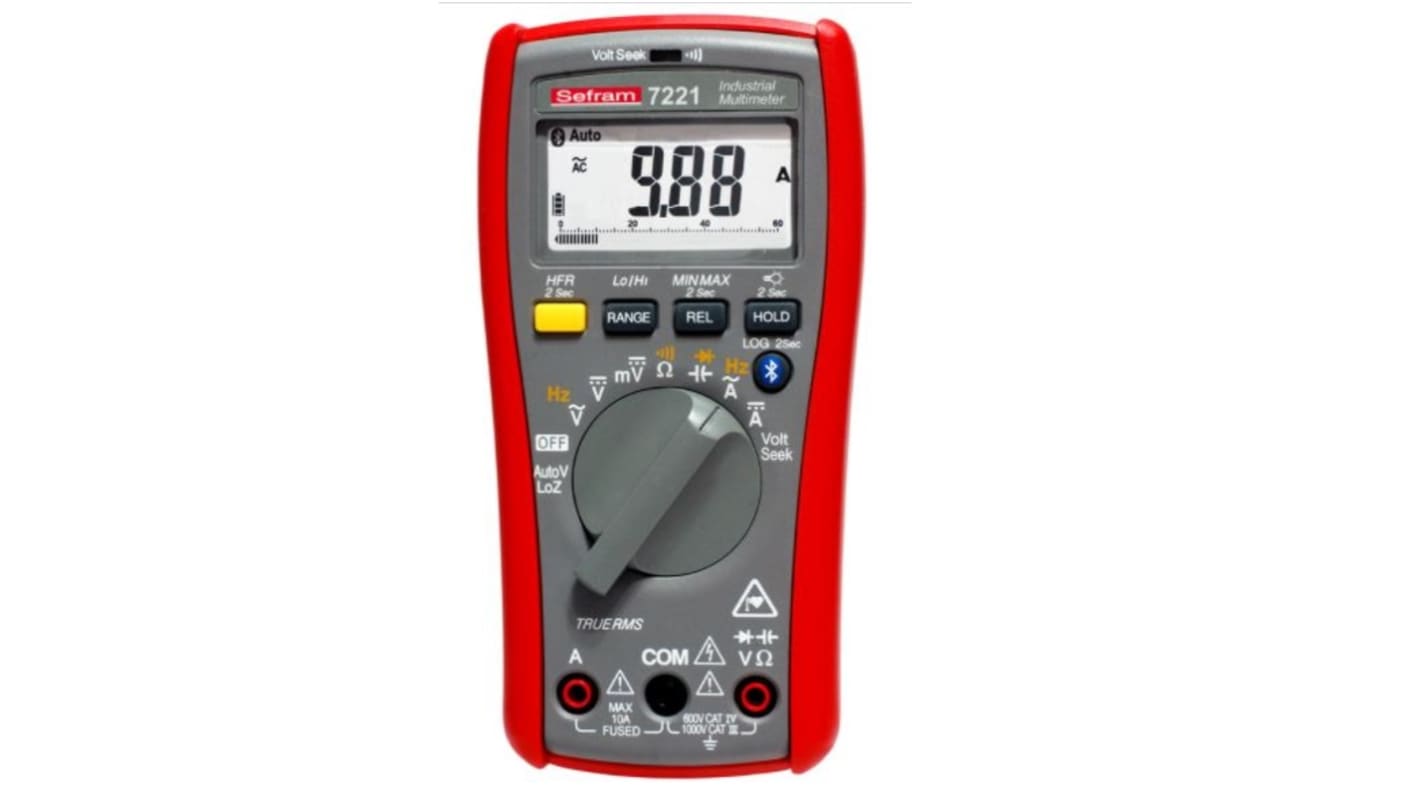

Name: Sefram 7221 Handheld Digital Multimeter True RMS, 10 A Max, 1000 V ac Max
Brand: Sefram
SKU: 217-5203
Price: 1083.36 MYR
Availability: Discontinued

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Sefram
	Multimeter Type	Handheld
	Product Type	Multimeter
	Display Type	Digital
	Model Number	7221
	Functions Measured	Continuity, Capacitance, AC Voltage, AC Current, Resistance, DC Current, Frequency, DC Voltage
	Maximum AC Voltage Measurement	1000V ac
	Maximum DC Voltage Measurement	1000V
	Maximum DC Current Measurement	10A
	Maximum Resistance Measurement	40mΩ
	True RMS	Yes
	AC Voltage Accuracy	±1 % rdg + 5 Digits
	DC Voltage Accuracy	±0.5 % rdg + 5 Digits
	DC Voltage Resolution	0.1 mV
	AC Voltage Resolution	0.1mV
	DC Current Resolution	0.001A
	Power Source	Battery
	Resistance Measurement Accuracy	±0.9% + 5 Digits
	Minimum Operating Temperature	-10°C
	Maximum Operating Temperature	50°C
	Standards/Approvals	No
	Length	44mm
	Weight	250g
	Width	74 mm
	Height	156mm
	Safety Category Level	CAT IV, CAT III
	Battery Type	AA
	Safety Category Voltage	1000V

	Select all
	Brand Sefram
	Multimeter Type Handheld
	Product Type Multimeter
	Display Type Digital
	Model Number 7221
	Functions Measured Continuity, Capacitance, AC Voltage, AC Current, Resistance, DC Current, Frequency, DC Voltage
	Maximum AC Voltage Measurement 1000V ac
	Maximum DC Voltage Measurement 1000V
	Maximum DC Current Measurement 10A
	Maximum Resistance Measurement 40mΩ
	True RMS Yes
	AC Voltage Accuracy ±1 % rdg + 5 Digits
	DC Voltage Accuracy ±0.5 % rdg + 5 Digits
	DC Voltage Resolution 0.1 mV
	AC Voltage Resolution 0.1mV
	DC Current Resolution 0.001A
	Power Source Battery
	Resistance Measurement Accuracy ±0.9% + 5 Digits
	Minimum Operating Temperature -10°C
	Maximum Operating Temperature 50°C
	Standards/Approvals No
	Length 44mm
	Weight 250g
	Width 74 mm
	Height 156mm
	Safety Category Level CAT IV, CAT III
	Battery Type AA
	Safety Category Voltage 1000V

Datasheet - SEFRAM7221

COO (Country of Origin):: TW

The SEFRAM 7221 mustimeter integrate a data logger allowing the recording of 4000 values, with the possibility to configure the measurement rate. This

function will be very useful for monitoring parameters. The mustimeter SEFRAM 7221 have a simple and intuitive interface to access the various menus and advanced functions. All basic measurements (V, A Ω, ...) have direct access. With their Bluetooth interface and the SEFRAM Connect App dedicated to tablets and smartphones (Android or iOS), you can follow your measurements, download in real time, consult the memory, etc.

Frequency and capacity measurement

Resistance measurement up to 40 Moms

Continuity with buzzer

Volt Sense function

Bluetooth

Temperature measurement with thermocouple type K (7223)

Dual LCD display, with bar graph and backlight (7221 - 7223)

Data logger (7221 - 7223)

Android App and iOS App: SEFRAM Connect (free)

Safety: 600V CAT IV and 1000V CAT III

Sefram 7221 Handheld Digital Multimeter True RMS, 10 A Max, 1000 V ac Max
