ROHM RZM002P02 Type P-Channel MOSFET, 200 mA, 20 V Enhancement, 3-Pin SOT-723 RZM002P02T2L

RS Stock No.:: 124-6846
Mfr. Part No.:: RZM002P02T2L
Manufacturer:: ROHM

ROHM RZM002P02 Type P-Channel MOSFET, 200 mA, 20 V Enhancement, 3-Pin SOT-723 RZM002P02T2L

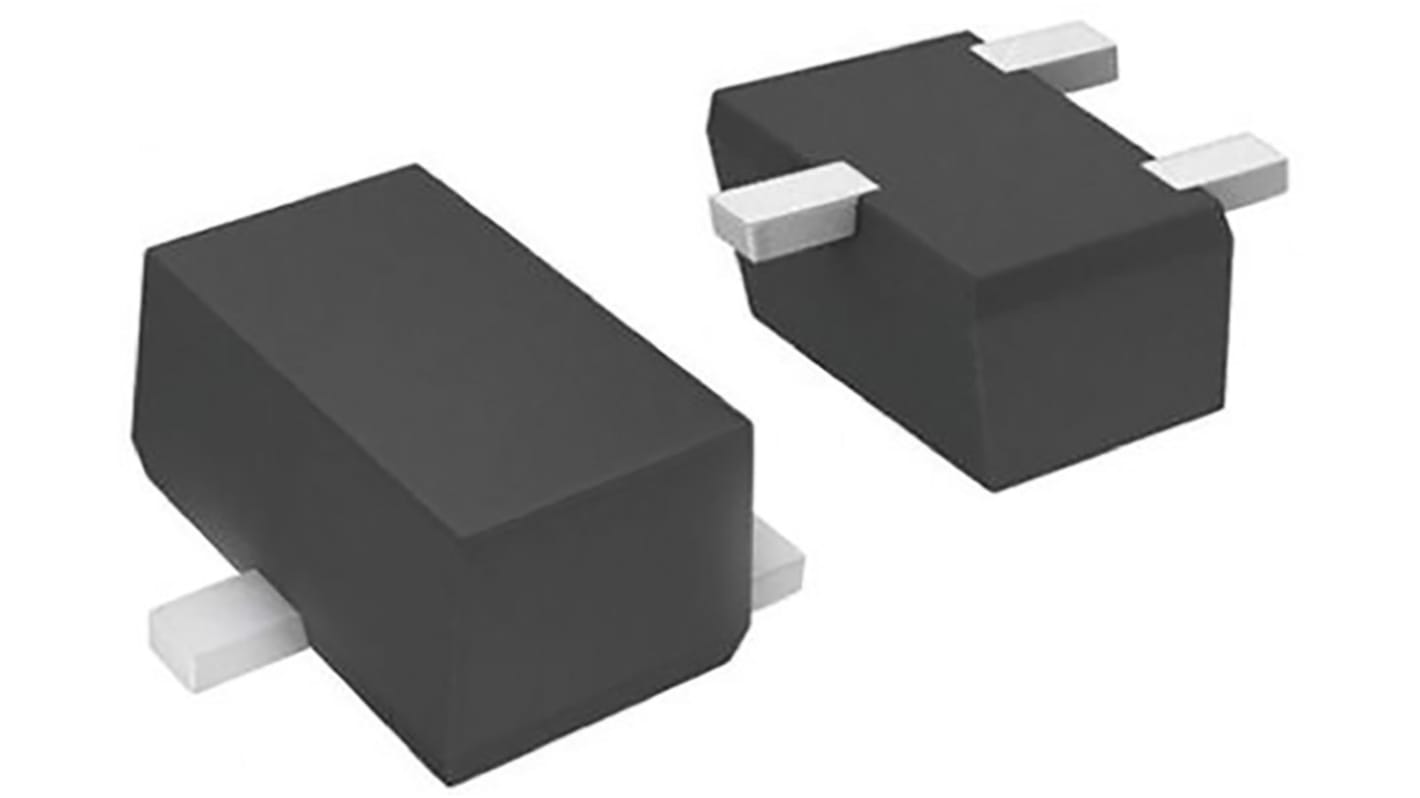

This image is representative of the product range

Currently unavailable

We don't know if this item will be back in stock, RS intend to remove it from our range soon.

RS Stock No.:: 124-6846
Mfr. Part No.:: RZM002P02T2L
Manufacturer:: ROHM

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	ROHM
	Channel Type	Type P
	Product Type	MOSFET
	Maximum Continuous Drain Current Id	200mA
	Maximum Drain Source Voltage Vds	20V
	Series	RZM002P02
	Package Type	SOT-723
	Mount Type	Surface
	Pin Count	3
	Maximum Drain Source Resistance Rds	9.6Ω
	Channel Mode	Enhancement
	Forward Voltage Vf	-1.2V
	Maximum Gate Source Voltage Vgs	10 V
	Minimum Operating Temperature	-55°C
	Typical Gate Charge Qg @ Vgs	1.4nC
	Maximum Power Dissipation Pd	150mW
	Maximum Operating Temperature	150°C
	Height	0.45mm
	Width	0.9 mm
	Standards/Approvals	No
	Length	1.3mm
	Automotive Standard	No

	Select all
	Brand ROHM
	Channel Type Type P
	Product Type MOSFET
	Maximum Continuous Drain Current Id 200mA
	Maximum Drain Source Voltage Vds 20V
	Series RZM002P02
	Package Type SOT-723
	Mount Type Surface
	Pin Count 3
	Maximum Drain Source Resistance Rds 9.6Ω
	Channel Mode Enhancement
	Forward Voltage Vf -1.2V
	Maximum Gate Source Voltage Vgs 10 V
	Minimum Operating Temperature -55°C
	Typical Gate Charge Qg @ Vgs 1.4nC
	Maximum Power Dissipation Pd 150mW
	Maximum Operating Temperature 150°C
	Height 0.45mm
	Width 0.9 mm
	Standards/Approvals No
	Length 1.3mm
	Automotive Standard No

ROHM RZM002P02 Type P-Channel MOSFET, 200 mA, 20 V Enhancement, 3-Pin SOT-723 RZM002P02T2L

P-Channel MOSFET Transistors, ROHM

MOSFET Transistors, ROHM Semiconductor
