Texas Instruments CD4011UBE, Quad 2-Input NAND Logic Gate, 14-Pin PDIP

RS Stock No.:: 923-6801
Mfr. Part No.:: CD4011UBE
Manufacturer:: Texas Instruments

Texas Instruments CD4011UBE, Quad 2-Input NAND Logic Gate, 14-Pin PDIP

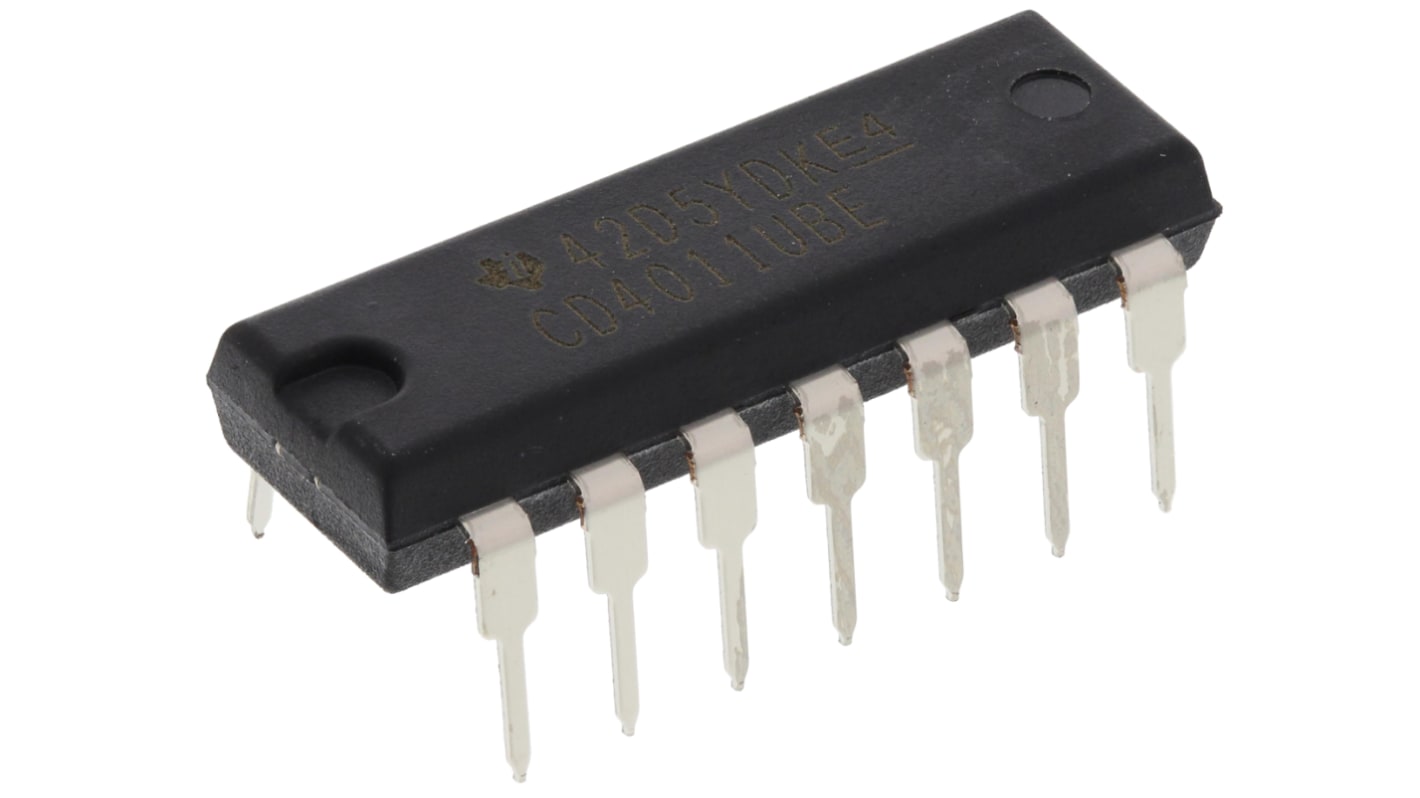

This image is representative of the product range

Bulk discount available

Subtotal (1 tube of 25 units)**

MYR54.45

200 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over MYR700.00

Units	Per Unit	Per Tube**
25 - 25	MYR2.178	MYR54.45
50 - 75	MYR2.13	MYR53.25
100 +	MYR2.09	MYR52.25

**price indicative

RS Stock No.:: 923-6801
Mfr. Part No.:: CD4011UBE
Manufacturer:: Texas Instruments

ESD Control Selection Guide V1

Attribute	Value
Logic Function	NAND
Mounting Type	Through Hole
Number of Elements	4
Number of Inputs per Gate	2
Schmitt Trigger Input	No
Package Type	PDIP
Pin Count	14
Logic Family	4000
Maximum Operating Supply Voltage	18 V
Maximum High Level Output Current	-4.2mA
Maximum Propagation Delay Time @ Maximum CL	120 ns @ 5 V, 50 ns @ 15 V, 60 ns @ 10 V
Minimum Operating Supply Voltage	3 V
Maximum Low Level Output Current	4.2mA
Width	6.35mm
Height	4.57mm
Dimensions	19.3 x 6.35 x 4.57mm
Propagation Delay Test Condition	50pF
Length	19.3mm
Maximum Operating Temperature	+125 °C
Minimum Operating Temperature	-55 °C
