Texas Instruments CD4011BE, Quad 2-Input NAND Logic Gate, 14-Pin PDIP

RS Stock No.:: 526-537
Mfr. Part No.:: CD4011BE
Manufacturer:: Texas Instruments

Texas Instruments CD4011BE, Quad 2-Input NAND Logic Gate, 14-Pin PDIP

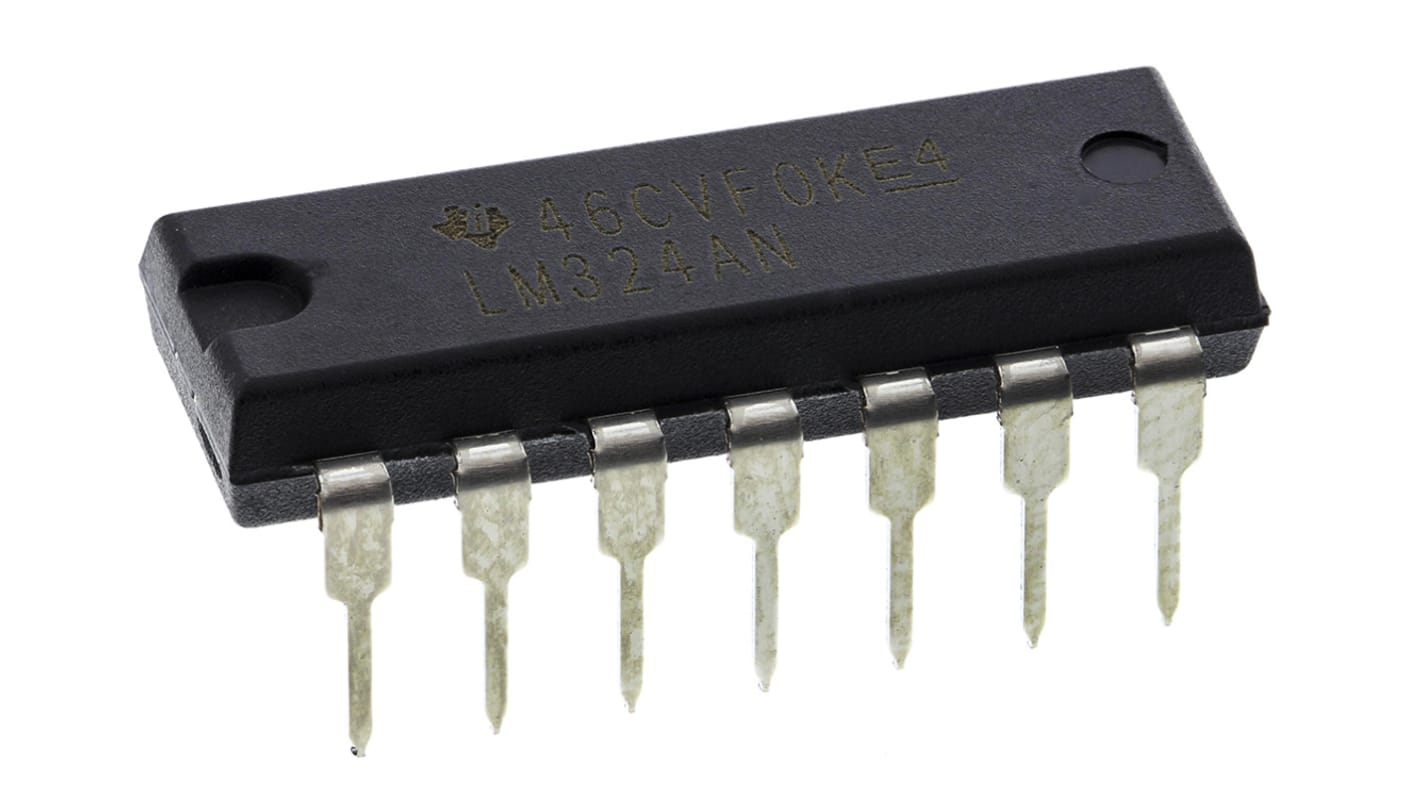

This image is representative of the product range

Bulk discount available

Price Each (In a Tube of 25)**

MYR2.622

1450 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over MYR700.00

Units	Per Unit	Per Tube**
25 - 100	MYR2.622	MYR65.55
125 - 475	MYR2.543	MYR63.575
500 - 1225	MYR2.468	MYR61.70
1250 - 6225	MYR2.394	MYR59.85
6250 +	MYR1.97	MYR49.25

**price indicative

RS Stock No.:: 526-537
Mfr. Part No.:: CD4011BE
Manufacturer:: Texas Instruments

ESD Control Selection Guide V1

Attribute	Value
Logic Function	NAND
Mounting Type	Through Hole
Number of Elements	4
Number of Inputs per Gate	2
Schmitt Trigger Input	No
Package Type	PDIP
Pin Count	14
Logic Family	4000
Maximum Operating Supply Voltage	18 V
Maximum High Level Output Current	-4.2mA
Maximum Propagation Delay Time @ Maximum CL	120 ns @ 10 V, 250 ns @ 5 V, 90 ns @ 15 V
Minimum Operating Supply Voltage	3 V
Maximum Low Level Output Current	4.2mA
Minimum Operating Temperature	-55 °C
Maximum Operating Temperature	+125 °C
Dimensions	19.3 x 6.35 x 4.57mm
Height	4.57mm
Propagation Delay Test Condition	50pF
Length	19.3mm
Width	6.35mm
