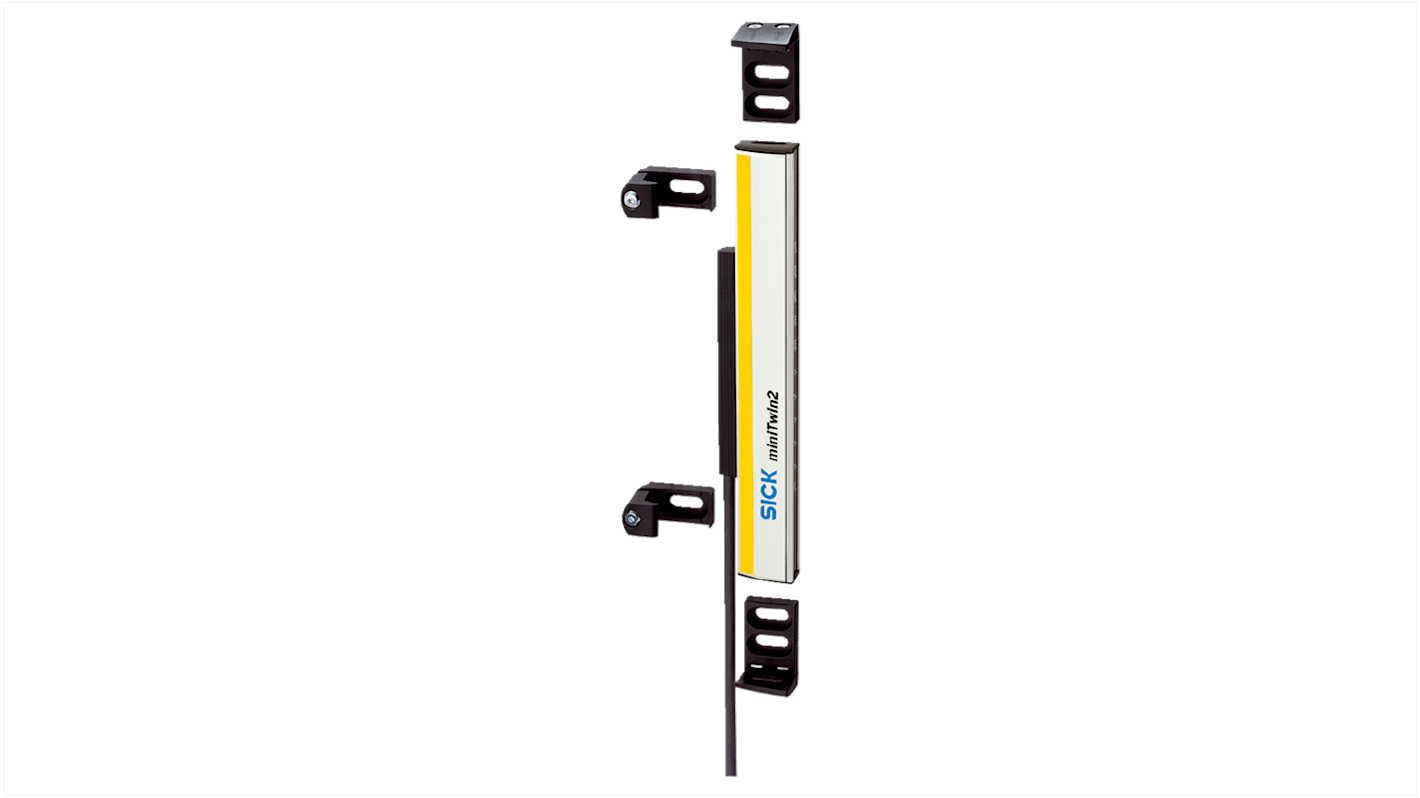

SICK C2MT Series Light Curtain, 24 mm Resolution

RS Stock No.:: 285-0965
Mfr. Part No.:: C2MT-01224BBC03BE0
Manufacturer:: SICK

Subtotal (1 unit)*

MYR2,377.50

FREE delivery for orders over RM 150.00

In Stock

Plus 1 unit(s) shipping from 19 October 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	MYR2,377.50

*price indicative

RS Stock No.:: 285-0965
Mfr. Part No.:: C2MT-01224BBC03BE0
Manufacturer:: SICK

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	SICK
	Product Type	Light Curtain
	Series	C2MT
	Beam Resolution	24mm
	Safety Type	2
	Standards/Approvals	ACMA, CE, cUL, EC-Type-Examination, GB, GB/T, IEC, Moroccan, OSHA, RoHS, UKCA, cULus
	Protective Height	120mm
	Maximum Supply Voltage	24V
	Minimum Scanning Distance	6m
	Maximum Scanning Distance	8m
	Length	32mm
	Maximum Response Time	13ms
	Height	120mm
	Width	15mm
	Terminal Type	M12 Male Connector

	Select all
	Brand SICK
	Product Type Light Curtain
	Series C2MT
	Beam Resolution 24mm
	Safety Type 2
	Standards/Approvals ACMA, CE, cUL, EC-Type-Examination, GB, GB/T, IEC, Moroccan, OSHA, RoHS, UKCA, cULus
	Protective Height 120mm
	Maximum Supply Voltage 24V
	Minimum Scanning Distance 6m
	Maximum Scanning Distance 8m
	Length 32mm
	Maximum Response Time 13ms
	Height 120mm
	Width 15mm
	Terminal Type M12 Male Connector

Datasheet - C2MT-01224BBC03BE0

COO (Country of Origin):: HU

SICK C2MT Series Light Curtain, 120mm Protective Height, 24V Supply Voltage - C2MT-01224BBC03BE0

This light curtain is a Compact safety sensor designed for machine-guarding applications where a short protective field is required. It operates from a 24V supply and provides an optically synchronised protective beam suitable for standalone use or as the last device in cascaded systems. The unit is intended for industrial environments and integrates with standard safety relays via an M12 system connection.

Features and Benefits:

• 24V supply voltage enables direct connection to standard control systems
• 24mm beam resolution enhances detection of small intrusions
• 6m to 8m scanning distance supports medium-range safeguarding
• ≤13ms response time reduces hazardous exposure duration
• PNP OSSD outputs protect against short-circuit conditions

Applications

• Suitable for safeguarding access to automatic machinery
• Ideal for integration with safety relays and control panels
• Used with conveyor feed and ejection stations for personnel protection
• Can be used for protecting small loading apertures and hatches

What electrical connection is used to Interface with control systems?

It connects via a 5‑pin M12 plug with a 160mm cable tail and hard-wired configuration.

What environmental conditions can it endure during operation?

The enclosure rating is IP65 and it operates between -20°C and +55°C with non‑condensing humidity.

How does the device behave when a fault occurs?

The safe state ensures at least one OSSD is driven to the OFF condition to terminate hazardous outputs.

Which safety performance classifications apply to it?

It conforms to Type 2 under IEC 61496‑1 with SIL1 and PLc designations and an internal test rate of 58/s.
