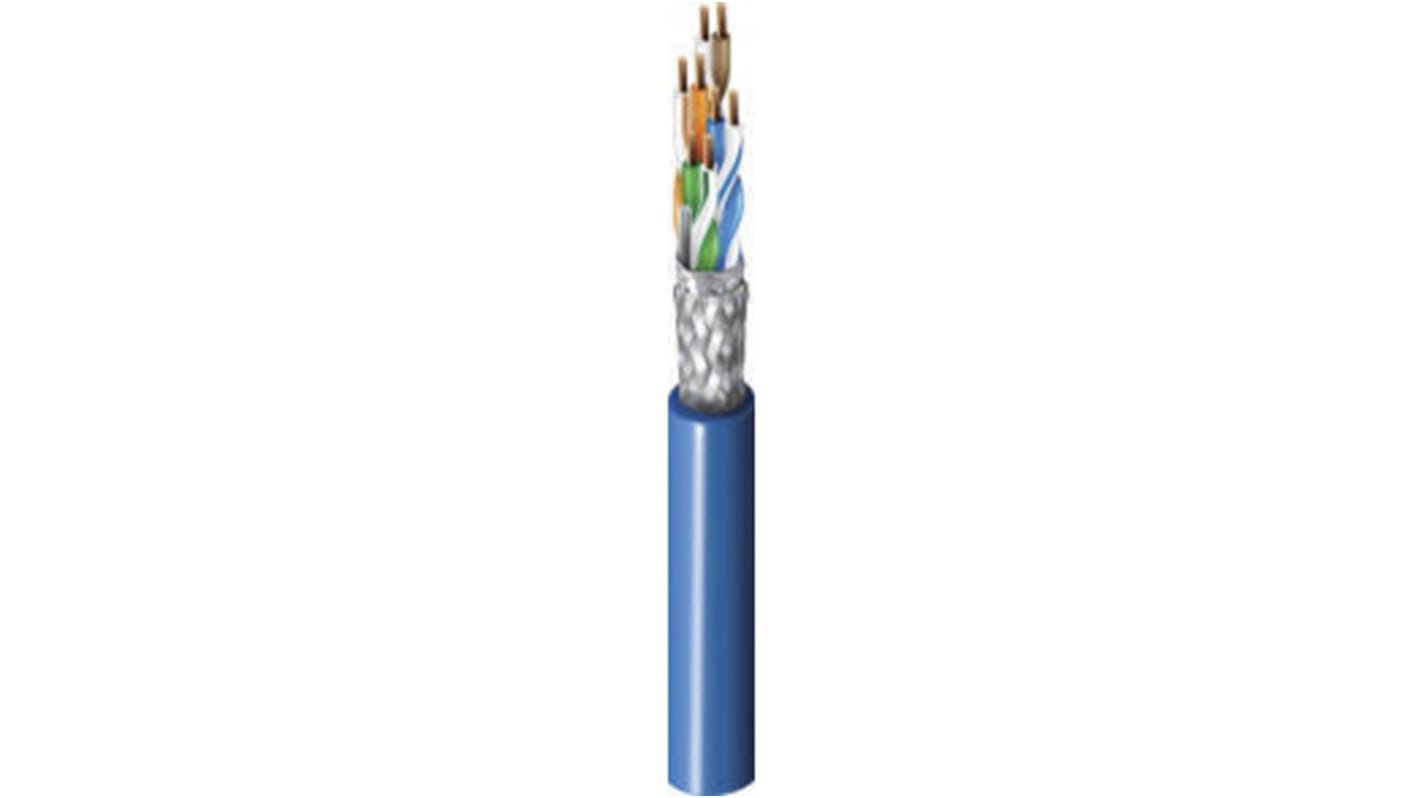

Belden2202ELW, 500m Cat6a, Blue, S/FTP Shielded, Unterminated LSZH Sheath
- RS Stock No.:
- 175-6555
- Mfr. Part No.:
- 2202ELW.00500
- Manufacturer:
- Belden
Subtotal (1 reel of 500 metres)**
MYR6,542.41
2 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Reel(s) | Per Reel | Per Metre** |
|---|---|---|
| 1 + | MYR6,542.41 | MYR13.085 |
**price indicative
- RS Stock No.:
- 175-6555
- Mfr. Part No.:
- 2202ELW.00500
- Manufacturer:
- Belden
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Belden | |
| Series | 2202ELW | |
| Length | 500m | |
| LAN Category | Cat6a | |
| Terminated/Unterminated | Unterminated | |
| Shield Type | S/FTP | |
| Shielded/Unshielded | Shielded | |
| CPR Certification | Cca | |
| Sheath Colour | Blue | |
| Outer Sheath Material | LSZH | |
| Fire Behaviour | Low Smoke Zero Halogen (LSZH) | |
| Current Rating | 1.5 A | |
| Standards Met | ANSI/TIA/EIA 568-B.2-1, EN 50173-1, IEC 60332, ISO/IEC 11801 | |
| Cable Shape | Twisted Pair | |
| Conductor Strand Type | Solid | |
| Number of Strands | 8 | |
| Outer Diameter | 7.5mm | |
| American Wire Gauge | 23 AWG | |
| Capacitance | 1600pF/m | |
| Voltage Rating | 72 V | |
Select all | ||
|---|---|---|
Brand Belden | ||
Series 2202ELW | ||
Length 500m | ||
LAN Category Cat6a | ||
Terminated/Unterminated Unterminated | ||
Shield Type S/FTP | ||
Shielded/Unshielded Shielded | ||
CPR Certification Cca | ||
Sheath Colour Blue | ||
Outer Sheath Material LSZH | ||
Fire Behaviour Low Smoke Zero Halogen (LSZH) | ||
Current Rating 1.5 A | ||
Standards Met ANSI/TIA/EIA 568-B.2-1, EN 50173-1, IEC 60332, ISO/IEC 11801 | ||
Cable Shape Twisted Pair | ||
Conductor Strand Type Solid | ||
Number of Strands 8 | ||
Outer Diameter 7.5mm | ||
American Wire Gauge 23 AWG | ||
Capacitance 1600pF/m | ||
Voltage Rating 72 V | ||
