Select all	Attribute	Value
	Brand	Belden
	Series	2201ENH
	Length	500m
	LAN Category	Cat6a
	Terminated/Unterminated	Unterminated
	Shield Type	F/FTP
	Shielded/Unshielded	Shielded
	CPR Certification	Eca
	Outer Sheath Material	LSZH
	Sheath Colour	Blue
	Fire Behaviour	Low Smoke Zero Halogen (LSZH)
	Number of Strands	8
	Conductor Strand Type	Solid
	Cable Shape	Twisted Pair
	Standards Met	ANSI/TIA/EIA 568-B.2-1, EN 50173-1, IEC 60332, ISO/IEC 11801
	Current Rating	1.5 A
	Voltage Rating	72 V
	American Wire Gauge	23 AWG
	Outer Diameter	7mm
	Capacitance	1600pF/m

	Select all
	Brand Belden
	Series 2201ENH
	Length 500m
	LAN Category Cat6a
	Terminated/Unterminated Unterminated
	Shield Type F/FTP
	Shielded/Unshielded Shielded
	CPR Certification Eca
	Outer Sheath Material LSZH
	Sheath Colour Blue
	Fire Behaviour Low Smoke Zero Halogen (LSZH)
	Number of Strands 8
	Conductor Strand Type Solid
	Cable Shape Twisted Pair
	Standards Met ANSI/TIA/EIA 568-B.2-1, EN 50173-1, IEC 60332, ISO/IEC 11801
	Current Rating 1.5 A
	Voltage Rating 72 V
	American Wire Gauge 23 AWG
	Outer Diameter 7mm
	Capacitance 1600pF/m

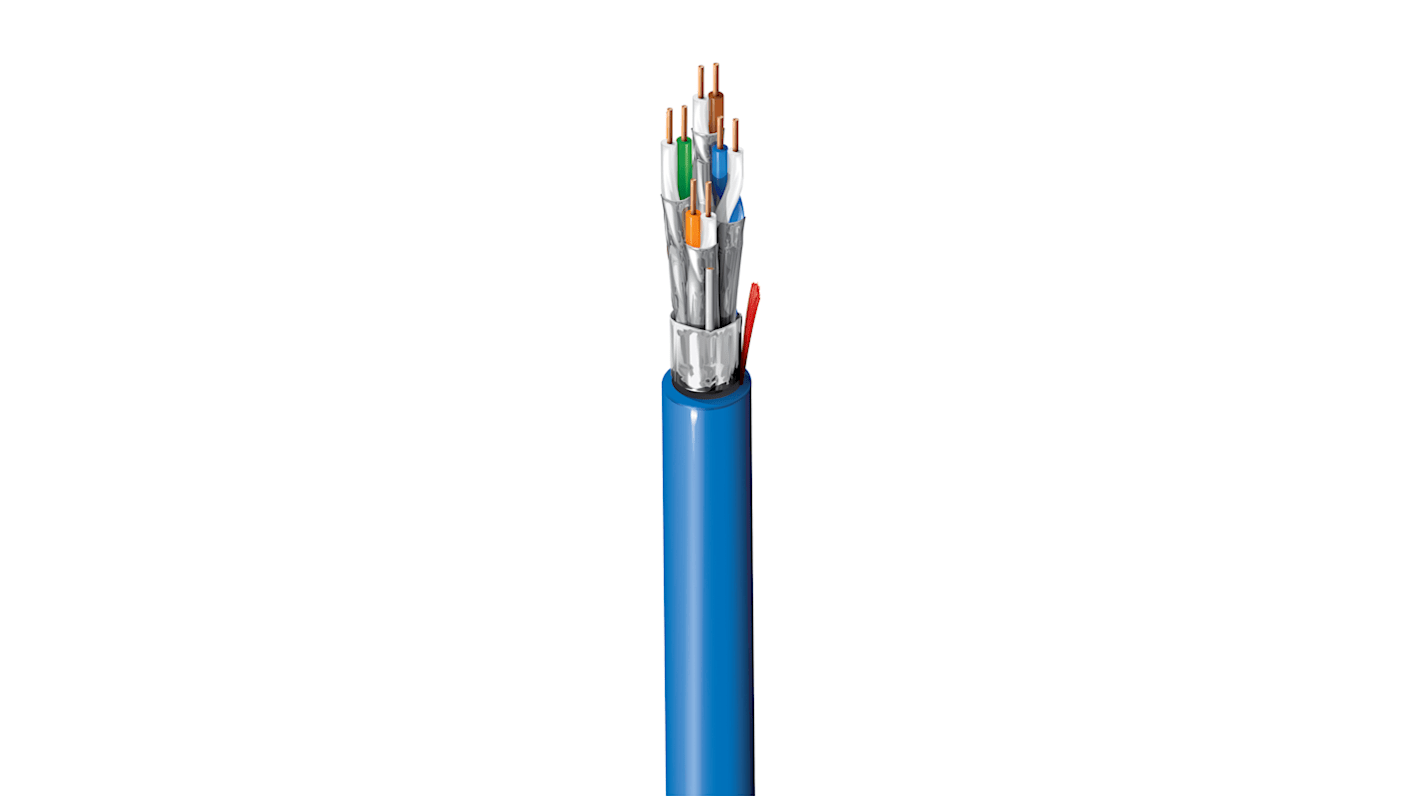

Belden2201ENH, 500m Cat6a, Blue, F/FTP Shielded, Unterminated LSZH Sheath

FREE delivery for orders over MYR500.00

Belden Ethernet Cable, 4 Twisted Pairs, 7mm OD - 2201ENH.00500

Features & Benefits

Applications

Can I attach my own connectors to this cable?
