Belden 2201ELW, 500 m Cat6a Ethernet Cable, Blue, F/FTP Screened Low Smoke Zero Halogen Sheath
- RS Stock No.:
- 175-6551
- Mfr. Part No.:
- 2201ELW.00500
- Manufacturer:
- Belden
Subtotal (1 reel of 500 metres)*
MYR7,290.50
FREE delivery for orders over RM 500.00
Temporarily out of stock
- Shipping from 18 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | MYR7,290.50 | MYR14.581 |
*price indicative
- RS Stock No.:
- 175-6551
- Mfr. Part No.:
- 2201ELW.00500
- Manufacturer:
- Belden
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Belden | |
| Series | 2201ELW | |
| Product Type | Ethernet Cable | |
| LAN Category | Cat6a | |
| Cable Length | 500m | |
| Shield Type | F/FTP | |
| Screened/Unscreened | Screened | |
| Conductor Type | Solid | |
| Jacket Colour | Blue | |
| Jacket Material | Low Smoke Zero Halogen | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 60°C | |
| Fire Behaviour | Low Smoke Zero Halogen (LSZH) | |
| Standards/Approvals | ISO/IEC 11801, ANSI/TIA/EIA 568-B.2-1, IEC 60332, EN 50173-1 | |
| Conductor Material | Copper | |
| Voltage | 72 V | |
| Outside Diameter | 7.9 mm | |
| Select all | ||
|---|---|---|
Brand Belden | ||
Series 2201ELW | ||
Product Type Ethernet Cable | ||
LAN Category Cat6a | ||
Cable Length 500m | ||
Shield Type F/FTP | ||
Screened/Unscreened Screened | ||
Conductor Type Solid | ||
Jacket Colour Blue | ||
Jacket Material Low Smoke Zero Halogen | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 60°C | ||
Fire Behaviour Low Smoke Zero Halogen (LSZH) | ||
Standards/Approvals ISO/IEC 11801, ANSI/TIA/EIA 568-B.2-1, IEC 60332, EN 50173-1 | ||
Conductor Material Copper | ||
Voltage 72 V | ||
Outside Diameter 7.9 mm | ||
- COO (Country of Origin):
- HU

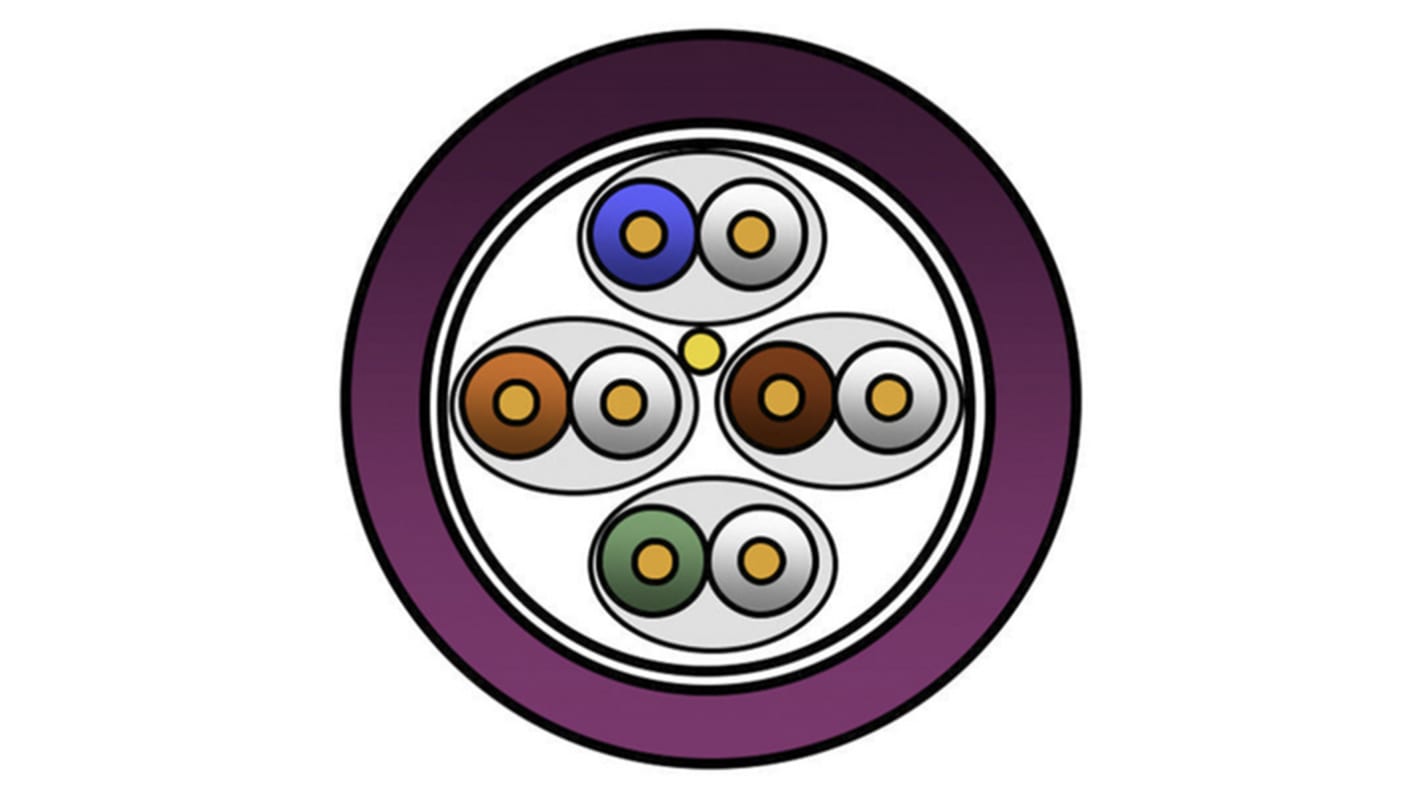

Category 6A (500MHz), 4-Pair, F/FTP shielded, Premise Horizontal Cable, 23 AWG Solid Bare Copper conductors, Foam Polyolefin insulation, each pair with Beldfoil® shield, AWG 26 solid tinned copper drainwire, overall Beldfoil® shield, LSZH jacket
