SEGGER 8.06.13 J-Link Measurement+Patch Adapter Adapter

View this category

Subtotal (1 unit)*

MYR743.52

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
1 +MYR743.52

*price indicative

RS Stock No.:
201-0719
Mfr. Part No.:
8.06.13 J-Link Measurement+Patch Adapter
Manufacturer:
SEGGER
Find similar products by selecting one or more attributes.
Select all

Brand

SEGGER

Accessory Type

Adapter

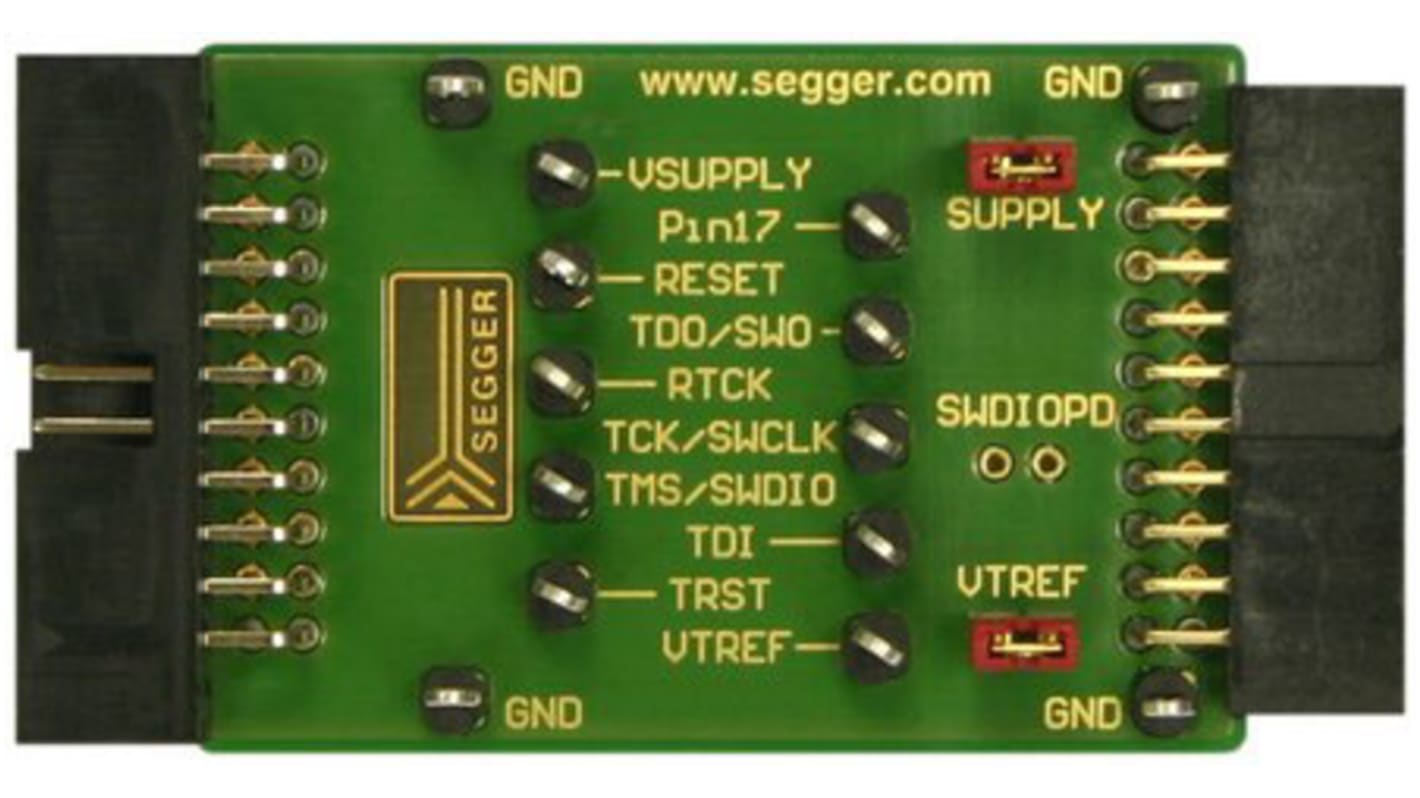

The SEGGER J-Link Measurement+Patch Adapter provides test points for all debug signals to allow easy access for test probes. It has a standard 20-pin 0.1" socket towards the J-Link debug probe and a standard 20-pin 0.1" header on the target side and can directly be inserted between the J-Link and the debug cable maintaining a 1:1 connection of all debug signals. For increased flexibility VTref on pin 1 and the target supply voltage on pin 19 can be interrupted by means of two jumpers.

Allows easy customized wiring between J-Link and targets that do not provide a standard debug connector that has already been addressed by one of the many available J-Link adapters
The wiring between J-Link and the target is done via coloured jumper wires
Includes:
Measurement Adapter Board
10 Jumper Wires for Manual Setup
