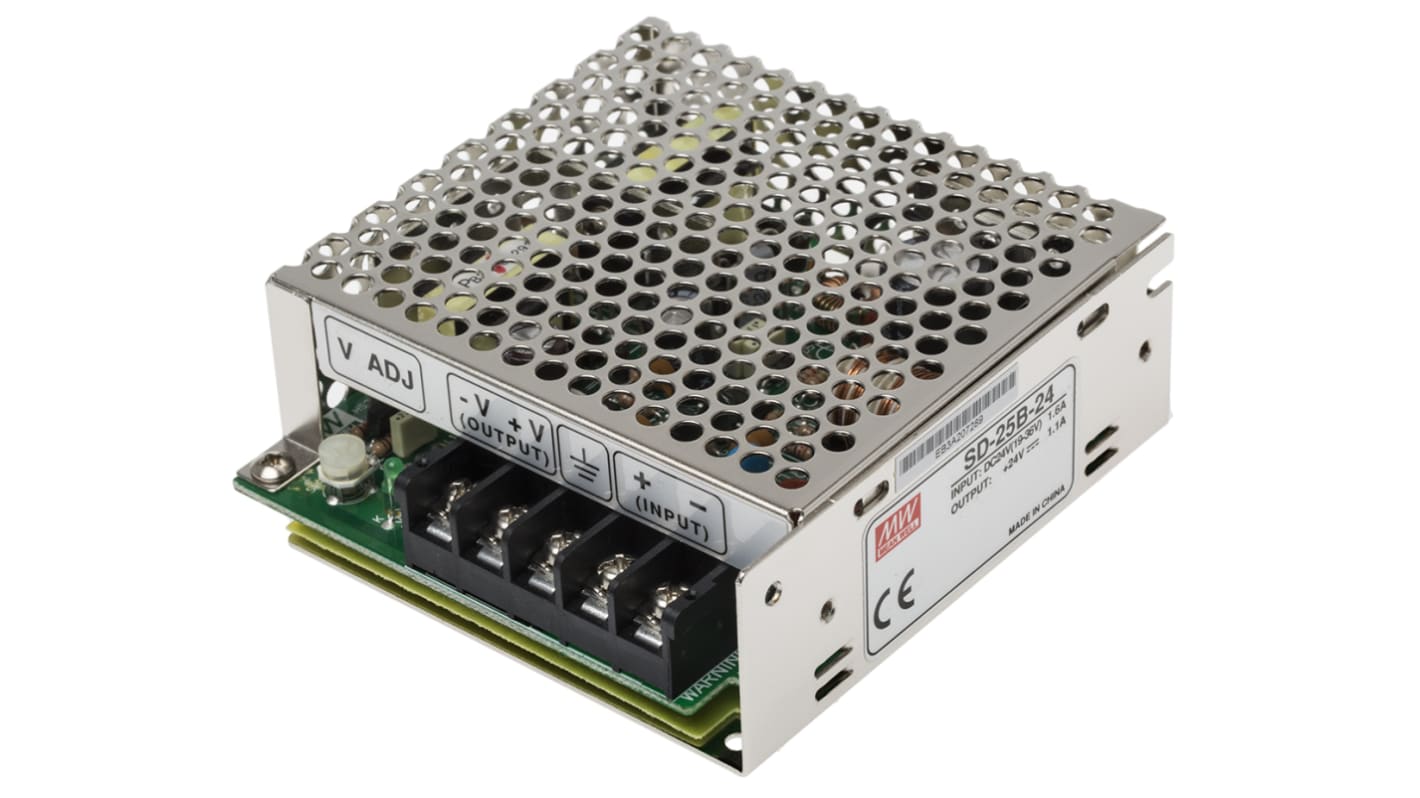

MEAN WELL DC-DC Converter, 24V dc/ 1.1A Output, 19 → 36 V dc Input, 25W, Chassis Mount, +60°C Max Temp -10°C Min
- RS Stock No.:
- 678-3565
- Distrelec Article No.:
- 169-06-051
- Mfr. Part No.:
- SD-25B-24
- Manufacturer:
- MEAN WELL
Bulk discount available
Subtotal (1 unit)**
MYR129.62
167 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit |
|---|---|
| 1 - 4 | MYR129.62 |
| 5 - 9 | MYR127.03 |
| 10 - 24 | MYR124.50 |
| 25 - 124 | MYR122.01 |
| 125 + | MYR119.56 |
**price indicative
- RS Stock No.:
- 678-3565
- Distrelec Article No.:
- 169-06-051
- Mfr. Part No.:
- SD-25B-24
- Manufacturer:
- MEAN WELL
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MEAN WELL | |
| Output Voltage | 24V dc | |
| Input Voltage Range | 19 → 36 V dc | |
| Power Rating | 25W | |
| Input Voltage Nominal | 24 V dc | |
| Output Current | 1.1A | |
| Mounting Type | Chassis Mount | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Output Voltage Adjustment Range | 23 → 30V | |
| Isolation Voltage | 1.5kV ac | |
| Depth | 36mm | |
| Length | 99mm | |
| Width | 97mm | |
| Load Regulation | ±0.2% | |
| Maximum Temperature | +60°C | |
| Standards Met | 3, 4, 5, 6, 8, EN 55022 (CISPR22) Class B, EN 61000-4-2, ENV 50204, Heavy Industry Level Criteria A | |
| Efficiency | 78% | |
| Minimum Temperature | -10°C | |
Select all | ||
|---|---|---|
Brand MEAN WELL | ||
Output Voltage 24V dc | ||
Input Voltage Range 19 → 36 V dc | ||
Power Rating 25W | ||
Input Voltage Nominal 24 V dc | ||
Output Current 1.1A | ||
Mounting Type Chassis Mount | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Output Voltage Adjustment Range 23 → 30V | ||
Isolation Voltage 1.5kV ac | ||
Depth 36mm | ||
Length 99mm | ||
Width 97mm | ||
Load Regulation ±0.2% | ||
Maximum Temperature +60°C | ||
Standards Met 3, 4, 5, 6, 8, EN 55022 (CISPR22) Class B, EN 61000-4-2, ENV 50204, Heavy Industry Level Criteria A | ||
Efficiency 78% | ||
Minimum Temperature -10°C | ||
