Select all	Attribute	Value
	Brand	TRACOPOWER
	Output Voltage	5V dc
	Input Voltage Range	9 → 36 V dc
	Power Rating	20W
	Input Voltage Nominal	24 V dc
	Output Current	4A
	Mounting Type	PCB
	Isolated	Yes
	Number of Outputs	1
	Output Voltage Adjustment Range	4.5 → 5.5V dc
	Package	2 x 1 in
	Isolation Voltage	3kV dc
	Width	25.4mm
	Length	50.8mm
	Depth	11mm
	Railway Approved	No
	Series	THR 20WI
	Load Regulation	0.5%
	Standards Met	EN 62368-1
	Efficiency	87%
	Maximum Temperature	'+80°C
	Medical Approved	No
	Minimum Temperature	-40°C

	Select all
	Brand TRACOPOWER
	Output Voltage 5V dc
	Input Voltage Range 9 → 36 V dc
	Power Rating 20W
	Input Voltage Nominal 24 V dc
	Output Current 4A
	Mounting Type PCB
	Isolated Yes
	Number of Outputs 1
	Output Voltage Adjustment Range 4.5 → 5.5V dc
	Package 2 x 1 in
	Isolation Voltage 3kV dc
	Width 25.4mm
	Length 50.8mm
	Depth 11mm
	Railway Approved No
	Series THR 20WI
	Load Regulation 0.5%
	Standards Met EN 62368-1
	Efficiency 87%
	Maximum Temperature '+80°C
	Medical Approved No
	Minimum Temperature -40°C

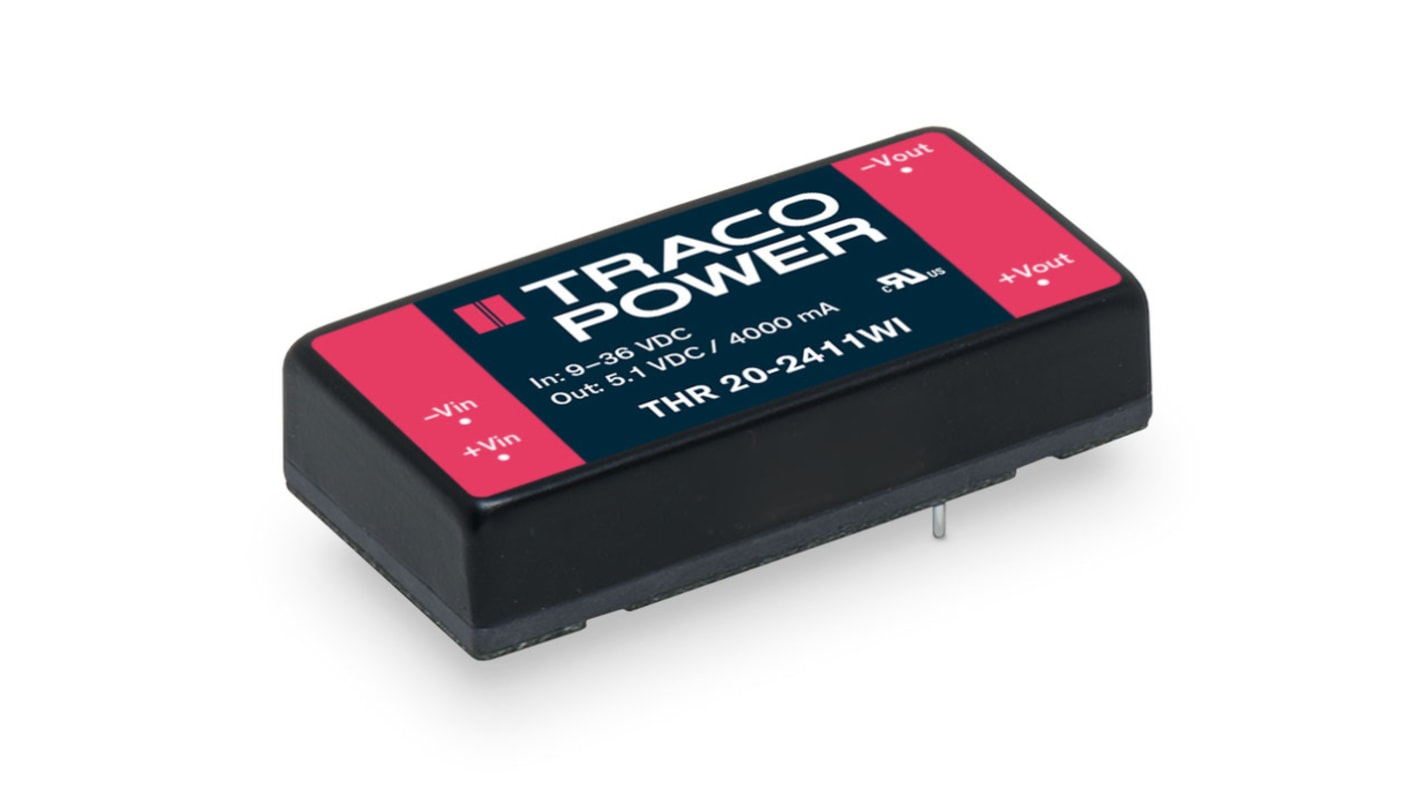

TRACOPOWER THR 20WI Isolated DC-DC Converter, 5V dc/ 4A Output, 9 → 36 V dc Input, 20W, PCB, '+80°C Max Temp

FREE delivery for orders over MYR500.00

TRACOPOWER THR 20WI Series Isolated DC-DC Converter, 9 to 36V DC Input Voltage Range, 20W - THR 20-2411WI

Features & Benefits

Applications

Can it operate efficiently in extreme temperatures?

Is it safe for sensitive equipment?

Does it meet specific industry standards?
