Units	Per Unit
1 - 4	MYR793.79
5 - 9	MYR777.90
10 - 24	MYR762.35
25 - 49	MYR747.10
50 +	MYR732.16

Select all	Attribute	Value
	Brand	TRACOPOWER
	Output Voltage	15V dc
	Input Voltage Range	9.5 → 36 V dc
	Power Rating	40W
	Input Voltage Nominal	24 V dc
	Output Current	2.67A
	Mounting Type	Chassis Mount
	Isolated	Yes
	Number of Outputs	1
	Isolation Voltage	3kV dc
	Depth	26.1mm
	Width	57.2mm
	Length	103mm
	Railway Approved	Yes
	Series	TEQ 40WIR
	Load Regulation	0.01
	Standards Met	EN 50155, EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61373, IEC/EN 60950-1, MIL-HDBK-217F, MIL-STD-810F, UL 60950-1
	Minimum Temperature	-40°C
	Maximum Temperature	+83 °C, +92°C

	Select all
	Brand TRACOPOWER
	Output Voltage 15V dc
	Input Voltage Range 9.5 → 36 V dc
	Power Rating 40W
	Input Voltage Nominal 24 V dc
	Output Current 2.67A
	Mounting Type Chassis Mount
	Isolated Yes
	Number of Outputs 1
	Isolation Voltage 3kV dc
	Depth 26.1mm
	Width 57.2mm
	Length 103mm
	Railway Approved Yes
	Series TEQ 40WIR
	Load Regulation 0.01
	Standards Met EN 50155, EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61373, IEC/EN 60950-1, MIL-HDBK-217F, MIL-STD-810F, UL 60950-1
	Minimum Temperature -40°C
	Maximum Temperature +83 °C, +92°C

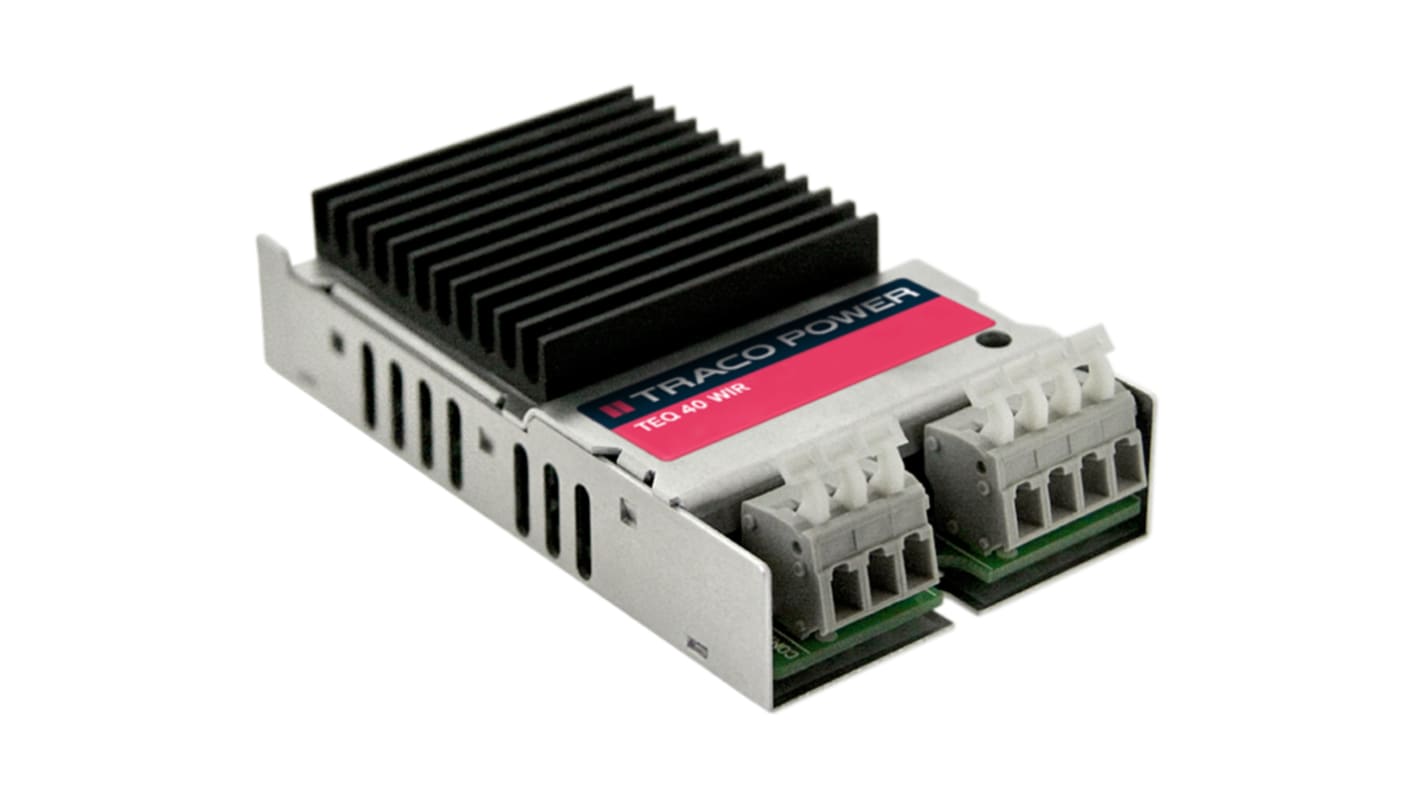

TRACOPOWER TEQ 40WIR DC-DC Converter, 15V dc/ 2.67A Output, 9.5 → 36 V dc Input, 40W, Chassis Mount, +83°C Max

FREE delivery for orders over MYR500.00

Traco - TEQ Series 40 W Isolated DC-DC Converters

Features and Benefits

Related links
