MPN

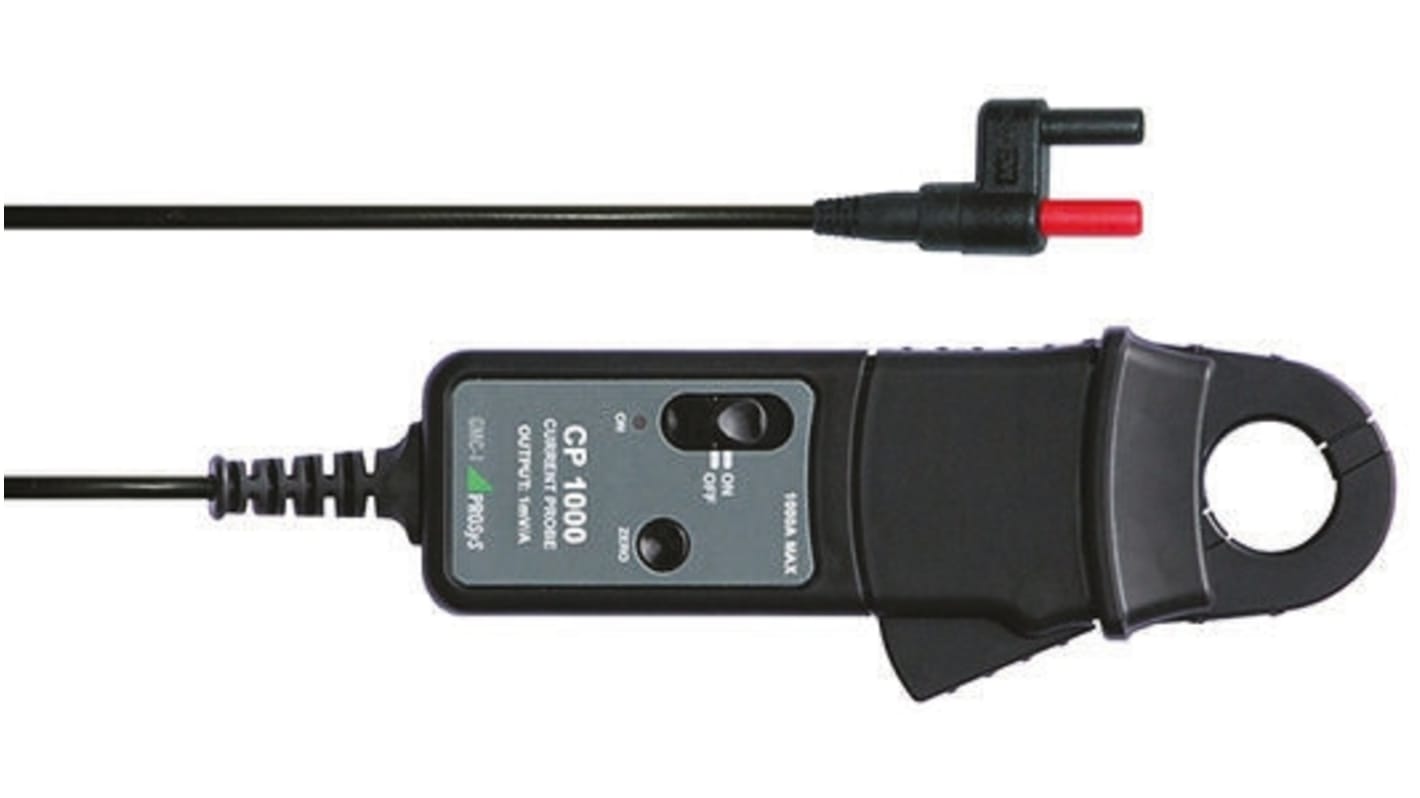

GMC-I Prosys Current Clamp, 1000 A DC Max, AC/DC Adapter, 1 kA ac AC Max, Current Output

RS Stock No.:: 705-1910
Mfr. Part No.:: CP1000
Manufacturer:: GMC-I Prosys

GMC-I Prosys Current Clamp, 1000 A DC Max, AC/DC Adapter, 1 kA ac AC Max, Current Output

Subtotal (1 unit)*

MYR2,039.46

Stock information currently inaccessible - Please check back later

Units	Per Unit
1 +	MYR2,039.46

*price indicative

RS Stock No.:: 705-1910
Mfr. Part No.:: CP1000
Manufacturer:: GMC-I Prosys

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	GMC-I Prosys
	Adapter Type	AC/DC
	Product Type	Current Clamp
	Maximum DC Current	1000A
	Maximum AC Current	1kA ac
	Accuracy	±1 % + 0.5 A
	Maximum Conductor Size	32mm
	Cable Length	1.5m
	Output Type	Current
	Connector Type	4 mm Plug
	Battery Life	50h
	Minimum Operating Temperature	0°C
	Maximum Operating Temperature	50°C
	Standards/Approvals	No
	Safety Category Level	CAT III
	Safety Category Voltage	300V

	Select all
	Brand GMC-I Prosys
	Adapter Type AC/DC
	Product Type Current Clamp
	Maximum DC Current 1000A
	Maximum AC Current 1kA ac
	Accuracy ±1 % + 0.5 A
	Maximum Conductor Size 32mm
	Cable Length 1.5m
	Output Type Current
	Connector Type 4 mm Plug
	Battery Life 50h
	Minimum Operating Temperature 0°C
	Maximum Operating Temperature 50°C
	Standards/Approvals No
	Safety Category Level CAT III
	Safety Category Voltage 300V

CP1 Series AC/DC 1000A ac/dc Current Probes

1000A ac/dc measurement range

Simple push button auto zero

Auto power off conserves battery life

High external field rejection

Excellent accuracy over full range

EN61010 Safety Rating CAT III 300V

Supplied with

1 x PP3 9V alkaline battery & instructions

GMC-I Prosys Current Clamp, 1000 A DC Max, AC/DC Adapter, 1 kA ac AC Max, Current Output

CP1 Series AC/DC 1000A ac/dc Current Probes

Supplied with
