Hirose FX15 Series Male Crimp Terminal, 32 AWG Min Crimp, 30 AWG Max
- RS Stock No.:
- 719-3531
- Mfr. Part No.:
- FX15-3032PCFB
- Manufacturer:
- Hirose

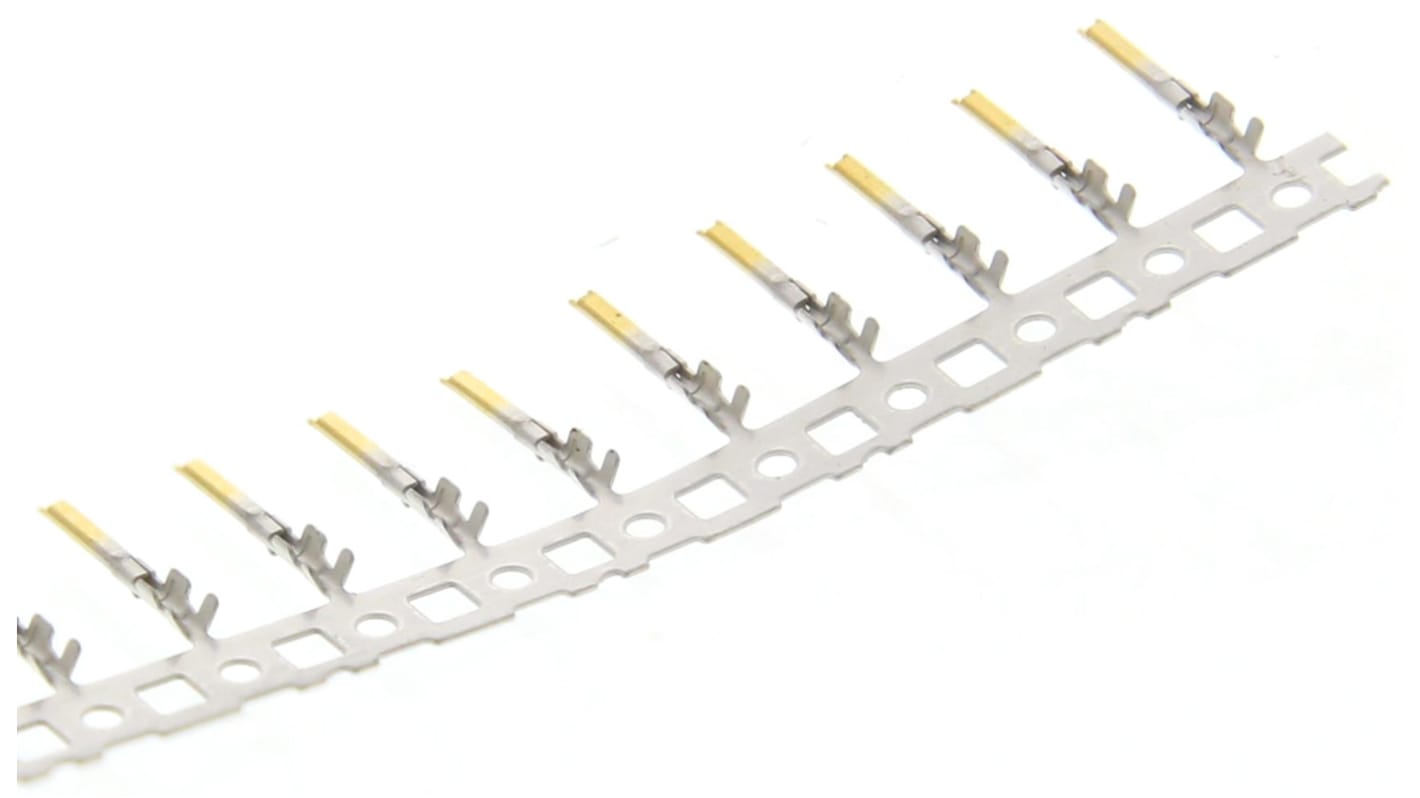

This image is representative of the product range
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 100 units)*
MYR23.10
Stock information currently inaccessible - Please check back later
Units | Per Unit | Per Pack* |
|---|---|---|
| 100 - 900 | MYR0.231 | MYR23.10 |
| 1000 - 2900 | MYR0.227 | MYR22.70 |
| 3000 - 7400 | MYR0.22 | MYR22.00 |
| 7500 - 14900 | MYR0.213 | MYR21.30 |
| 15000 + | MYR0.206 | MYR20.60 |
*price indicative
- RS Stock No.:
- 719-3531
- Mfr. Part No.:
- FX15-3032PCFB
- Manufacturer:
- Hirose
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hirose | |
| Gender | Male | |
| Product Type | Crimp Terminal | |
| For Use With | FX15 Connector Housing | |
| Series | FX15 | |
| Current | 500mA | |
| Contact Plating | Gold | |
| Minimum Wire Size AWG | 32AWG | |
| Contact Material | Phosphor Bronze | |
| Maximum Wire Size AWG | 30AWG | |
| Maximum Wire Size mm² | 0.05mm² | |
| Maximum Contact Resistance | 60mΩ | |
| Termination Type | Crimp | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Hirose | ||
Gender Male | ||
Product Type Crimp Terminal | ||
For Use With FX15 Connector Housing | ||
Series FX15 | ||
Current 500mA | ||
Contact Plating Gold | ||
Minimum Wire Size AWG 32AWG | ||
Contact Material Phosphor Bronze | ||
Maximum Wire Size AWG 30AWG | ||
Maximum Wire Size mm² 0.05mm² | ||
Maximum Contact Resistance 60mΩ | ||
Termination Type Crimp | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- MY
Plug crimp contacts
Applicable wire size AWG32-30
1.0mm Wire to Board - FX15 Series
FX15 Series Connectors supporting LVDS signal
