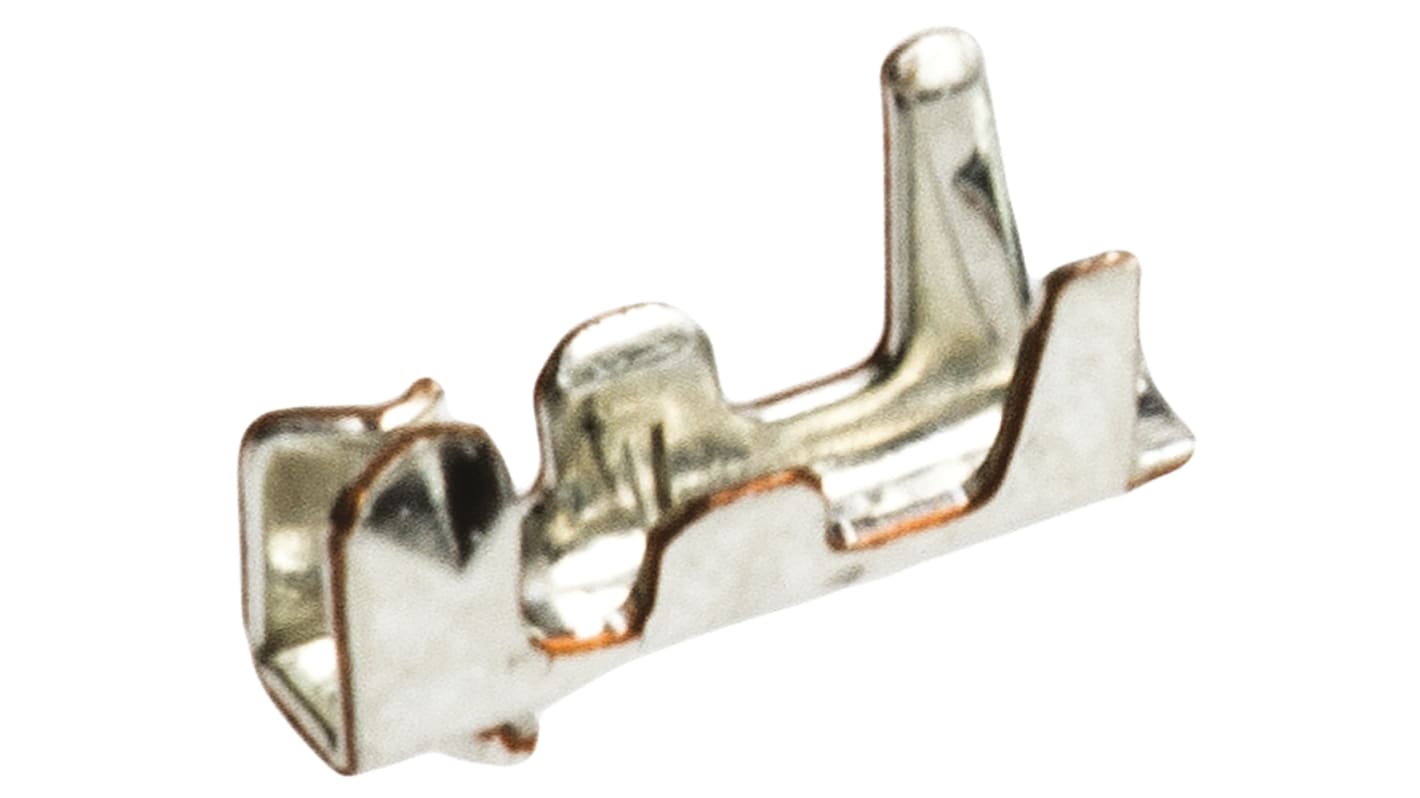

Molex PicoBlade Series Female Crimp Terminal, 32AWG Min, 28AWG Max

Crimp pin and receptacle contacts for use in PicoBlade receptacle and plug housings. (apart from stock number 720-6094 which is for use in Pico-Gold receptacle housing). These PicoBlade crimp contacts feature a two-point contact design which provides a reliable electrical connection in low current, low voltage and high vibration conditions. The contacts are tin plated and are available for use with wire size ranges of 26 AWG to 28 AWG and 28 AWG to 32 AWG.

Use this crimp terminal from Molex to securely join wires to your PCBs (printed circuit boards). It features a two-point contact design for wiring. This increases conductivity, delivers more reliable electrical connections and creates a more secure hold for good vibration resistance. The terminal is compatible with the Molex PicoBlade series of plug and receptacle housings, making it simple to set up a complete wiring system. It also accepts wire sizes of 32 to 28AWG (American Wire Gauge), so it's suitable for a range of applications. This product is an ideal choice for low-current, low-voltage machinery subjected to frequent jolts and vibrations.

• Tin-plated phosphor bronze contacts for high conductivity and resistance to oxidation, ensuring long-lasting performance
• Maximum voltage rating of 125V for compatibility with a range of electrical applications
• Broad operating temperature range of -40°C to +85°C for use in demanding industrial environments

• Telecommunications
• Prototyping
• Household appliances

This terminal will last for up to 30 mating cycles, so you can rely on it for a long product life.

1.25mm Wire to Board - Molex PicoBlade™
